DWORD_AS_WORD: Splitting the Double Word into Two Words



DWORD_AS_WORD Function Block

Pin Diagram

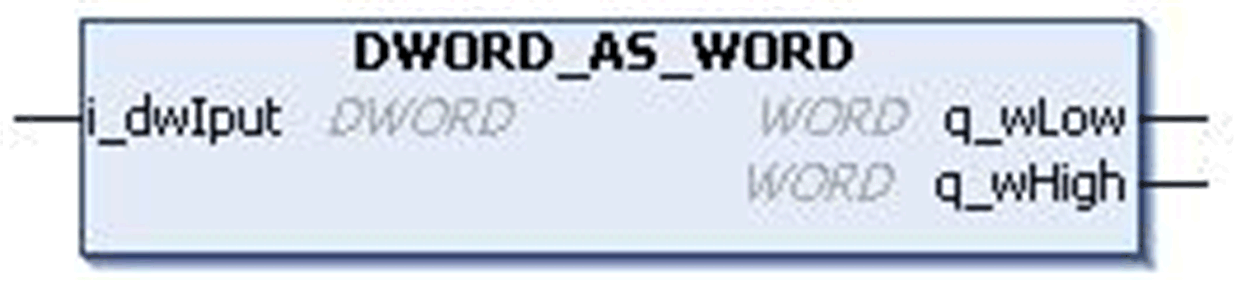

This figure shows the pin diagram of the DWORD_AS_WORD function block:





Functional Description

The DWORD_AS_WORD function block converts an input value of data type DWORD to lower and higher outputs of type WORD.

The input double word i_dwIput is split into two words, higher q_wHigh and lower q_wLow words.

Input Pin Description

This table describes the input pins of the DWORD_AS_WORD function block:

Output Pin Description

This table describes the output pins of the DWORD_AS_WORD function block:
