FB_PI_PID Function Block

Pin Diagram

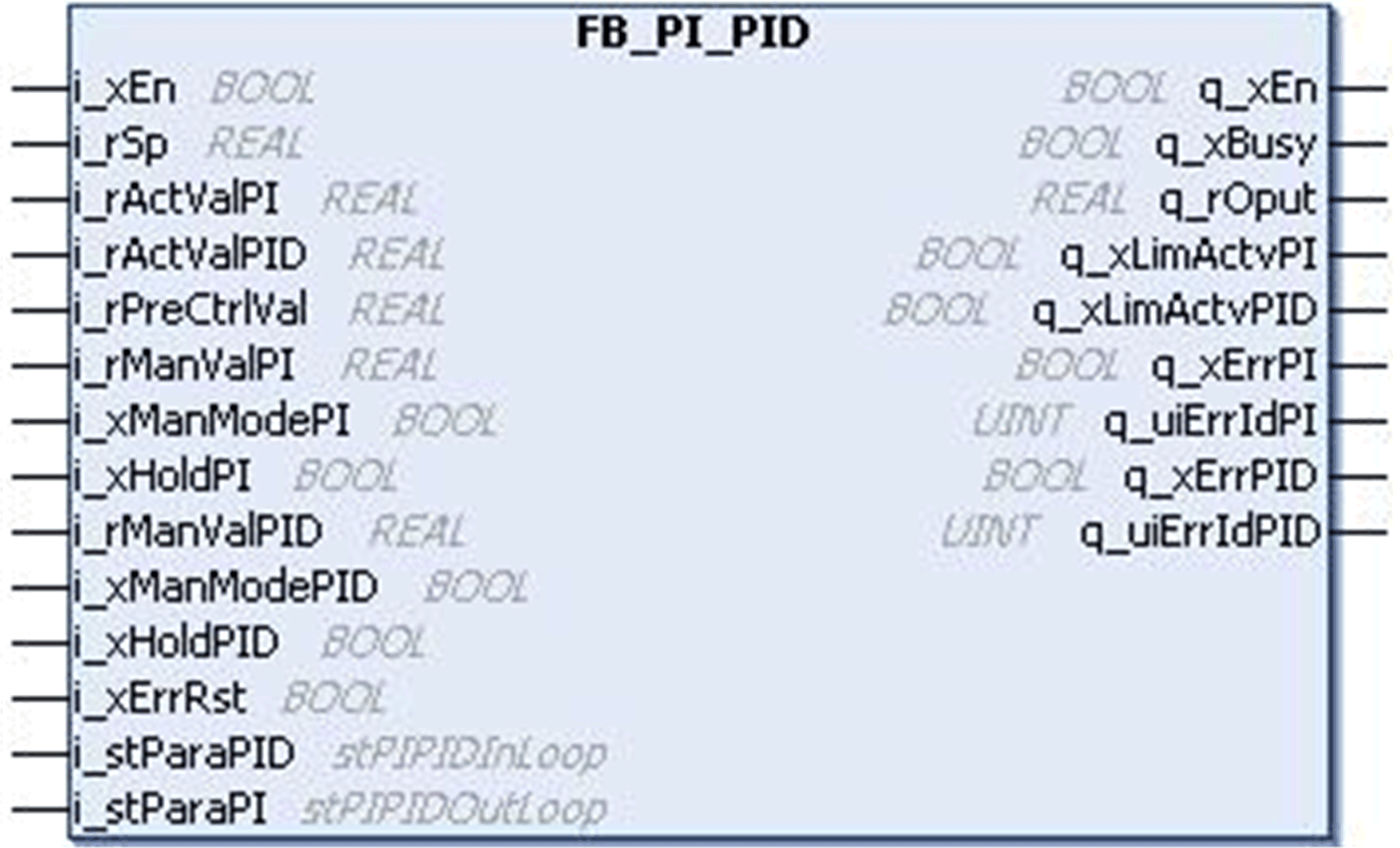

This figure shows the pin diagram of the FB_PI_PID function block:

Functional Description

The FB_PI_PID function block provides a cascaded operation of FB_PI, FB_Limiter and FB_PID.

This function block consists of a PI, a control limiter, and a PID element.
