Normalizer_With_Limiter: Scaling the Minimum and Maximum Input

Normalizer_With_Limiter Function Block

Pin Diagram

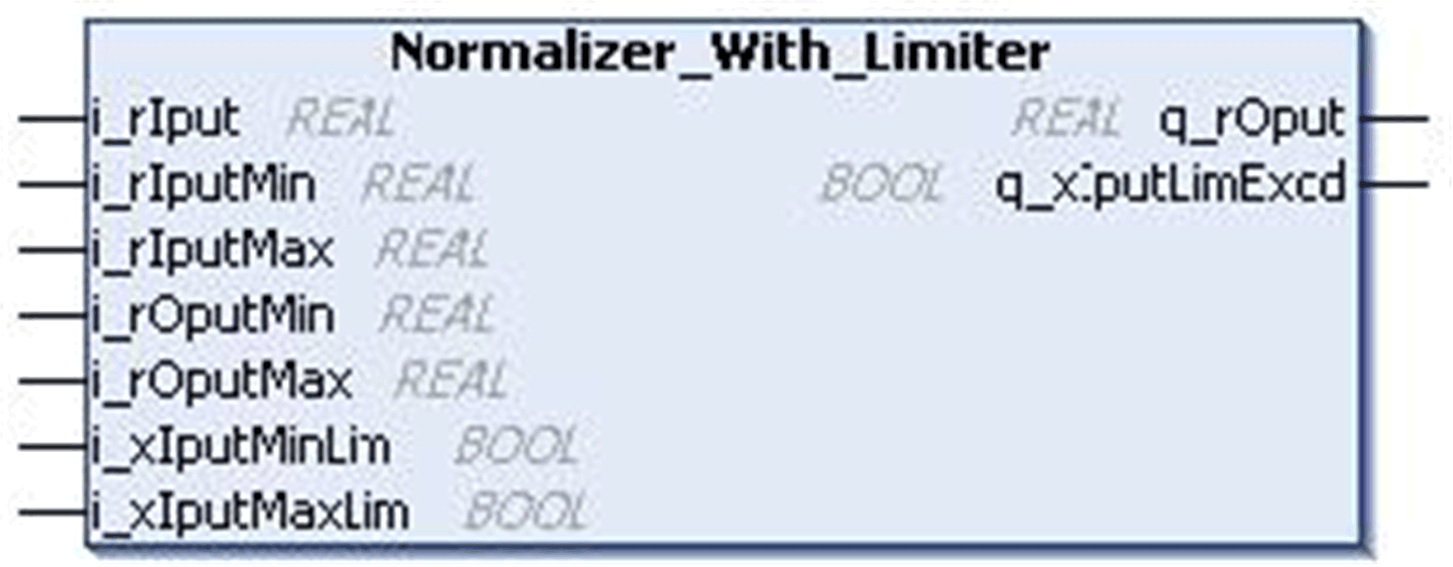

This figure shows the pin diagram of the Normalizer_With_Limiter function block:

Functional Description

The Normalizer_With_Limiter function block scales the minimum and maximum input value to the range of minimum and maximum output value. The input value can be limited to minimum and maximum output values.

The output value can be limited to minimum and maximum output values using i_xIputMinLim and i_xIputMaxLim.

When the input exceeds the maximum/minimum input limit value q_xIputLimExcd will be TRUE.

Mathematical Backround

Example

i_xIputMaxLim	i_xIputMinLim	i_rIput	q_rOput	q_xIputLimExcd
FALSE	FALSE	12.5	3072	TRUE
TRUE	FALSE	12.5	2048	TRUE
TRUE	FALSE	10	2048	FALSE
TRUE	FALSE	7.5	1024	FALSE
TRUE	TRUE	5	0	FALSE
FALSE	TRUE	2.5	-1024	FALSE
FALSE	TRUE	0	-2048	FALSE
FALSE	TRUE	-2.5	-2048	TRUE
FALSE	FALSE	-2.5	-3072	TRUE

Input Pin Description

This table describes the input pins of the Normalizer_With_Limiter function block:

Input	Data Type	Description
i_rIput	REAL	Input value Range: ±3.4e⁺³⁸
i_rIputMin	REAL	Minimum input Range: ±3.4e⁺³⁸
i_rIputMax	REAL	Maximum input value Range: ±3.4e⁺³⁸
i_rOputMin	REAL	Minimum output value Range: ±3.4e⁺³⁸
i_rOputMax	REAL	Maximum output value Range: ±3.4e⁺³⁸
i_xIputMinLim	BOOL	TRUE: Limit enabled for minimum input value FALSE:Limit disabled
i_xIputMaxLim	BOOL	TRUE: Limit enabled for maximum input value FALSE:Limit disabled

Output Pin Description

This table describes the output pins of the Normalizer_With_Limiter function block:

Output	Data Type	Description
q_rOput	REAL	Scale output value Range: ±3.4e⁺³⁸
q_xIputLimExcd	BOOL	Input value exceed limit value

Output

Data Type

Description

q_rOput

REAL

Scale output value

Range: ±3.4e⁺³⁸

q_xIputLimExcd

BOOL

Input value exceed limit value
