WORD_AS_DWORD: Shifting Higher Word and Adding Lower Word

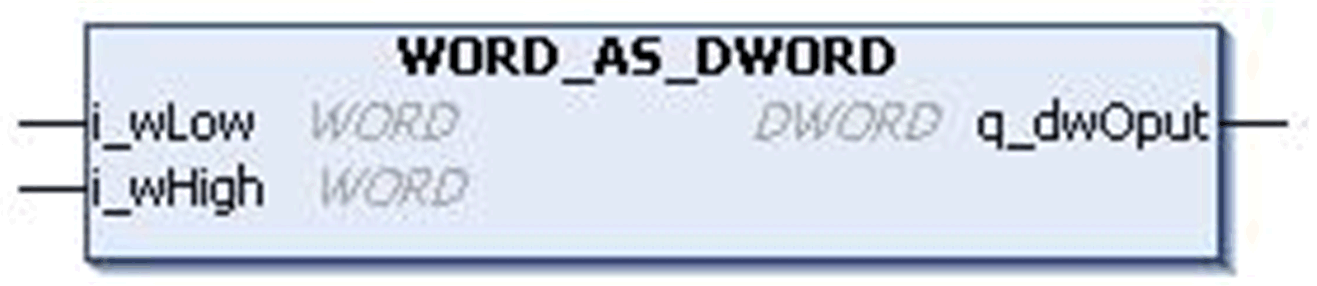

This figure shows the pin diagram of the WORD_AS_DWORD function block:
The WORD_AS_DWORD function block merges two input values of data type WORD into a single output of type DWORD.
The higher word input i_wHigh is shifted to the left by 4 nibbles and adds the lower word input i_wLow to obtain a Dword output q_dwOput.
This table describes the input pins of the WORD_AS_DWORD function block:
|
Input |
Data Type |
Description |
|---|---|---|
|
i_wLow |
WORD |
Lower word input value Range: 0...65535 |
|
i_wHigh |
WORD |
Higher word input value Range: 0...65535 |
This table describes the output pins of the WORD_AS_DWORD function block:
|
Output |
Data Type |
Description |
|---|---|---|
|
q_dwOput |
DWORD |
Output Dword value Range: 0...4294967295 |
