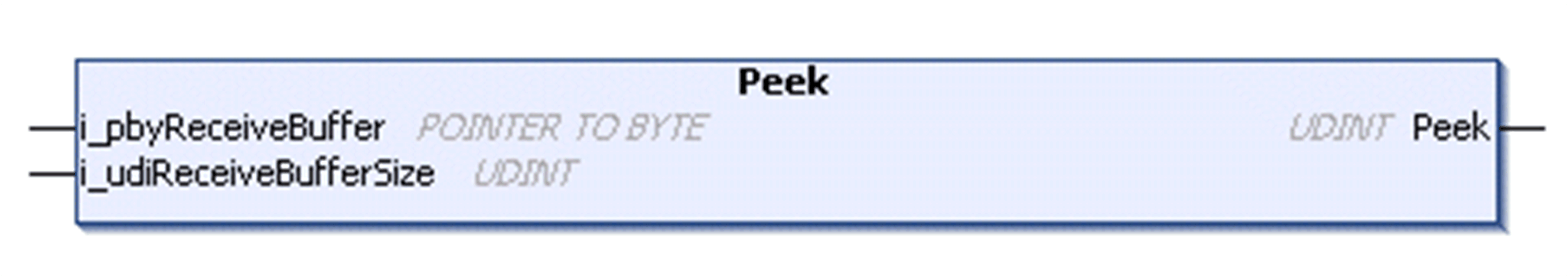

Read data stored in the receive buffer without removing it.
Reads data stored in the receive buffer without removing it from there after it has been read.
The Peek method can be used if a certain amount of data needs to be available to be processed correctly and the amount can be determined from parts of the data (a length field for example). In that case, the data can be copied to the application in one call of the Receive method.
The UDINT return value indicates the number of bytes written to the application-provided buffer.
Considerations for Connections Using TLS
The behavior of the methods Peek and Receive might be different for the different connections with TLS and without. Especially when large data packets are exchanged. When executing the methods on a connection using TLS, it might be required that several method calls must be executed until all data are copied or moved to the application buffer. In every case before processing the data, verify the amount of data which was copied or moved and whether the data are complete.
|
Input |
Data type |
Valid range |
Description |
|---|---|---|---|
|
i_pbyReceiveBuffer |
POINTER TO BYTE |
- |
Start address of the buffer to write the received data to. |
|
i_udiReceiveBufferSize |
UDINT |
1 ... 2147483647 |
Number of bytes to be read. NOTE: The value must not be greater than the size of the buffer. |
NOTE: To prevent access violation caused by invalid pointer access (out of bounds) to the memory, use the arithmetic operator SIZEOF in conjunction with the targeted buffer to determine the value for i_udiReceiveBufferSize.
oFB_TCPClient/FB_TCPClient2
