XBT GK2000 Series Dimensions

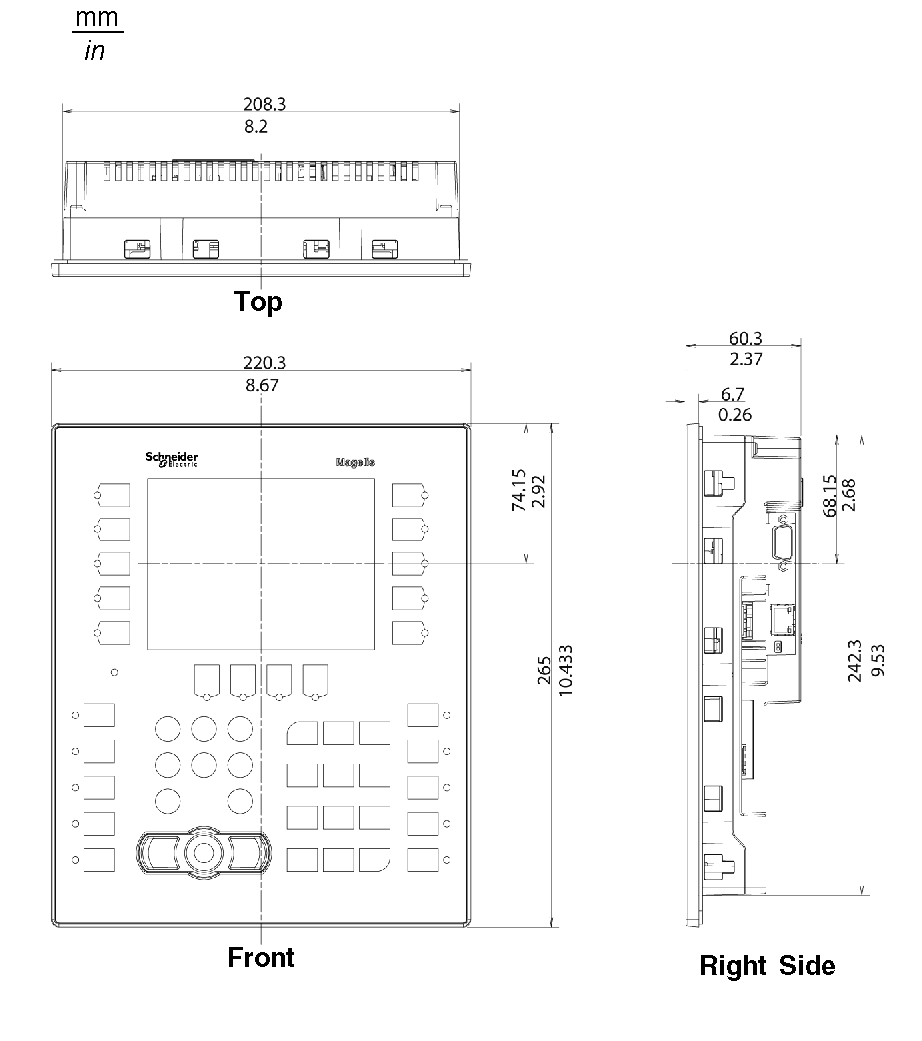

The following illustrations show dimensions for the XBT GK2120 and 2330 keypad panels.

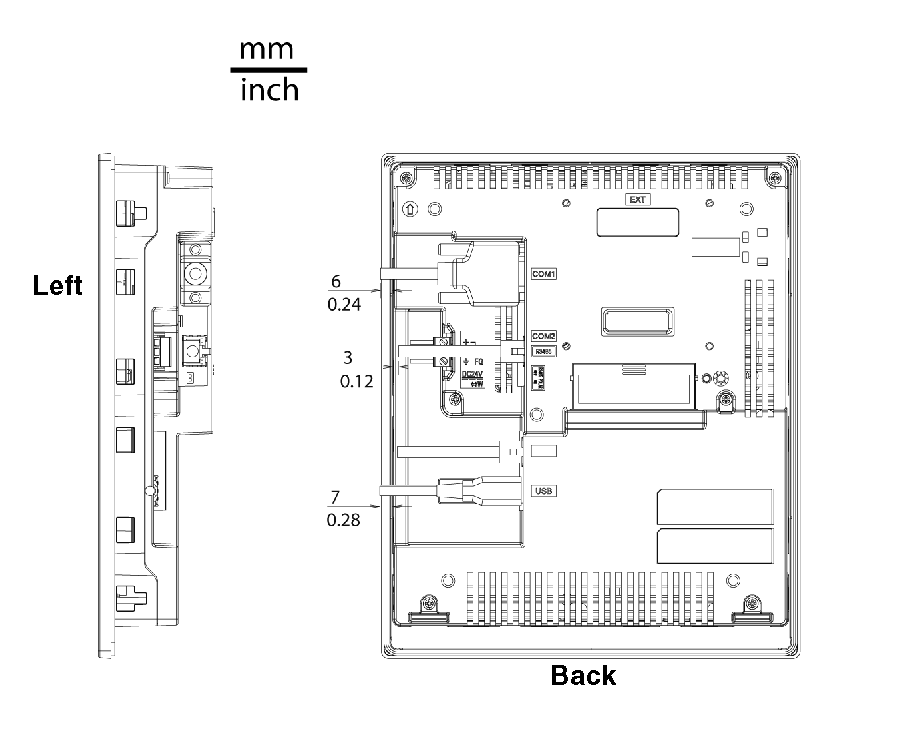

Dimensions with Cables






NOTE: The XBT GK2120 does not support Ethernet.

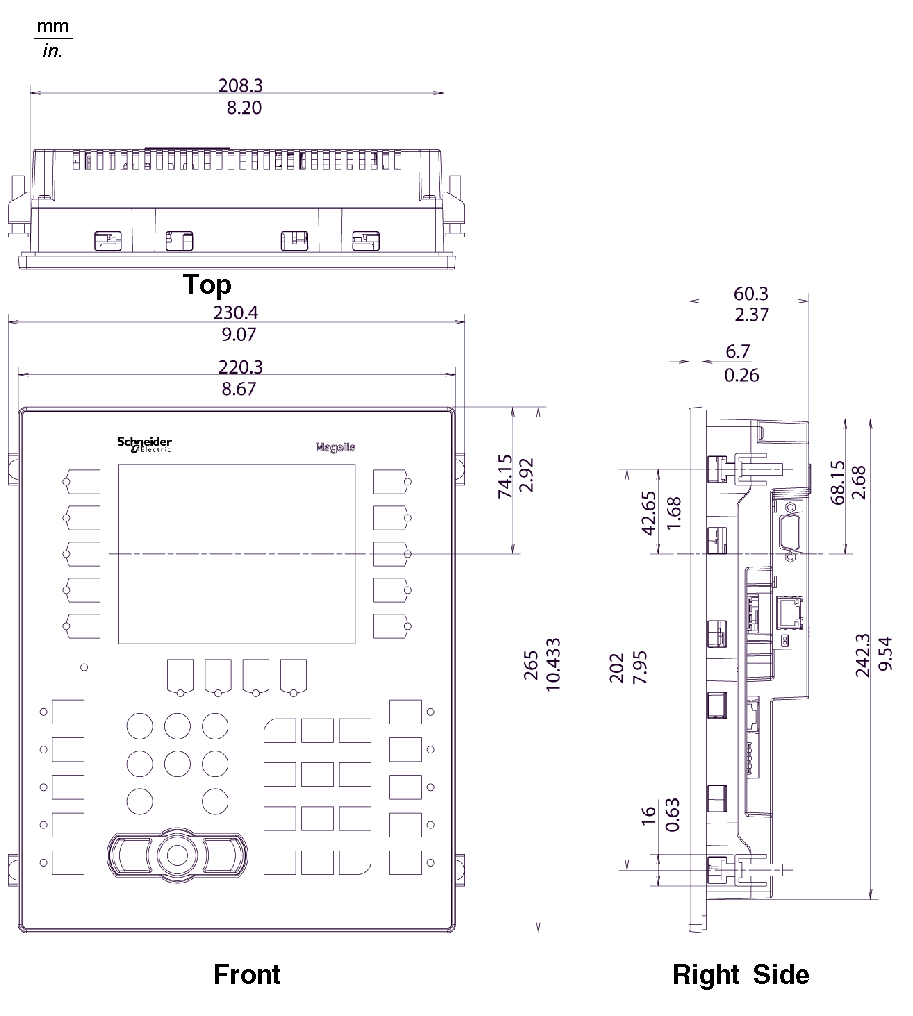

Installation with Spring Clips

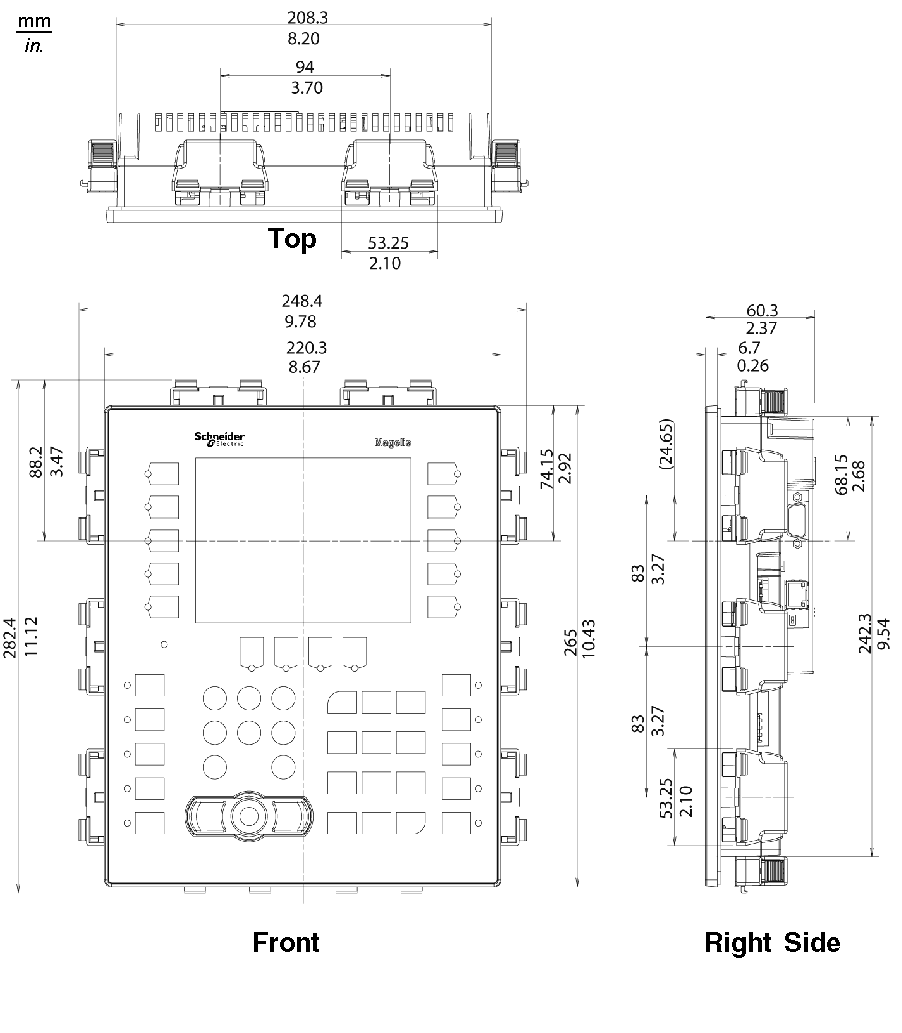

Installation with Screw Fasteners






NOTE: XBT ZGFIX screw installation fasteners must be ordered separately.
