System Design

Introduction

The following diagrams represent the main selection of equipment connectable to the units.

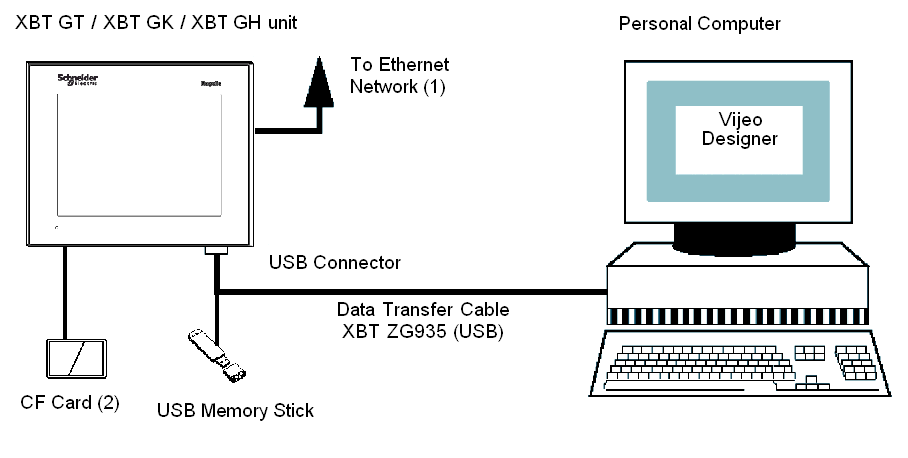

XBT GT1005/2000/4000/5000/6000/7000 Series, XBT GK2000/5000, and XBT GH Series Edit Mode Peripherals

(1) Not available on XBT GT1105/2110/2120/2220 and XBT GK2120

(2) Not available on XBT GT1105/1135/1335/2110

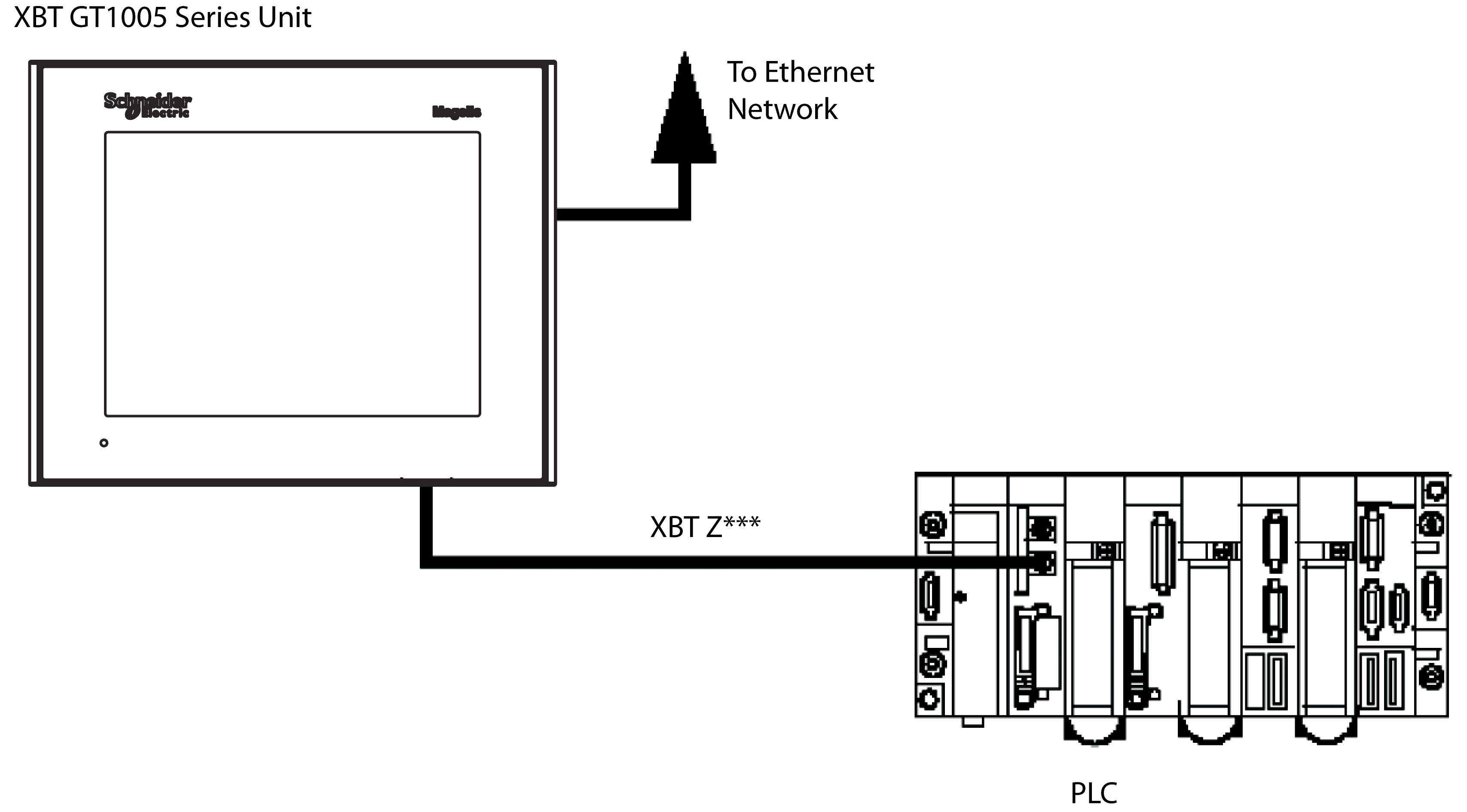

XBT GT1005 Series Run Mode Peripherals

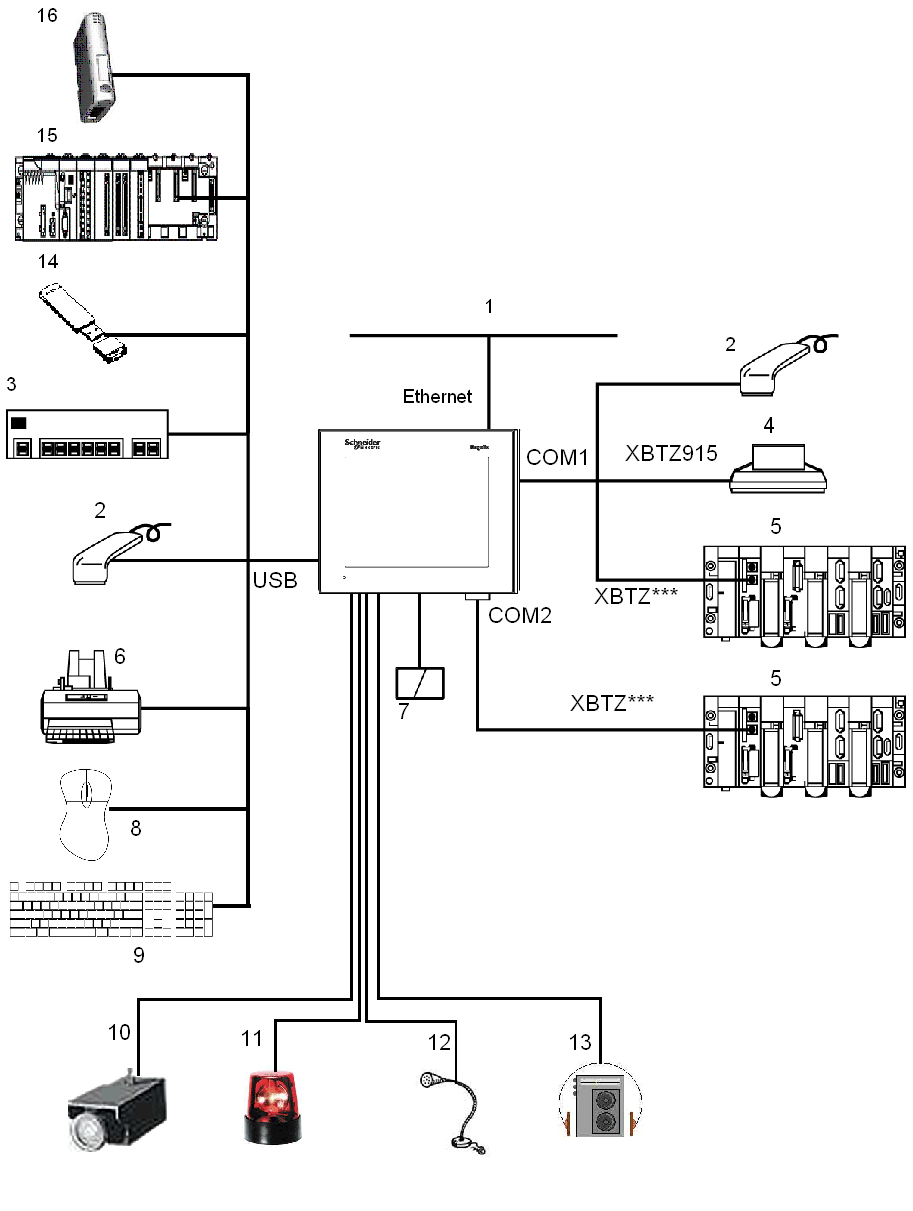

XBT GT1005/2000/4000/5000/6000/7000 and XBT GK2000/5000 Series Run Mode Peripherals

1 Ethernet network connection (not available on XBT GH, XBT GT1105/2110/2120/2220 and XBT GK2120)

2 Serial bar code reader (validated with Gryphon range of Datalogic)

3 USB hub (commercial type)

4 Serial printer

5 PLC

6 Parallel printer (printer function validated with EPSON and HP models; details available on Vijeo Designer documentation)

7 Compact Flash (CF) Card (not available on XBT GT1105/1135/1335/2110)

8 USB Mouse

9 USB Keyboard

10 Camera (available on XBT GTxx40 products only and Vijeo Designer Version higher than V4.3)

11 Flashing light (not available on XBT GT1005/2000 series and XBT GK2000 series)

12 Microphone (available on XBT GTxx40 products only and Vijeo Designer Version higher than V4.3)

13 Speaker (not available on XBT GT1005/2000 series and XBT GK2000 series)

14 USB Memory Stick

15 PLC with USB Terminal port (Modicon M340)

16 Communication Gateway (ModbusPlus or Fipio)

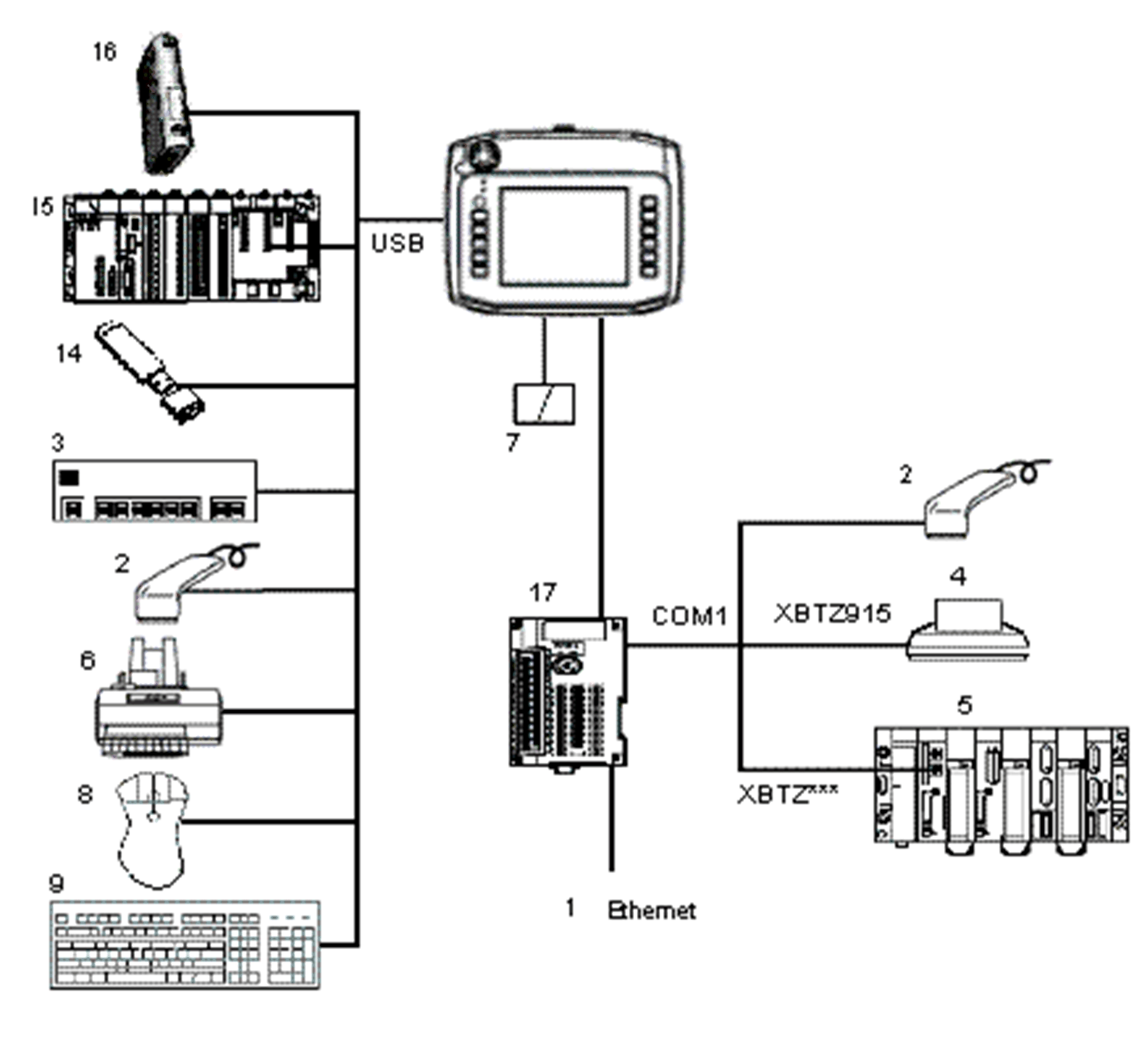

XBT GH Series Run Mode Peripherals

1 Ethernet network connection (not available on XBT GH XBT GT1105/2110/2120/2220 and XBT GK2120)
