EtherCAT - PROFINET IO Device Terminal EL6631_0010
CODESYS supports the EL6631_0010 device from Beckhoff, which provides a gateway from EtherCAT to a PROFINET IO device. After adding the gateway below the EK1100 EtherCAT coupler, you can configure it like an ordinary EtherCAT slave.
When you add the gateway, a PROFINET IO device node is inserted automatically. This PROFINET IO device functions like a standard PROFINET IO controller.

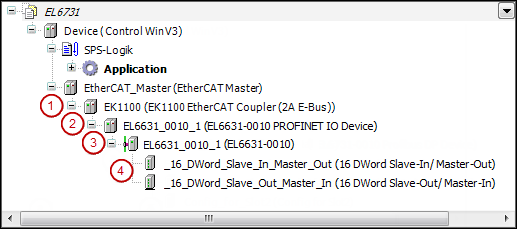

(1) EtherCAT coupler (2) Gateway EtherCAT PROFINET IO device (3) PROFINET IO device
(4) PROFINET IO modules
You insert the PROFINET IO modules below the PROFINET IO device. In the editor dialogs, you can set the typical PROFINET IO parameters and I/O channels.
