Calling a Visualization with an Interface



You can declare an interface for parameters for a visualization that is to be referenced. The actual parameters are passed to the interface (similar as in the case of a function block) when the visualization is called at runtime.

First of all, declare the interface variables in the visualization interface editor. Then configure the parameters that are transferred to the inter­face by assigning a data-type-compliant application variable to each interface variable. The assignment is configured in the References property in the case of a frame or a tab control.

Depending on the display variant, the parameter transfer of local vari­ables (with the VAR scope) is limited. If you execute the visualization as an integrated visualization, you can only transfer local variables having a basic data type as parameters. If the visualization is called as CODESYS TargetVisu or CODESYS WebVisu, then you can also transfer parameters with a user-defined data type.

User-controlled update of the transfer parameters



If you have configured visualization references and then save a change to the variable declaration for one of these visualizations in an interface editor, then the Updating the frame parameters dialog appears auto­matically. The dialog prompts you to edit the references. A list of all the visualizations affected is displayed there, so that the parameter transfers can be reassigned at the changed interface.

When the dialog is closed, the changes are accepted and the elements affected are displayed in the References property.

Calling visualization with interface (VAR_IN_OUT)



Requirement: The project contains a visualization and a main visualiza­tion. The main visualization contains an element that the visualization references.

  1. Open the visualization.

  2. Click Visualization ‣ Interface Editor .

  3. Declare a variable in the interface editor.

    ⇒ The visualization has an interface and the Updating the frame parameters dialog appears.

  4. Assign a type-compliant transfer parameter to the interface vari­ables in all calls by entering an application variable in Value. Close the dialog.

    ⇒ A transfer parameter is assigned at the points where the visual­ization is to be referenced. These now appear in the main visualiza­tion in the References property.

Example

The visPie visualization contains an animated, colored pie. The visMain main visualization calls the visPie visualization multiple times in a tab control. Color information, angle information, and label are transferred via the pieToDisplay interface variable. The pies vary at runtime.

Visualization visPie:


Properties of the Pie element:

Variable for begin

pieToDisplay.iStart

Variable for end

pieToDisplay.iEnd

Texts ‣ Text

%s

Text variables ‣ Text variable

pieToDisplay.sLabel

Color variable ‣ Normal state

pieToDisplay.dwColor

Interface of the visualization visPie:

VAR_IN_OUT
   pieToDisplay : DATAPIE;
END_VAR

Main visualization :code:`visMain:`

Properties of the Tab control element:

References

visPie

Heading

A

pieToDisplay

PLC_PRG.pieA

visPie

Heading

B

pieToDisplay

PLC_PRG.pieB

visPie

Heading

C

pieToDisplay

PLC_PRG.pieC

:code:`DATAPIE (STRUCT)`

TYPE DATAPIE : // Parameter type used in visPie
STRUCT
   dwColor : DWORD; // Color data
   iStart : INT; // Angle data
   iEnd : INT;
   sLabel : STRING;
END_STRUCT
END_TYPE

GVL

{attribute 'qualified_only'}
VAR_GLOBAL CONSTANT
   c_dwBLUE : DWORD := 16#FF0000FF; // Highly opaque
   c_dwGREEN : DWORD := 16#FF00FF00; // Highly opaque
   c_dwYELLOW : DWORD := 16#FFFFFF00; // Highly opaque
   c_dwGREY : DWORD :=16#88888888; // Semitransparent
   c_dwBLACK : DWORD := 16#88000000; // Semitransparent
   c_dwRED: DWORD := 16#FFFF0000;  // Highly opaque
END_VAR

:code:`PLC_PRG`

PROGRAM PLC_PRG
VAR
   iInit: BOOL := TRUE;

   pieA : DATAPIE; // Used as argument when visPie is called
   pieB : DATAPIE;
   pieC : DATAPIE;

    iDegree : INT; // Variable center angle for the pie element used for animation
END_VAR

IF iInit = TRUE THEN
   pieA.dwColor := GVL.c_dwBLUE;
   pieA.iStart := 0;
    pieA.sLabel := 'Blue';

   pieB.dwColor := GVL.c_dwGREEN;
   pieB.iStart := 22;
    pieB.sLabel := 'Green';

   pieC.dwColor := GVL.c_dwYELLOW;
   pieC.iStart := 45;
    pieC.sLabel := 'Yellow';

   iInit := FALSE;
END_IF

iDegree := (iDegree + 1) MOD 360;

pieA.iEnd := iDegree;
pieB.iEnd := iDegree;
pieC.iEnd := iDegree;

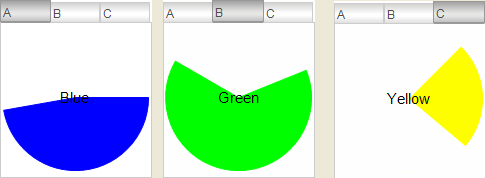

Main visualization :code:`visMain at runtime:`


Printing the instance name of a transfer parameter

In order to obtain and output the instance name of a transfer parameter, you can implement an interface variable (data type STRING) with the pragma {attribute 'parameterstringof'} in the VAR_INPUT scope.

The project contains a visualization and a main visualization. The main visualization contains elements that the visualization references.

  1. Open the visualization.

  2. Click Visualization ‣ Interface Editor .

  3. Declare an interface variable (VAR_IN_OUT).

    pieToDisplay : DATAPIE;

  4. In the interface editor, declare a variable (VAR_INPUT) with attri­bute {attribute 'parameterstringof'}.

    {attribute 'parameterstringof' := 'pieToDisplay'}

    sNameToDisplay : STRING;

  5. Save the changes.

    ⇒ The Updating the frame parameters dialog does not open.

  6. Insert a Text field element.

  7. In the Texts, Text property, assign an output text to the text field.

    Visualization of %s

  8. In the Text variablesText variable property, assign the interface variable to the text field.

    sNameToDisplay

    visPie has a heading.

Example

The visPie visualization consists of one pie until now. The visMain main visualization calls visPie in a tab control three times with different transfer parameters.

The visPie is extended with a text field that outputs the name of the parameters actually passed to the visualization. For this, the interface of visPie is extended with a string variable that contains the instance name of the specified transfer parameter. At runtime, each pie is over­written.


Properties of the Text field element:

Texts, Text

Visualization of %s

Text variables, Text variable

sNameToDisplay

Interface of the 'visPie' visualization:

VAR_INPUT
    {attribute 'parameterstringof' := 'pieToDisplay'}
   sNameToDisplay : STRING;
END_VAR
VAR_IN_OUT
   pieToDisplay : DATAPIE;
END_VAR

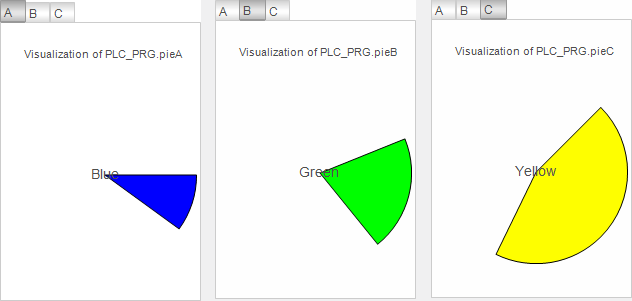

Main visualization :code:`visMain at runtime:`
