Hardware Configuration

Overview of the Hardware Configuration

Overview

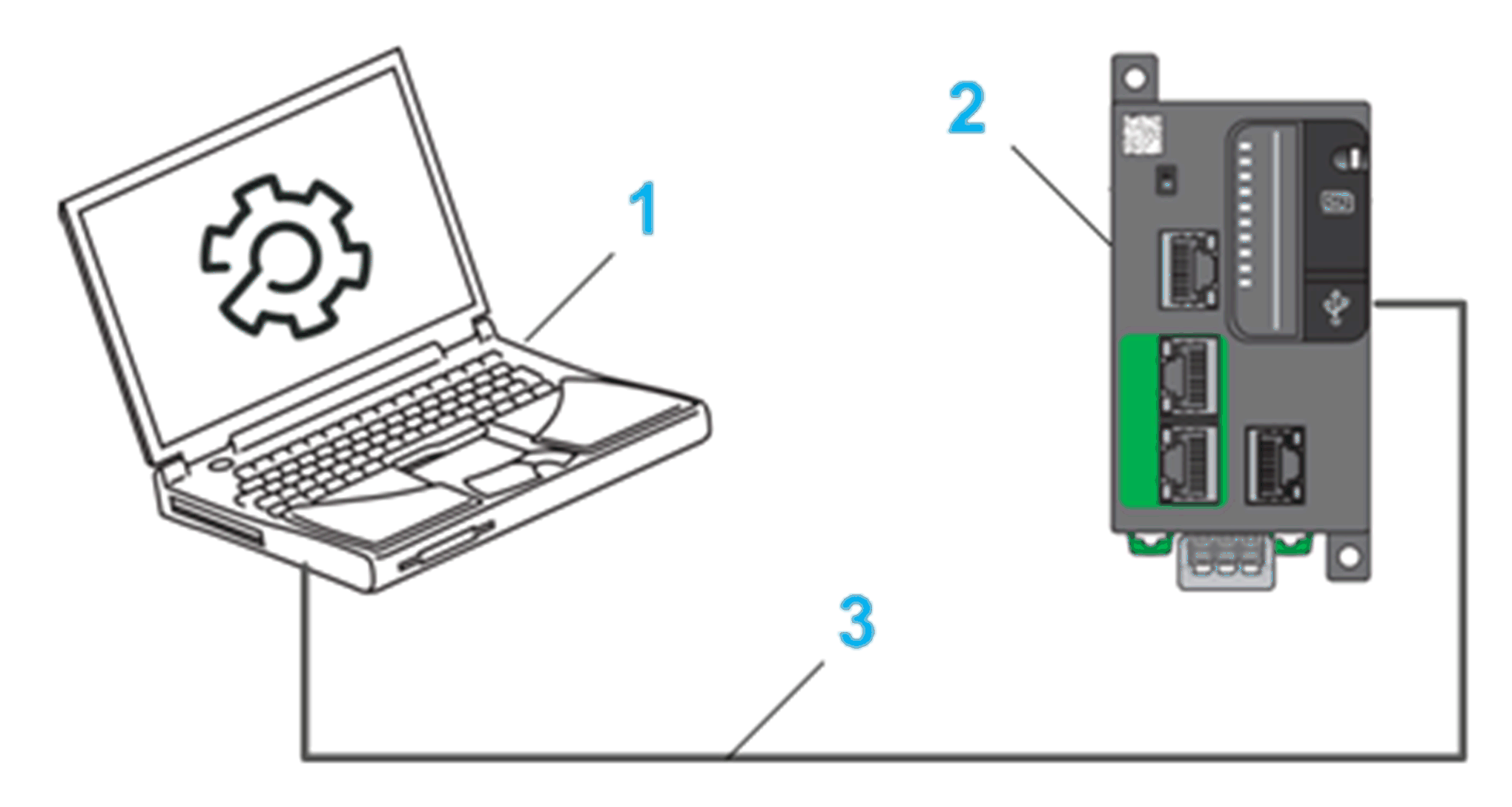

To run the application example, the following hardware installation was tested:

1   PC with EcoStruxure Machine Expert V1.0 or greater

2   Logic controller LMC600C

3   Ethernet connection

NOTE: This example is using the LMC600C Logic controller platform, but the principles are the same for other EcoStruxure Machine Expert controller platforms.
