FB_CreateJsonFormattedString Example
The following example shows how to build a text STRING in JSON format by using the function block FB_CreateJsonFormattedString. After the text STRING has been created, it is stored in a new file on the file system of the controller by using the function block FB_WriteFile.
//JSON Example - Declaration Part
PROGRAM SR_Main
VAR
xStart : BOOL;
xReset : BOOL;
etResult : FFU.ET_Result;
xJsonStringInvalid : BOOL;
xProcessCompleted : BOOL;
sResultMsg : STRING(80):= 'Ready for start';
xErrorWriteFile : BOOL;
dtTimestamp : DATE_AND_TIME;
udiMessageId : UDINT := 12587;
rTotalEnergy : REAL := 35.6;
rMaxVoltage : REAL := 402.56;
rLowVoltage : REAL := 399.03;
rMaxCurrent : REAL := 18.459;
rTemperatureSensor1 : REAL := 21.65;
rTemperatureSensor2 : REAL := 32.47;
rTemperatureSensor3 : REAL := 36.52;
rTemperatureSensor4 : REAL := 47.35;
iState : INT;
xErr : BOOL;
xStartOld : BOOL;
udiResult : UDINT;
sJsonString : STRING(FFU.GPL.Gc_udiJsonMaxLengthOfString);
fbJson : FFU.FB_CreateJsonFormattedString;
fbWriteFile : FFU.FB_WriteFile;
END_VAR
//JSON Example - Implementation Part
CASE iState OF
0 : //Idle
IF xStart AND NOT xStartOld THEN
iState := 10 ;
xProcessCompleted := FALSE ;
END_IF
xStartOld := xStart ;
xStart := FALSE ;
10 : //Prepare data
dtTimestamp := DWORD_TO_DT ( SysTimeRtc.SysTimeRtcGet ( udiResult ) ) ; // get the RTC of the controller
iState := 20 ;
20 : //Create String
xErr := FALSE ;
xErr S= NOT fbJson.New ( ) ;
xErr S= NOT fbJson.AddNameValuePairObject ( 'Header' ) ;
xErr S= NOT fbJson.AddNameValuePairString ( 'MachineId' , 'SEMSOL-M251MESE-F40A0B07' ) ;
xErr S= NOT fbJson.AddNameValuePairString ( 'MachineType' , 'SMR-550' ) ;
xErr S= NOT fbJson.AddNameValuePair ( 'Timestamp' , dtTimestamp ) ;
xErr S= NOT fbJson.AddNameValuePair ( 'MessageId' , udiMessageId ) ;
xErr S= NOT fbJson.ObjectClose ( ) ; // close object header'
xErr S= NOT fbJson.AddNameValuePairObject ( 'Values' ) ;
xErr S= NOT fbJson.AddNameValuePairObject ( 'Configuration' ) ;
xErr S= NOT fbJson.AddNameValuePairArray ( 'Devices' ) ;
xErr S= NOT fbJson.ObjectOpen ( ) ;
xErr S= NOT fbJson.AddNameValuePairString ( 'ID' , '1' ) ;
xErr S= NOT fbJson.AddNameValuePairString ( 'Category' , 'Controller' ) ;
xErr S= NOT fbJson.AddNameValuePairString ( 'Type' , 'TM251MESE' ) ;
xErr S= NOT fbJson.ObjectClose ( ) ;
xErr S= NOT fbJson.ObjectOpen ( ) ;
xErr S= NOT fbJson.AddNameValuePairString ( 'ID' , '2' ) ;
xErr S= NOT fbJson.AddNameValuePairString ( 'Category' , 'ServoDrive' ) ;
xErr S= NOT fbJson.AddNameValuePairString ( 'Type' , 'Lexium32M' ) ;
xErr S= NOT fbJson.ObjectClose ( ) ;
xErr S= NOT fbJson.ArrayClose ( ) ; // close array Devices
xErr S= NOT fbJson.ObjectClose ( ) ; // close object Configuration
xErr S= NOT fbJson.AddNameValuePairObject ( 'Status' ) ;
xErr S= NOT fbJson.AddNameValuePairString ( 'Machinestate' , 'Running' ) ;
xErr S= NOT fbJson.AddNameValuePairString ( 'Errorstate' , 'NoError' ) ;
xErr S= NOT fbJson.AddNameValuePairString ( 'Warning' , 'Filllevel low' ) ;
xErr S= NOT fbJson.ObjectClose ( ) ;
xErr S= NOT fbJson.AddNameValuePairArray ( 'Processdata' ) ;
xErr S= NOT fbJson.ObjectOpen ( ) ;
xErr S= NOT fbJson.AddNameValuePairArray ( 'Energy' ) ;
xErr S= NOT fbJson.ArrayAddValue ( rTotalEnergy ) ;
xErr S= NOT fbJson.ArrayAddValue ( rMaxVoltage ) ;
xErr S= NOT fbJson.ArrayAddValue ( rLowVoltage ) ;
xErr S= NOT fbJson.ArrayAddValue ( rMaxCurrent ) ;
xErr S= NOT fbJson.ArrayClose ( ) ;
xErr S= NOT fbJson.ObjectClose ( ) ;
xErr S= NOT fbJson.ObjectOpen ( ) ;
xErr S= NOT fbJson.AddNameValuePairArray ( 'Temperature' ) ;
xErr S= NOT fbJson.ArrayAddValue ( rTemperatureSensor1 ) ;
xErr S= NOT fbJson.ArrayAddValue ( rTemperatureSensor2 ) ;
xErr S= NOT fbJson.ArrayAddValue ( rTemperatureSensor3 ) ;
xErr S= NOT fbJson.ArrayAddValue ( rTemperatureSensor4 ) ;
xErr S= NOT fbJson.ArrayClose ( ) ;
xErr S= NOT fbJson.ObjectClose ( ) ;
xErr S= NOT fbJson.ArrayClose ( ) ; // close array Processdata
xErr S= NOT fbJson.ObjectClose ( ) ; // close object Values
// copy the string, not mandatory for the present processing but for presentation of the feature
fbJson.Copy ( i_anyBuffer := sJsonString ) ;
IF xErr OR NOT fbJson.IsJsonStringValid THEN
iState := 100 ;
xJsonStringInvalid := NOT fbJson.IsJsonStringValid ;
ELSE
iState := 30 ;
END_IF
30 : //Start write file
fbWriteFile (
i_xExecute := TRUE ,
i_sFilePath := 'MachineData.json' ,
i_etModeFileOpen := FFU.ET_ModeFileOpen.CreatePlus ,
i_timTimeout := ,
i_pbyBuffer := fbJson.PointerToJsonString ,
i_udiSize := fbJson.LengthOfJsonString ,
q_xDone => ,
q_xBusy => ,
q_xError => ,
q_etResult => ,
q_sResultMsg => ,
q_udiFileSize => ) ;
iState := 40 ;
40 : // Wait for write file complete
IF fbWriteFile.q_xDone THEN
iState := 0 ;
xProcessCompleted := TRUE ;
ELSIF fbWriteFile.q_xError THEN
iState := 100 ;
xErrorWriteFile := TRUE ;
etResult := fbWriteFile.q_etResult ;
sResultMsg := fbWriteFile.q_sResultMsg ;
END_IF
fbWriteFile ( i_xExecute := ( iState = 40 ) ) ;
100 : //Error detected
IF xReset THEN
iState := 0 ;
etResult := FFU.ET_Result.Idle ;
sResultMsg := 'Ready for start' ;
xJsonStringInvalid := FALSE ;
xErrorWriteFile := FALSE ;
xReset := FALSE ;
END_IF
END_CASE

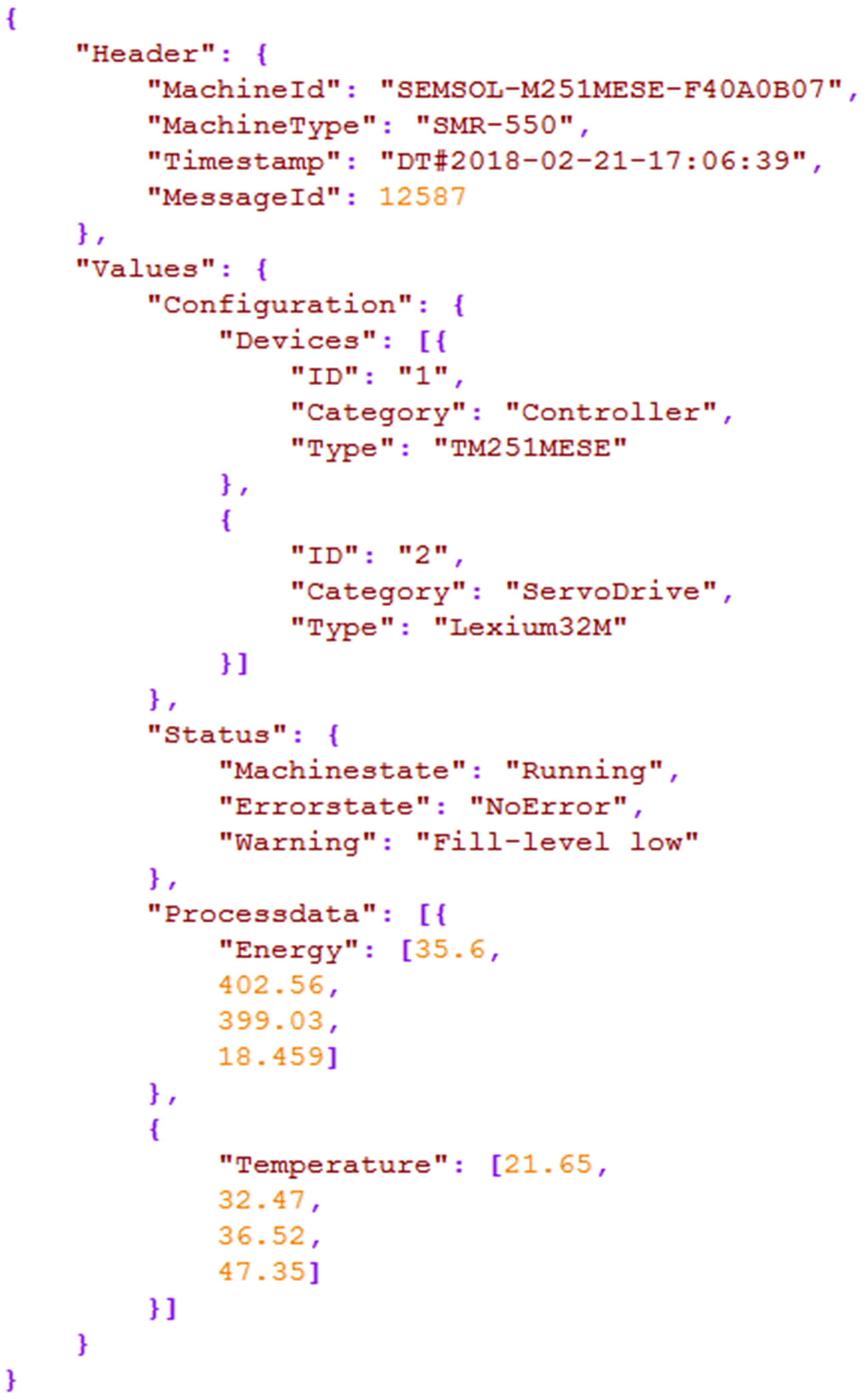

NOTE: The original text STRING does not contain any blank spaces or line breaks. The JSON structure displayed in the figure above has been automatically created when opening the file in an appropriate text editor supporting JSON format.
