ST_XmlItem

Overview

Type:	Structure
Available as of:	V1.0.8.0
Inherits from:	-

Description

The structure ST_XmlItem is used to describe an element or an attribute that is read from or written to an XML file.

Structure Elements

Name	Data type	Description
diParentIndex	DINT	Indicates the index of the array where the parent element of the XML item is located (refer to Example for Hierarchical Relations Indicated by uiParentIndex). If the value is -1, the element is a root element.
sName	STRING[GPL.Gc_uiXmlLengthOfString]	Name of the element or attribute.
sValue	STRING[GPL.Gc_uiXmlLengthOfString]	Value of the element or attribute.
etType	ET_XmlItemType	Indicates the type of the XML item.
uiNumOfAttributes	ULINT	This value depends on the type of the XML item: oIf the item is of type element, then the value indicates the number of associated attributes. oIf the item is of type attribute, then the value indicates the sequential number.

Used By

oFB_XmlRead

oFB_XmlWrite

Example for Hierarchical Relations Indicated by uiParentIndex

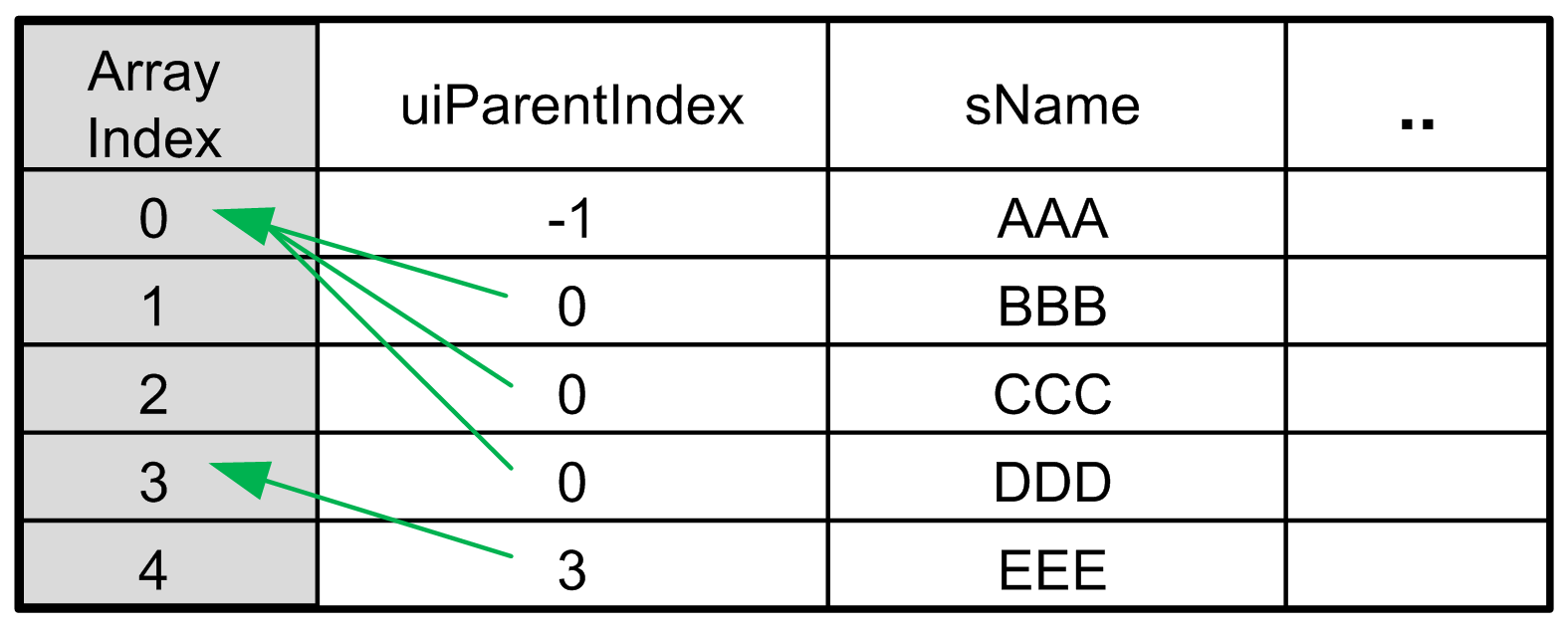

The example illustrates the correlation between the parameter uiParentIndex in the buffer of type XmlItems provided by the application and the hierarchical structure in the XML document.

XML document	Buffer of type XmlItems provided by the application
<?xml version="1.0" encoding="ASCII"?> <AAA> <BBB /> <CCC /> <DDD> <EEE /> </DDD> </AAA>

XML document

Buffer of type XmlItems provided by the application

<?xml version="1.0" encoding="ASCII"?>
<AAA>
   <BBB />
   <CCC />
     <DDD>
       <EEE />
     </DDD>
</AAA>

Element	Parent index	Explanation
AAA	–1	AAA is the root element. It has no parent.
BBB	0	AAA is the parent element. It is stored in array index 0.
CCC	0
DDD	0
EEE	3	DDD is the parent element. It is stored in array index 3.
