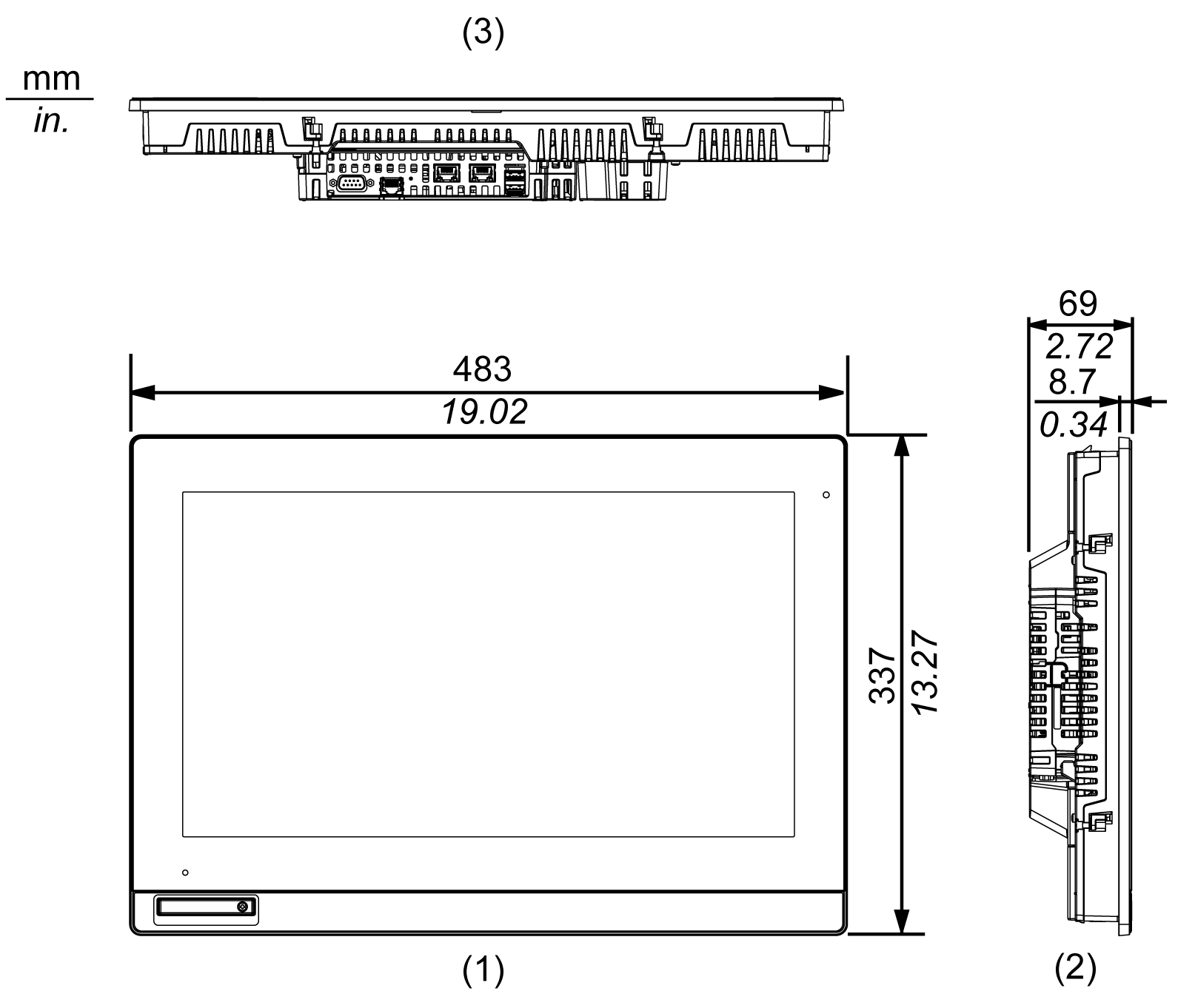

1 Front
2 Left
3 Bottom
*1 Rotation area of the fastener
*2 Pitch of the enter of installation fastener screws
1 Right
2 Front
3 Left
4 Bottom
5 Top
NOTE: All the above values are designed with cable bending in mind. The dimensions given here are representative values depending on the type of connection cable in use. Therefore, these values are intended for reference only.
