System Design

Introduction

The following diagrams represent the main selection of equipments you can connect to the panels.

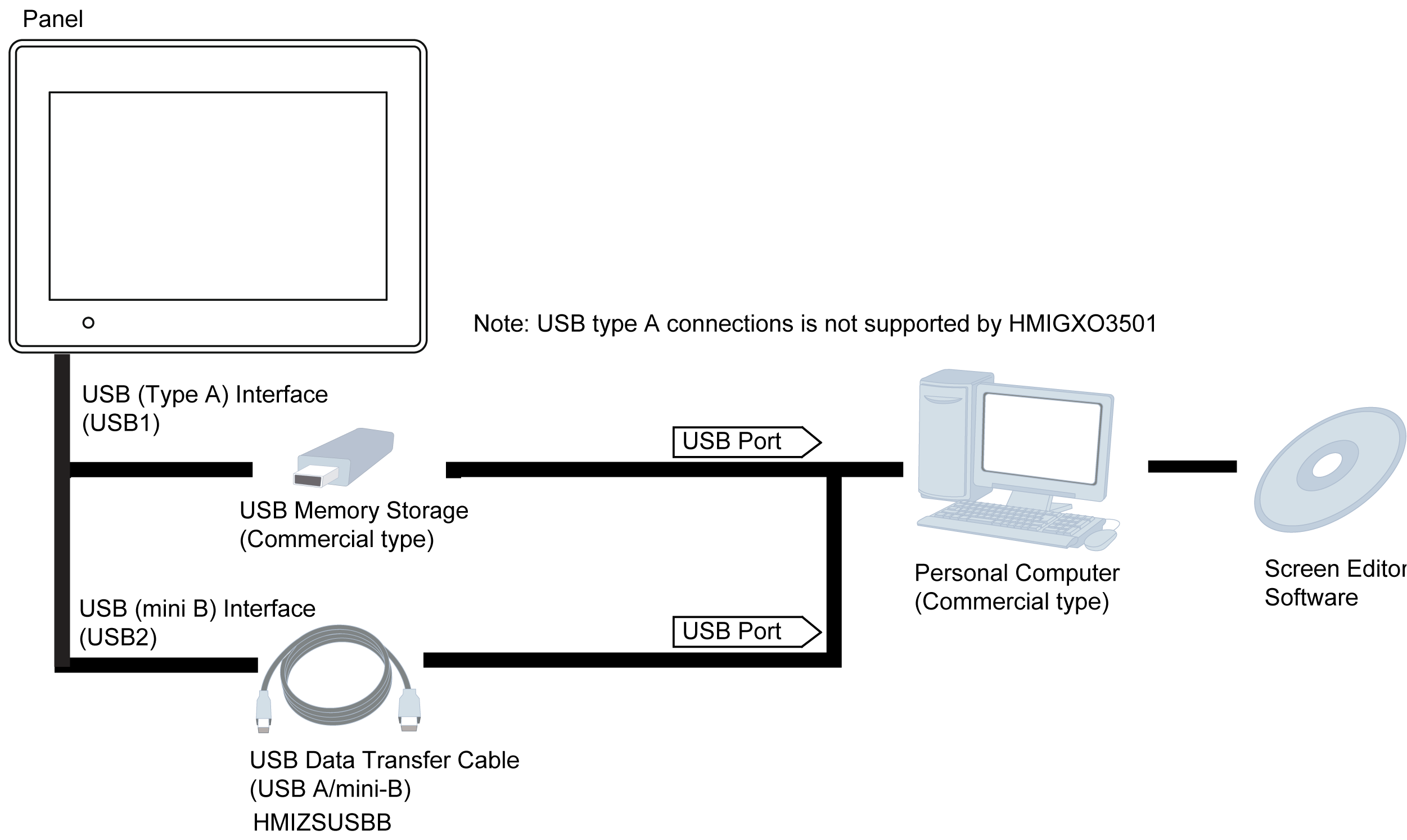

Edit Mode Peripherals

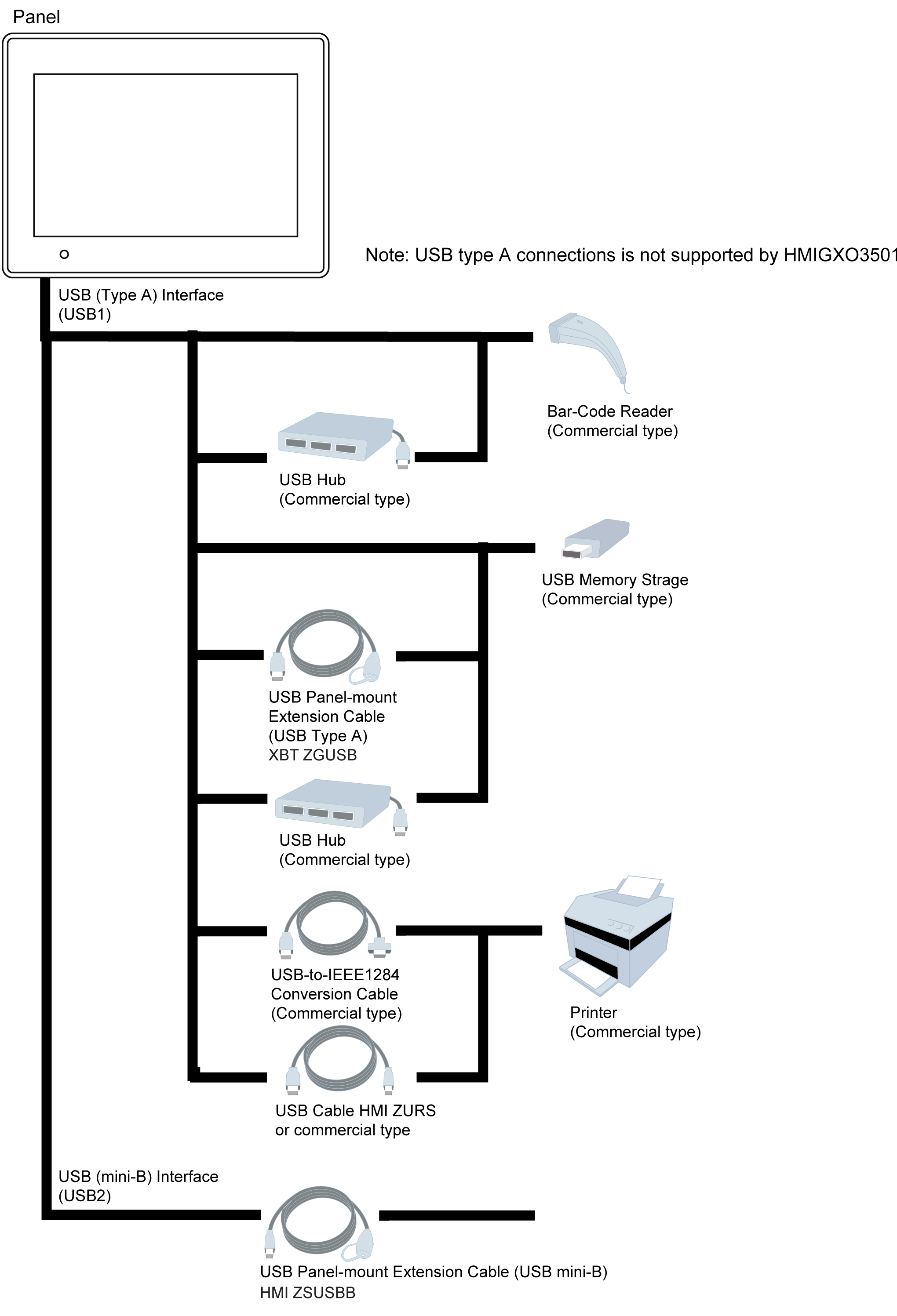

Run Mode Peripherals - USB Type A/mini B Interface

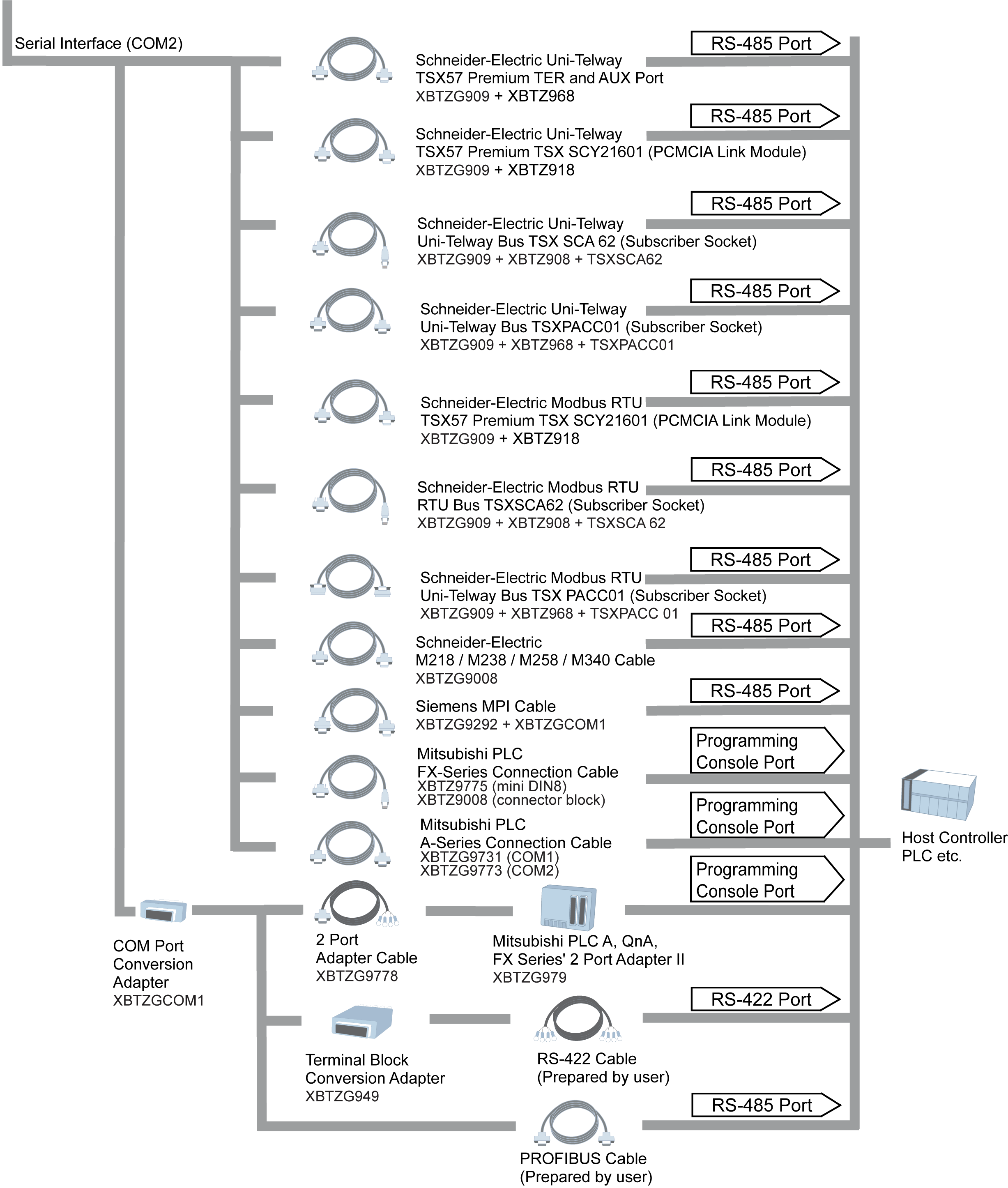

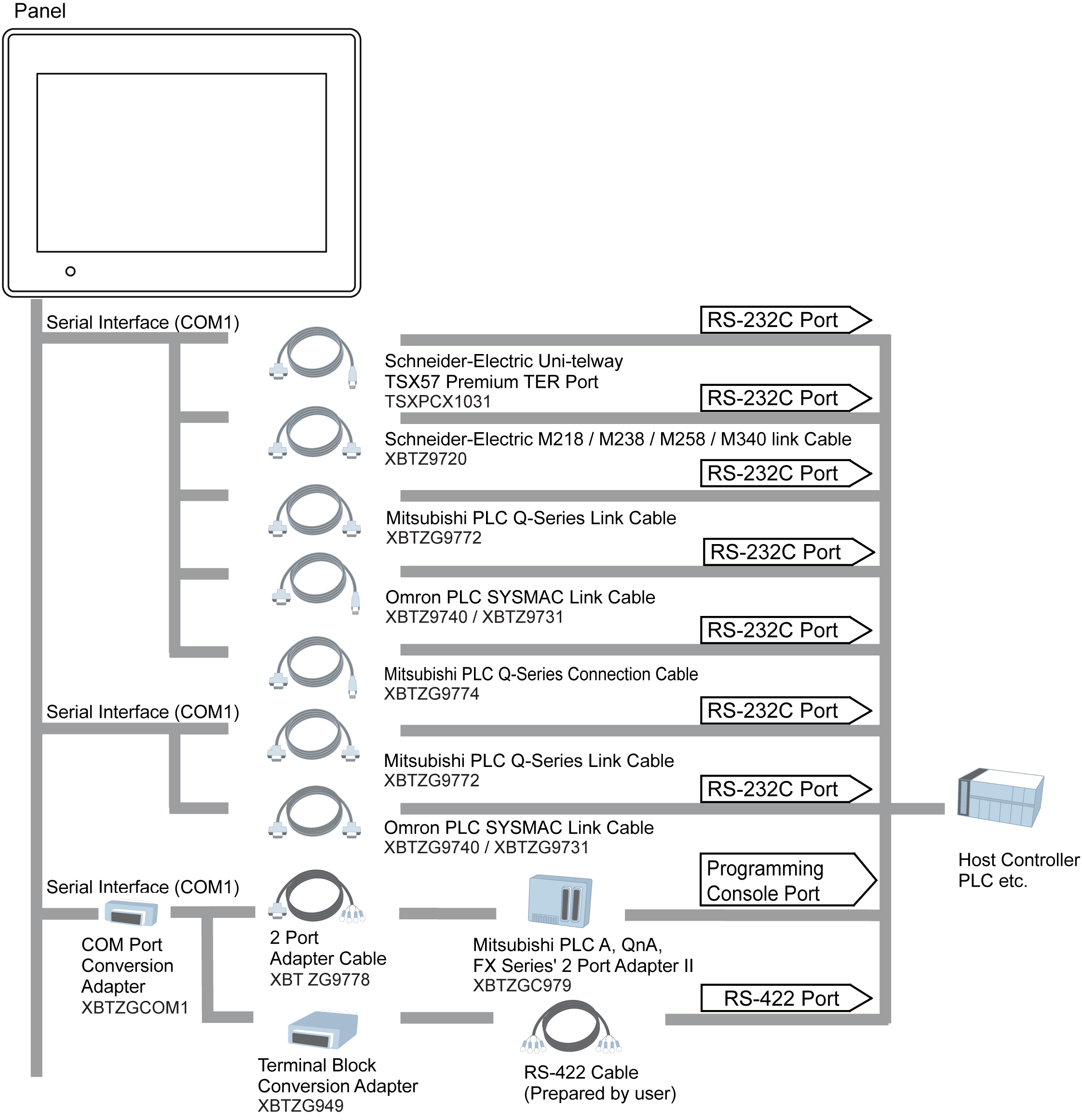

Run Mode Peripherals - Serial Communication
