HMIGXO Parts Identification

Side

HMIGXO3501

HMIGXO•502

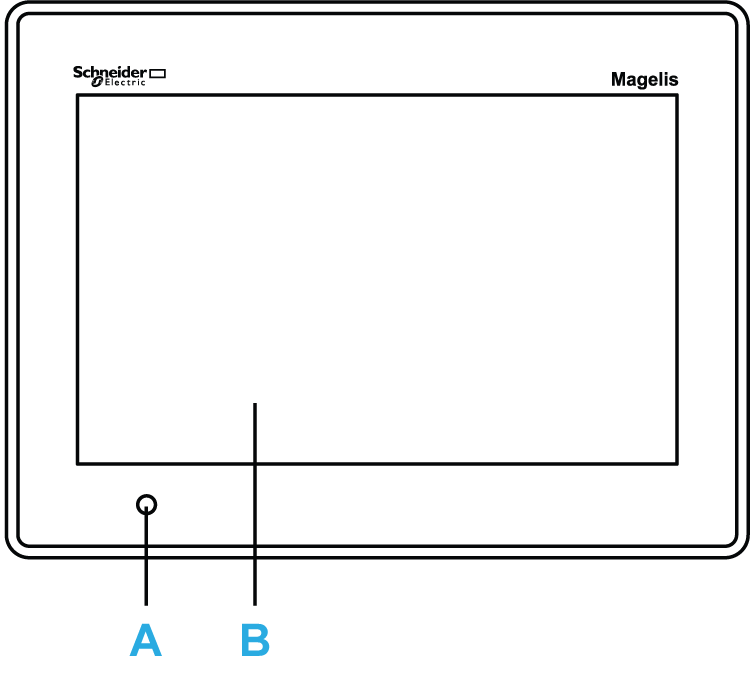

Front

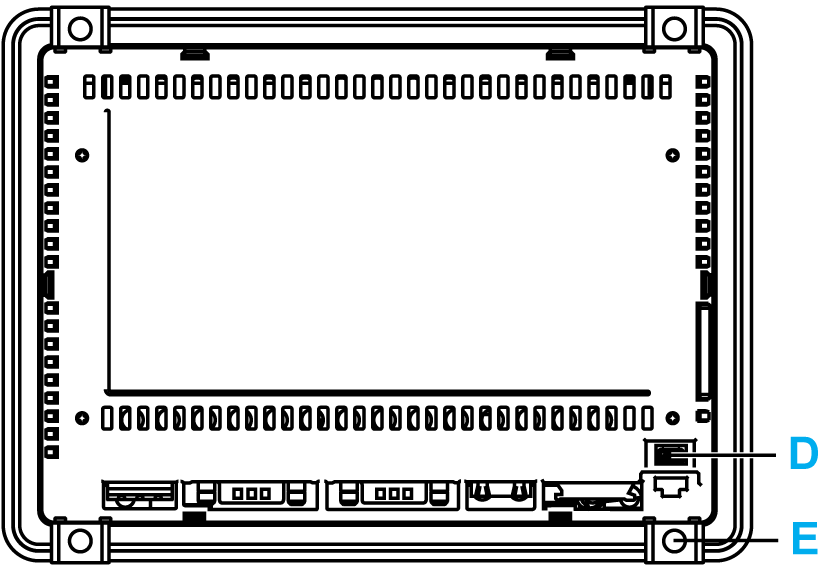

Rear

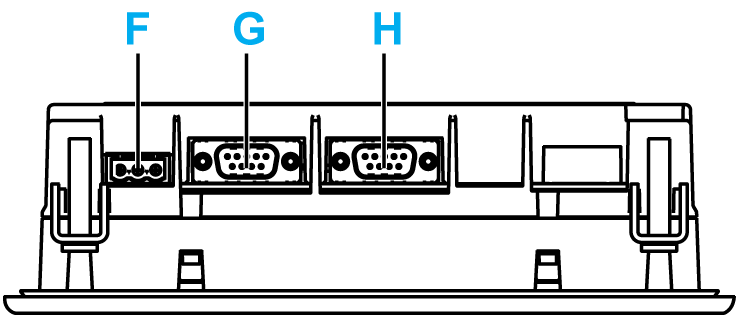

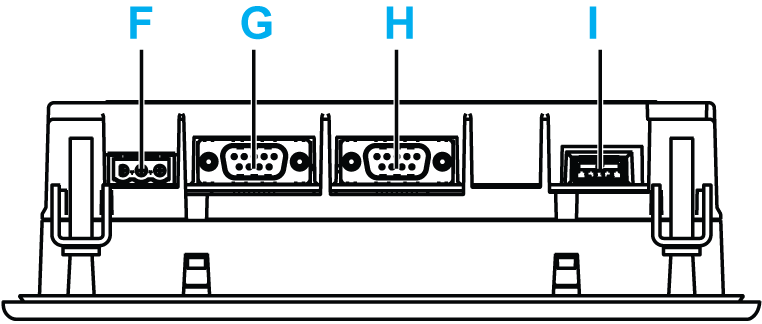

Bottom



Part	Description
A	LED Indicator
B	Touch panel
C	Replaceable battery for RTC
D	USB (Type mini B)
E	Screw installation fasteners (HMIGXO3501 and HMIGXO3502 x 4, HMIGXO5502 x 6)
F	Power connector
G	Serial Interface COM2 (RS-422/485)
H	Serial Interface COM1 (RS-232C)
I	USB (Type A)
