GetShortCutStatus: Returns the Short-Circuit Status on Embedded Outputs
This function returns the short-circuit or overload diagnostic on embedded outputs.
NOTE: For more information about embedded outputs management, refer to the M218 Hardware Guide.

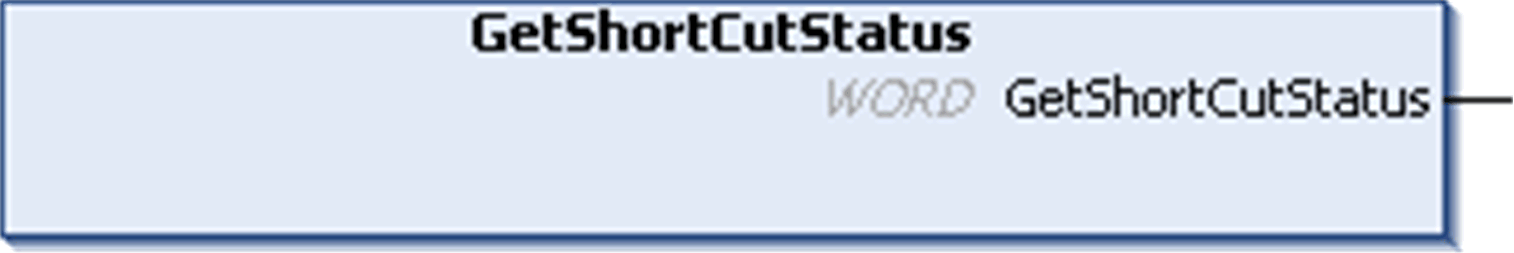

To see the general representation in IL or ST language, refer to the chapter Function and Function Block Representation.
The table describes the output variable:
|
Parameter |
Type |
Comment |
|---|---|---|
|
GetShortCutStatus |
WORD |
see bit field description below |
The following table describes the bit field for the TM218LDA•••PHN:
|
Bit |
Description |
|---|---|
|
0 |
TRUE = short-circuit on outputs category 1 (Q0 to Q3). |
The following table describes the bit field for the TM218LDD24DUPHN:
|
Bit |
Description |
|---|---|
|
0 |
TRUE = short-circuit on outputs category 1 (Q0 to Q3). |
|
1 |
TRUE = short-circuit on outputs category 2 (Q4 to Q7) or without 24 Vdc on V1+/V1-. |
|
2 |
TRUE = short-circuit on outputs category 3 (Q8 to Q9) or without 24 Vdc on V1+/V1-. |
The following table describes the bit field for the TM218LDD40DUPHNB:
|
Bit |
Description |
|---|---|
|
0 |
TRUE = short-circuit on outputs category 1 (Q0 to Q3). |
|
1 |
TRUE = short-circuit on outputs category 2 (Q4 to Q7) or without 24 Vdc on V1+/V1-. |
|
2 |
TRUE = short-circuit on outputs category 3 (Q8 to Q11) or without 24 Vdc on V2+/V2-. |
|
3 |
TRUE = short-circuit on outputs category 4 (Q12 to Q15) or without 24 Vdc on V2+/V2-. |
