SetIPAddress: Changes the IP Address Dynamically

Function Description

This function changes the IP address dynamically when it is configured as a fixed IP address.

NOTE: EcoStruxure Machine Expert returns an error if the IP address is assigned by a server using DHCP or BOOTP.

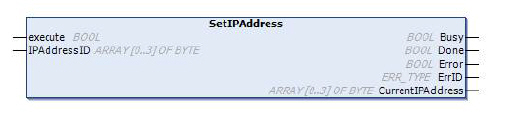

Graphical Representation

IL and ST Representation

To see the general representation in IL or ST language, refer to the chapter Function and Function Block Representation.

I/O Variable Description

The following table describes the input variables:

Input	Type	Comment
execute	BOOL	On rising edge, starts the function block execution. On falling edge, resets the outputs of the function block when its execution terminates.
IPAddressID	ARRAY [0..3] OF BYTE	IP address [aaa.bbb.ccc.ddd]: oIPAddressID[0]= aaa o... oIPAddressID[3]= ddd

Input

Type

Comment

execute

BOOL

On rising edge, starts the function block execution.

On falling edge, resets the outputs of the function block when its execution terminates.

IPAddressID

ARRAY [0..3] OF BYTE

IP address [aaa.bbb.ccc.ddd]:

oIPAddressID[0]= aaa

o...

oIPAddressID[3]= ddd

The following table describes the output variables:

Output	Type	Comment
Busy	BOOL	TRUE = setting of the new IP address is in progress.
Done	BOOL	TRUE = indicates that the action is successfully completed.
Error	BOOL	TRUE = indicates that an error was detected.
ErrID	ERR_TYPE	When Error = TRUE, returns the type of ERR_TYPE that was detected.
CurrentIPAddress	ARRAY [0..3] OF BYTE	The IP address that the PLC is using.

Implementing SetIPAddress

The IP address changed using SetIPAddress is stored in the persistent memory area of the controller.

NOTE: If you download the application to the controller again, after changing the IP address, the IP address of the configuration page will be used.
