The following table describes the main characteristics of the TM5SE1RS2 electronic module:
Main Characteristics |
|
---|---|
Function |
Communication module |
Interface |
1 RS-232 interface for serial, remote connection of complex devices to the TM5 System |
Maximum transfer rate |
115.2 kBit/s |
For compatibility information, refer to Compatibility and Migration User Guide.
The following illustration shows the TM5SE1RS2 electronic module in combination with the required accessories that require a spacing of 12.5 mm (+ 0.2 mm) (0.49 in. (+ 0.2 in.)).
NOTICE |
ELECTROSTATIC DISCHARGE |
oInstall a right bus base locking plate to the rightmost slice of all configurations. oInstall a left bus base locking plate to the first slice of all remote configurations. |
Failure to follow these instructions can result in equipment damage. |
The following table shows the reference for the electronic module:
Number |
Reference |
Description |
Color |
---|---|---|---|
2 |
TM5SE1RS2 |
Electronic module |
White |
The following table shows the references for required accessories:
Number |
Reference |
Description |
Color |
---|---|---|---|
1 |
TM5ACBM11 |
TM5 bus module |
White |
3 |
TM5ACTB06 or TM5ACTB12 |
TM5 terminal block, 6 pins
TM5 terminal block, 12 pins |
White
White |
NOTE: Order these accessories separately.
NOTE: For more information, refer to TM5 bus bases and terminal blocks.

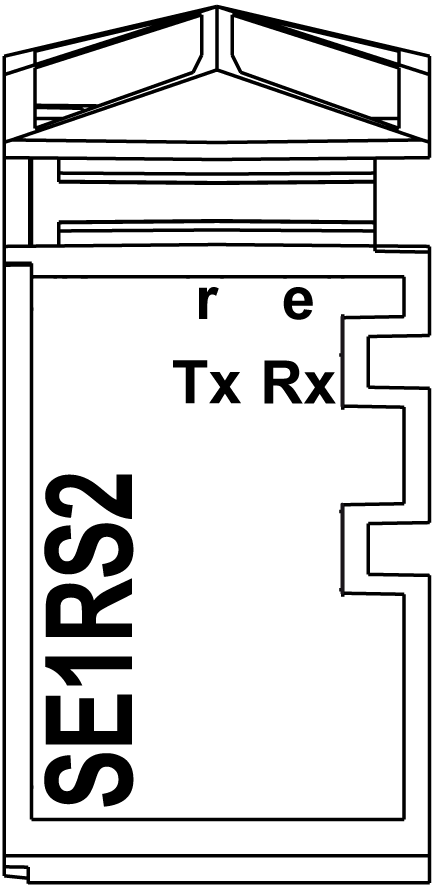

The following illustration shows the status LEDs for TM5SE1RS2:
The following table shows the TM5SE1RS2 status LEDs:
LED |
Color |
Status |
Description |
---|---|---|---|
r |
Green |
Off |
Module supply not connected. |
Single flash |
Reset mode |
||
Flashing |
Preoperational mode |
||
On |
RUN mode |
||
e |
Red |
Off |
Module supply not connected or OK. |
On |
Detected error or reset state |
||
e+r |
Steady red / single green flash |
Invalid firmware |
|
Tx |
Yellow |
On |
The module is sending data by means of the RS-232 interface. |
Rx |
Yellow |
On |
The module is receiving data by means of the RS-232 interface. |
