This tab displays the list of Ethernet or Sercos devices which are configured to be controlled by Modicon M262 Logic/Motion Controller.
oEthernet_1
oEthernet_2
The following table describes the toolbar:
|
Element |
Description |
|---|---|
|
Generate IP address |
Allows you to generate the configurations of each device configured in the Devices tree. |
|
Filter Options |
Allows you to display more information on the configured devices. |
|
Discover devices |
Start the Machine Assistant which allows you to discover and to configure the devices. |
To view the configuration of a device, click the tab above the toolbar. The following information displays:
oIP Address
oSubnet Mask
oGateway
oSubnet Address
Configured Devices in the Project
|
Element |
Description |
Restriction |
|---|---|---|
|
Device Name |
Name of the device from the Devices tree. Click the device name to access the device configuration. |
Cannot be edited. |
|
Device Type |
Type of the device. |
Cannot be edited. |
|
IP Address |
IP Address of the device. Can be left blank for Sercos devices |
– |
|
MAC Address |
MAC address of the target device. Can be left blank for Sercos devices |
Can be edited if IP Address by BOOTP selected in the configuration of the device. |
|
DHCP Device Name |
Hostname of the target device |
Can be edited if IP Address by DHCP selected in the configuration of the device. |
|
Subnet Mask |
Subnet mask of the device |
Visible if Expert Mode selected in Filter Options. |
|
Gateway Address |
Gateway address of the device |
Visible if Expert Mode selected in Filter Options. |
|
Identified by |
Four identification modes are possible: oNone oFixed oBOOTP oDHCP |
– |
|
Protocol |
Protocol used |
Cannot be edited. |
|
Identifier |
Identifier of the device |
Can be edited for Sercos device. |
|
Identification Mode |
Identification mode of the device |
Can be edited for Sercos device. |
|
Operating Mode |
Three operating modes are possible: oActivated oSimulated oOptional |
Can be edited for Sercos device. |
The Ethernet Resources tab:
oDisplays the number of configured connections and channels.
oDisplays the number of input words.
oDisplays the number of output words.
oDisplays the scanner load.
The IP Routing tab allows you to configure the IP routes in the controller.
The parameter Enable IP forwarding allows you to deactivate the IP forwarding service of the controller. When deactivated, the communication is not routed from a network to another one. The devices on the device network are no longer accessible from the control network (Web pages, DTM, and so on).
The Modicon M262 Logic/Motion Controller can have up to three Ethernet interfaces. Using a routing table is necessary to communicate with remote networks connected to different Ethernet interfaces. The gateway is the IP address used to connect to the remote network, which needs to be in local network of the controller.
This graphic depicts an example network, in which the last two rows of devices (gray and red) need to be added in the routing table:
Use the routing tables to manage the IP forwarding. The routing tables are settled with:
|
Network Destination |
Network Mask |
Gateway |
|---|---|---|
|
xx.xx.xx.xx |
xx.xx.xx.xx |
xx.xx.xx.xx |

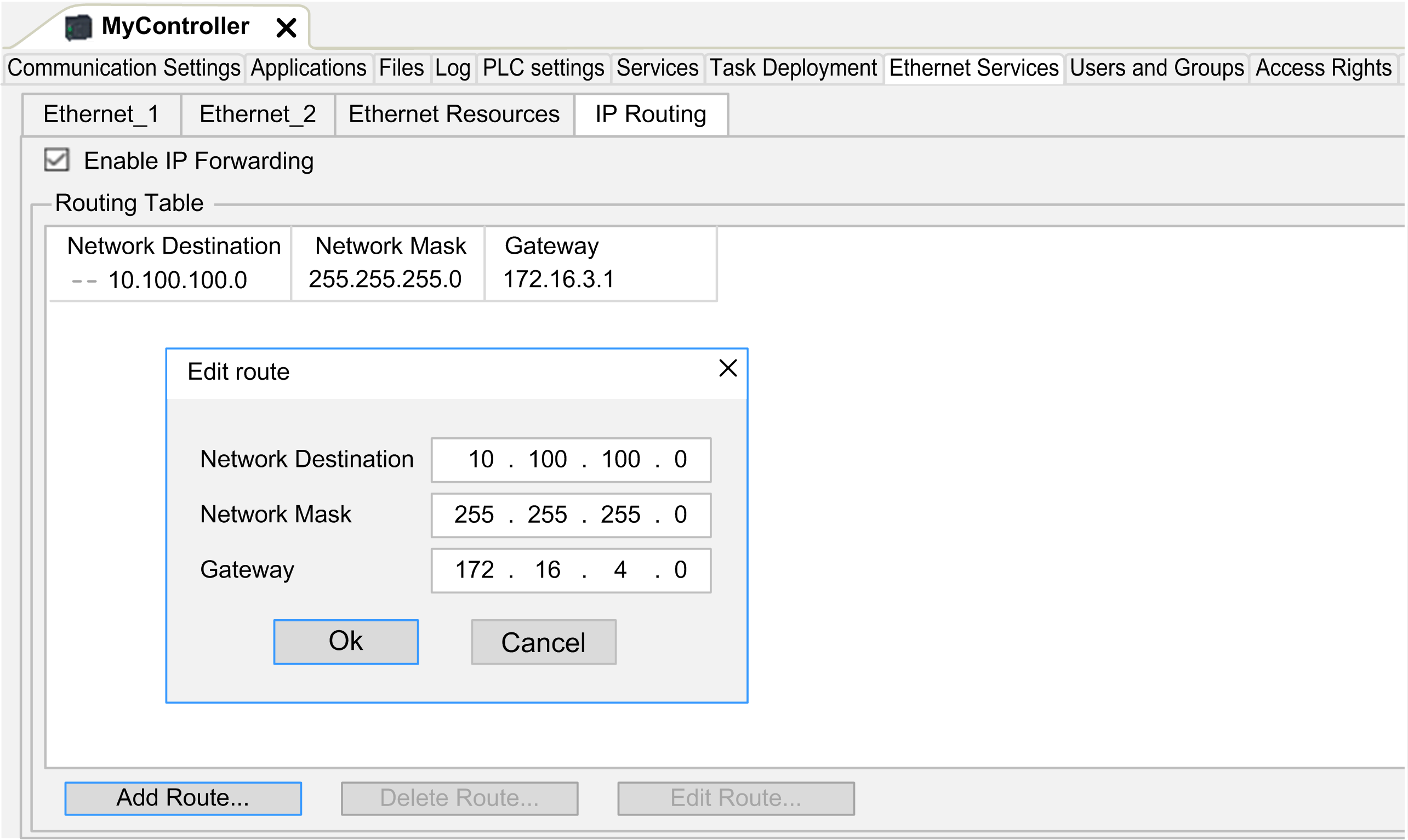

To add a route, double click My controller then click Ethernet Services > IP Routing > Add Route.
