TM5SPS3 Presentation

Main Characteristics

The TM5SPS3 Interface Power Distribution Module (IPDM) consists of two dedicated electrical circuits:

oa 24 Vdc main power that serves the electronics of the Sercos III Bus Interface module and generates independent power for the TM5 power bus that serves the expansion modules.

oa 24 Vdc I/O power segment that serves:

- the expansion modules,

- the sensors and actuators connected to the expansion modules,

- the external devices connected to the Common Distribution Modules (CDM)

The table below provides the main characteristics of the TM5SPS3 Interface Power Distribution Module (IPDM):

Main Characteristics
Maximum current provided on 24 Vdc I/O power segment	10000 mA
TM5 power bus generated	750 mA

Ordering Information

The following figure and table provide the references to create a TM5 Sercos III Bus Interface with the TM5SPS3 IPDM:

Number	Reference	Description	Color
1	TM5ACBN1	Bus base for Sercos III Bus Interface module and Interface Power Distribution Module (IPDM)	White
2	TM5NS31	Sercos III Bus Interface module	White
3	TM5SPS3	Interface Power Distribution Module (IPDM)	Grey
4	TM5ACTB12PS	Terminal block for PDM, IPDM and receiver electronic module	Grey

NOTE: For more information, refer to TM5 Bus Bases and Terminal Blocks.

Status LEDs

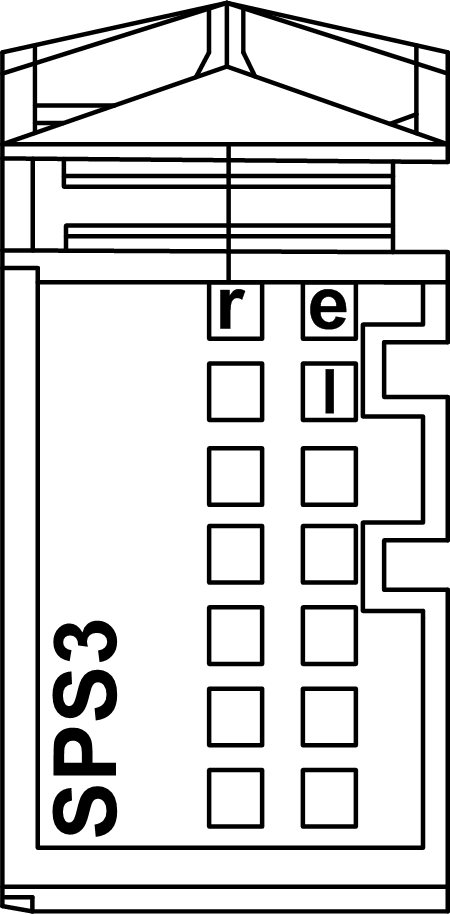

The following figure and table provide the TM5SPS3 IPDM status LEDs:

LED	Color	Status	Description
r	Green	Off	Power supply not connected
		Single flash	Reset status
		Flashing	TM5 expansion bus in preoperational status
		On	RUN status
e	Red	Off	OK or module not connected
e	Red	Double flash	Indicates one of the following conditions: o24 Vdc I/O power segment, via the external power supply or supplies, is too low. oTM5 power bus, via the external power supply or supplies, is too low.
e+r	Steady red/single green flash		Invalid firmware
l	Red	Off	The TM5 Interface Power Distribution Module (IPDM) supply is within the acceptable range.
l	Red	On	The TM5 Interface Power Distribution Module (IPDM) supply is insufficient.
