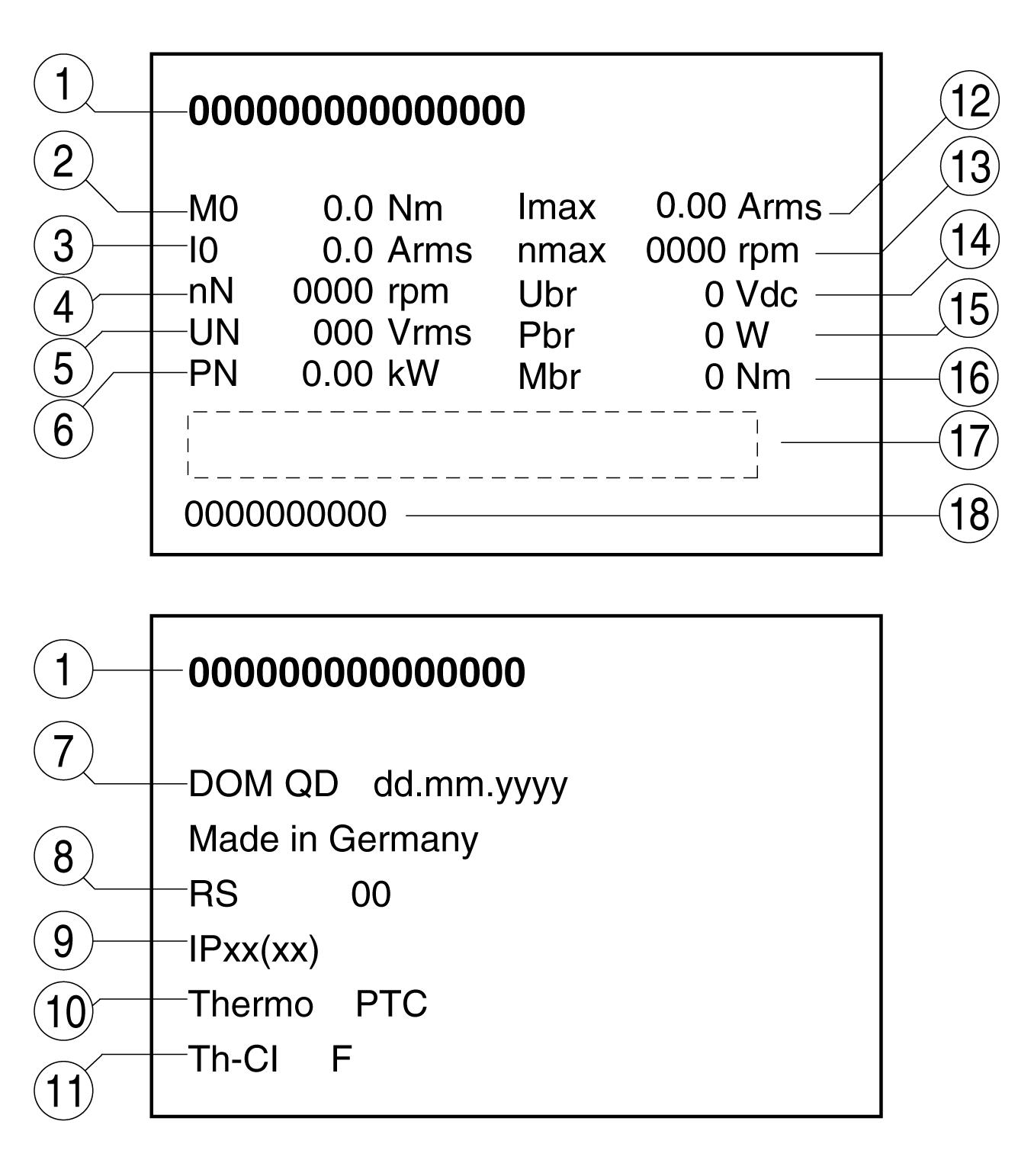

The nameplate contains the following data:
1 Motor type, see Type Code
2 Continuous stall torque
3 Continuous stall current
4 Nominal speed of rotation
5 Maximum nominal value of supply voltage
6 Nominal power
7 Date of manufacture
8 Hardware version
9 Degree of protection (housing without shaft bushing)
10 Temperature sensor
11 Thermal class
12 Maximum current
13 Maximum speed of rotation
14 Nominal voltage holding brake
15 Nominal power (electrical pull-in power) holding brake
16 Holding torque holding brake
17 Barcode
18 Serial number
The nameplate contains the following data:
1 Motor type, see Type Code
2 Identification number
3 Continuous stall torque
4 Continuous stall current
5 Nominal speed of rotation
6 Maximum nominal value of supply voltage
7 Nominal power
8 Thermal class
9 Maximum Current
10 Serial number
11 Date of manufacture
12 Hardware version
13 Maximum speed of rotation
14 Degree of protection (housing without shaft bushing)
15 Nominal voltage holding brake
16 Nominal power (electrical pull-in power) holding brake
17 Holding torque holding brake
18 Temperature sensor
19 Barcode
