Safety Terminal Block Presentation

TM5ACTB52FS Features

The Safety Logic Controllers are wired by means of the TM5ACTB52FS Safety terminal block:

Features

Type of terminal block

12-pin, safety coded terminal block

Features

otool-free wiring with push-in technology

osimple wire release using lever

oallows labeling of each terminal

oallows plain text labeling

otest access for standard probes

opotential for customer coding

Ordering Information

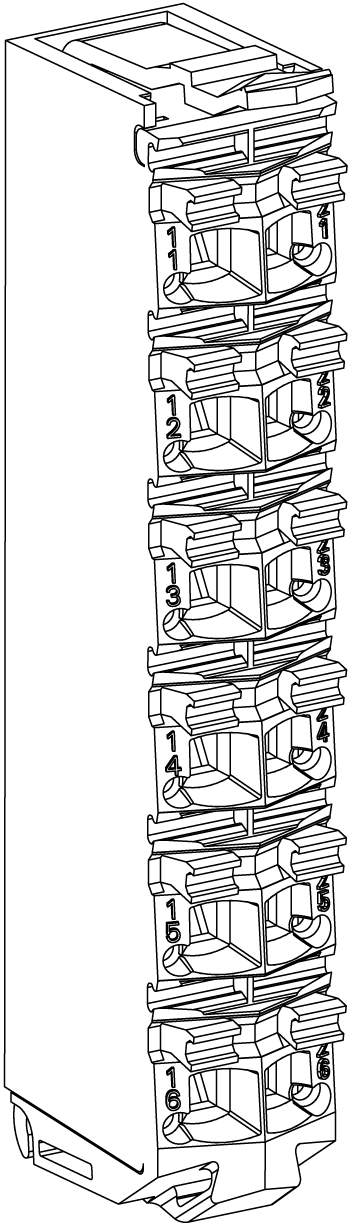

The following figure presents the TM5ACTB52FS Safety terminal block:






The following table presents the reference for the Safety terminal block:

Reference

Description

Color

TM5ACTB52FS

24 Vdc / 230 Vac, 12-pin terminal block for safety-related modules and Safety Logic Controllers, safety coded

red

DangerElectrical_Color.gifDanger_Color.gifDANGER

INCOMPATIBLE COMPONENTS CAUSE ELECTRIC SHOCK OR ARC FLASH

oDo not associate components of a slice that have different colors.

oVerify that correct terminal blocks (minimally, matching colors and correct number of terminals) are installed on the appropriate electronic modules.

Failure to follow these instructions will result in death or serious injury.

Characteristics

This section describes the characteristics of the TM5ACTB52FS Safety terminal block, you can also refer to TM5 Environmental Characteristics.

Danger_Color.gifDANGER

FIRE HAZARD

oUse only the correct wire sizes for the current capacity of the I/O channels and power supplies.

oFor relay output (2 A) wiring, use conductors of at least 0.5 mm2 (AWG 20) with a temperature rating of at least 80 °C (176 °F).

oFor common conductors of relay output wiring (4 A), or relay output wiring greater than 2 A, use conductors of at least 1.0 mm2 (AWG 16) with a temperature rating of at least 80 °C (176 °F).

Failure to follow these instructions will result in death or serious injury.

Warning_Color.gifWARNING

UNINTENDED EQUIPMENT OPERATION

Do not connect wires to unused terminals and/or terminals indicated as “No Connection (N.C.)”.

Failure to follow these instructions can result in death, serious injury, or equipment damage.

Warning_Color.gifWARNING

UNINTENDED EQUIPMENT OPERATION

Do not exceed any of the rated values specified in the characteristics tables.

Failure to follow these instructions can result in death, serious injury, or equipment damage.

The following table lists the characteristics of the TM5ACTB52FS:

Characteristics

Type of terminal block

Push-in terminal block

Distance between contacts

left - right

4.2 mm / 0.16 in

above - below

10.96 mm / 0.43 in

Contact resistance

≤ 5 mΩ

Maximum current carrying capacity of the connector

10 A / contact

NOTE: The electrical characteristics of the individual modules must be respected.

Connection cross section

solid wire

0.08 mm2 ... 2.5 mm2 / AWG 28 ... 14

multi-wire

0.25 mm2 ... 2.5 mm2/ AWG 24 ... 14

with wire cable ends

0.25 mm2 ... 1.5 mm2 / AWG 24 ... 16

-

Up to 2x 0.75 mm2 (AWG 2 x 24 ... 2 x 18) with double wire cable ends

Cable type

Copper wires only

DangerElectrical_Color.gifDanger_Color.gifDANGER

LOOSE WIRING CAUSES ELECTRIC SHOCK

Do not insert more than one wire per connector of the spring terminal blocks unless using a double wire cable end (ferrule).

Failure to follow these instructions will result in death or serious injury.
