FB_SqlDbWrite

Overview

Type:	Function block
Available as of:	V1.0.0.0

Task

The FB_SqlDbWrite function block is used to perform SQL requests that update or modify the SQL database. The requests do not return any data.

Functional Description

The FB_SqlDbWrite function block is the user-interface for updating or modifying the SQL database.

After a rising edge on i_xExecute has been detected, a connection to the SQL Gateway is established using the parameters defined in the structure ST_ConnectionSettings. As soon as the connection has been established, the function block is capable to send one SQL request (given to input i_refRequestWstring) to the SQL database.

As long as the function block is executed, the output q_xBusy is set to TRUE. After a command has been successfully completed, the output q_xDone is set to TRUE.

Status messages and diagnostic information are provided using the outputs q_xError (TRUE if an error has been detected), q_etResult, and q_etResultMsg.

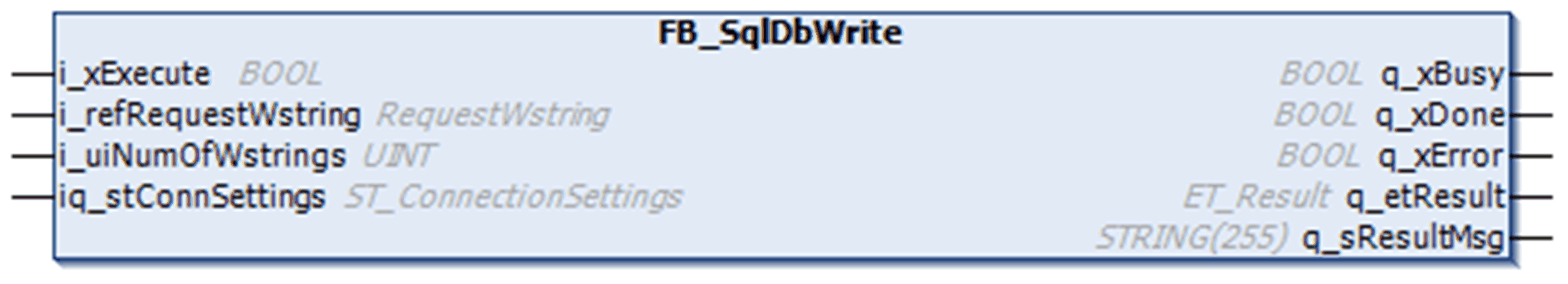

Interface

Input	Data type	Description
i_xExecute	BOOL	The function block performs an SQL request in order to update or modify the SQL database upon rising edge of this input.
i_refRequestWstring	REFERENCE TO [RequestWstring]	Reference to the request data that contains one SQL update request. The following SQL query types are supported: oINSERT INTO oUPDATE oDELETE FROM oCREATE TABLE oCREATE VIEW oCREATE INDEX oALTER TABLE oDROP TABLE oTRUNCATE TABLE Any SQL request must be divided into individual strings that do not exceed a length of 200 characters each. Adapt the size of the global parameters Gc_uiMaxRequest and Gc_uiRequestWstringLength according to the length of the SQL requests that you use in your application. NOTE: To concatenate WSTRINGS, use the CONCAT function of Standard64 library.
i_uiNumOfWstrings	UINT	The number of needed WSTRINGS that contain the split SQL request. The maximum number is limited by the global parameter Gc_uiMaxRequest.

Input

Data type

Description

i_xExecute

BOOL

The function block performs an SQL request in order to update or modify the SQL database upon rising edge of this input.

i_refRequestWstring

REFERENCE TO [RequestWstring]

Reference to the request data that contains one SQL update request.

The following SQL query types are supported:

oINSERT INTO

oUPDATE

oDELETE FROM

oCREATE TABLE

oCREATE VIEW

oCREATE INDEX

oALTER TABLE

oDROP TABLE

oTRUNCATE TABLE

Any SQL request must be divided into individual strings that do not exceed a length of 200 characters each.

Adapt the size of the global parameters Gc_uiMaxRequest and Gc_uiRequestWstringLength according to the length of the SQL requests that you use in your application.

NOTE: To concatenate WSTRINGS, use the CONCAT function of Standard64 library.

i_uiNumOfWstrings

UINT

The number of needed WSTRINGS that contain the split SQL request.

The maximum number is limited by the global parameter Gc_uiMaxRequest.

In_Out	Data type	Description
iq_stConnSettings	ST_ConnectionSettings	Contains the information for connecting to an SQL Gateway and information on the SQL database.

Output	Data type	Description
q_xBusy	BOOL	If this output is set to TRUE, the function block execution is in progress.
q_xDone	BOOL	If this output is set to TRUE, the execution has been completed successfully.
q_xError	BOOL	If this output is set to TRUE, an error has been detected. For details, refer to q_etResult and q_etResultMsg.
q_etResult	ET_Result	Provides diagnostic and status information.
q_sResultMsg	STRING[255]	Provides additional diagnostic and status information.
