Characteristics of the TM2DDO16TK Module
This section provides a description of the power limitation, the electrical and the output characteristics of the TM2DDO16TK module.
See also Environmental Characteristics.
|
|
|
FIRE HAZARD |
|
oUse only the correct wire sizes for the maximum current capacity of the I/O channels and power supplies. |
|
Failure to follow these instructions will result in death or serious injury. |
|
|
|
UNINTENDED EQUIPMENT OPERATION |
|
Do not exceed any of the rated values specified in the environmental and electrical characteristics tables. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |

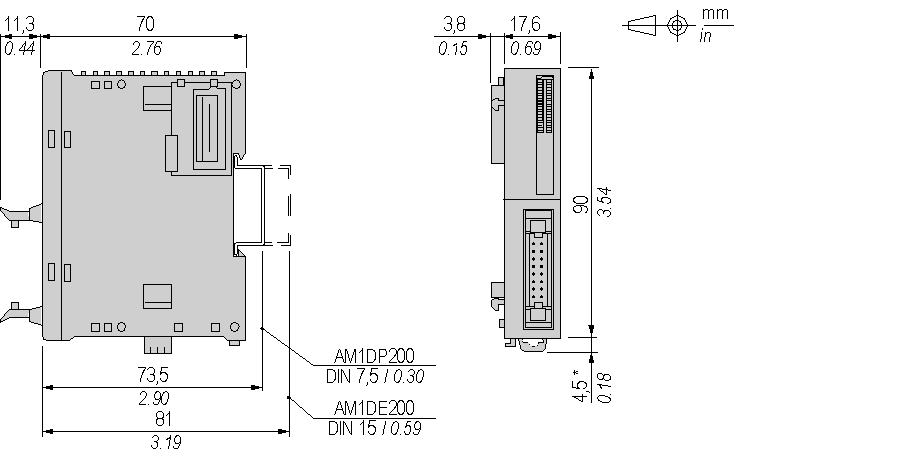

The following diagrams show the dimensions for the TM2DDO16TK module.
NOTE: * 8.5 mm (0.33 in) when the clamp is pulled out.
TM2DDO16TK Electrical Characteristics
|
Isolation between output and internal bus |
500 Vac |
|
Isolation between output terminals |
not isolated |
|
Connector insertion/removal durability |
Over 100 times |
|
Current draw on 5 Vdc internal bus |
15 mA (all outputs on) 5 mA (all outputs off) |
|
Current draw on 24 Vdc internal bus |
20 mA (all outputs on) 0 mA (all outputs off) |
TM2DDO16TK Output Characteristics
|
Output channels |
16 |
|
Common lines |
1 common line for 16 channels |
|
Output current |
0.4 A max per output |
|
2 A max per common line |
|
|
Output voltage |
24 Vdc |
|
Output voltage range |
20.4...28.8 Vdc |
|
Voltage drop |
0.4 Vdc max |
|
Turn on time |
450 µs |
|
Turn off time |
450 µs |
|
Output protection against overcurrent and short circuit |
Current limitation I < 1.7 A 16 outputs switch off Automatic restart when temperature decreases |
|
Protection against reverse polarity |
Yes |
