TM2AVO2HT

Introduction

This expansion module is a 2-point output module with a terminal block.

For further hardware information, refer to TM2AVO2HT.

If you have physically wired the analog channel for a voltage signal and you configure the channel for a current signal in EcoStruxure Machine Expert, you may damage the analog circuit.

NOTICE

INOPERABLE EQUIPMENT

Verify that the physical wiring of the analog circuit is compatible with the software configuration for the analog channel.

Failure to follow these instructions can result in equipment damage.

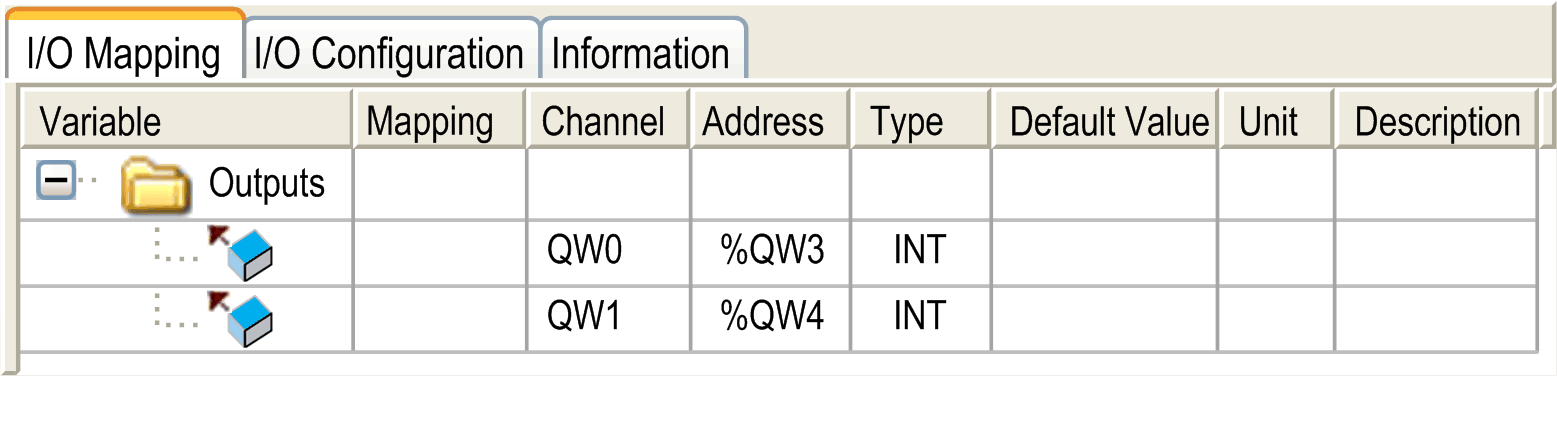

I/O Mapping Tab

This identifies the addresses of each input and the channel name:

Channel	Type	Default Value	Description
QW0	INT	-32768...32767	Command word of the output 0
QW1	INT	-32768...32767	Command word of the output 1

For further generic descriptions, refer to I/O Mapping Tab Description.

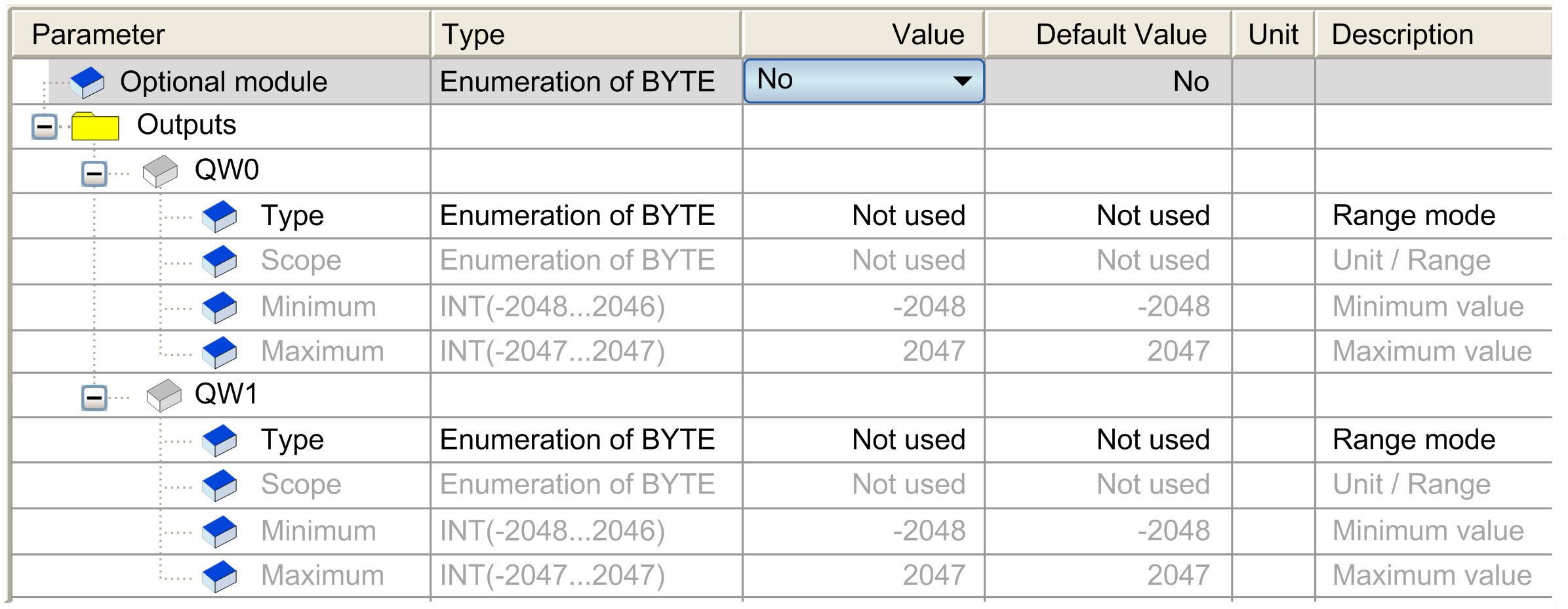

I/O Configuration Tab

This table allows you to configure the module as an optional module and configure the outputs.

If the module is connected to a distributed device, you can configure the fallback behavior.

For each output, you can define:

Parameter		Value	Default Value	Description
Type		Not used -10...10 Vdc	Not used	This identifies the mode of the channel.
Scope		Normal Customized	Normal	This identifies the range of values for the channel.
Minimum	Normal	-2048	-2048	Specifies the lower limit.
Minimum	Customized	-32768...32767	-32768	Specifies the lower limit.
Maximum	Normal	2047	2047	Specifies the upper limit.
Maximum	Customized	-32768...32767	32767	Specifies the upper limit.

For further generic descriptions, refer to I/O Configuration Tab Description.
