TM2AMI2HT

Introduction

This expansion module is a 2-point input module with a terminal block.

For further hardware information, refer to TM2AMI2HT.

If you have physically wired the analog channel for a voltage signal and you configure the channel for a current signal in EcoStruxure Machine Expert, you may damage the analog circuit.

NOTICE

INOPERABLE EQUIPMENT

Verify that the physical wiring of the analog circuit is compatible with the software configuration for the analog channel.

Failure to follow these instructions can result in equipment damage.

I/O Configuration Tab

This table allows you to configure the module as an optional module and configure the inputs.

For each input, you can define:

Parameter		Value	Default Value	Description
Type		Not used 0- 10 V 4 - 20 mA	Not used	This identifies the mode of the channel.
Scope		Normal Customized	Normal	This identifies the range of values for the channel.
Minimum	Normal	0	0	Specifies the lower measurement limit.
Minimum	Customized	-32768...32767	-32768	Specifies the lower measurement limit.
Maximum	Normal	4095	4095	Specifies the upper measurement limit.
Maximum	Customized	-32768...32767	32767	Specifies the upper measurement limit.

For further generic descriptions, refer to I/O Configuration Tab Description.

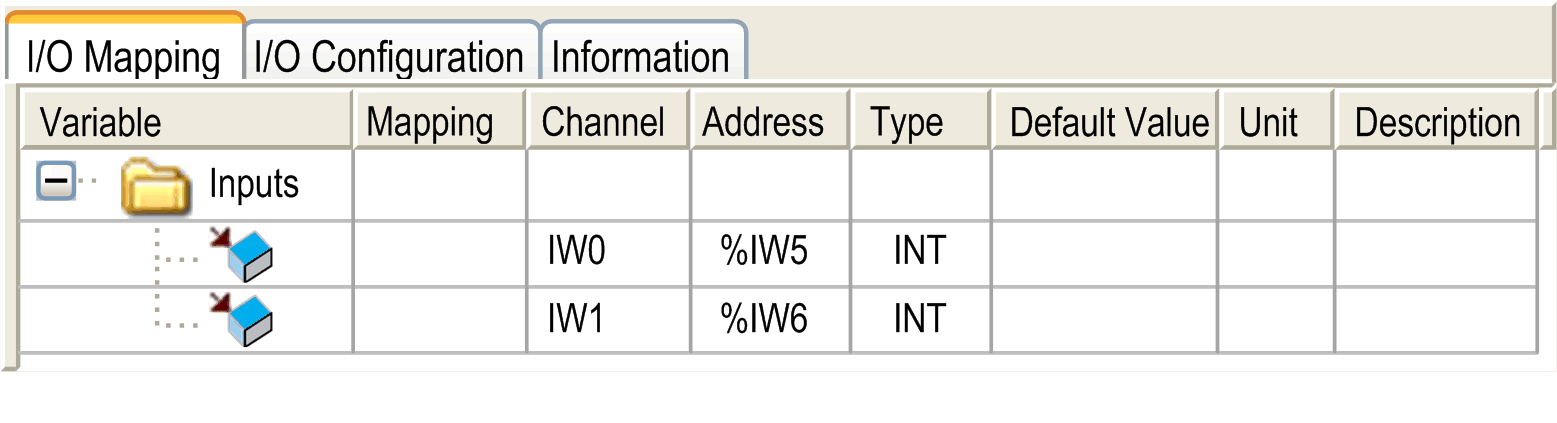

I/O Mapping Tab

This identifies the addresses of each input and the channel name:

Channel	Type	Description
IW0	INT	Current value of the input 0
IW1	INT	Current value of the input 1

For further generic descriptions, refer to I/O Mapping Tab Description.
