TM2DRA16RT

Introduction

This expansion module is a 16-point relay output module with a terminal block.

For further hardware information, refer to TM2DRA16RT.

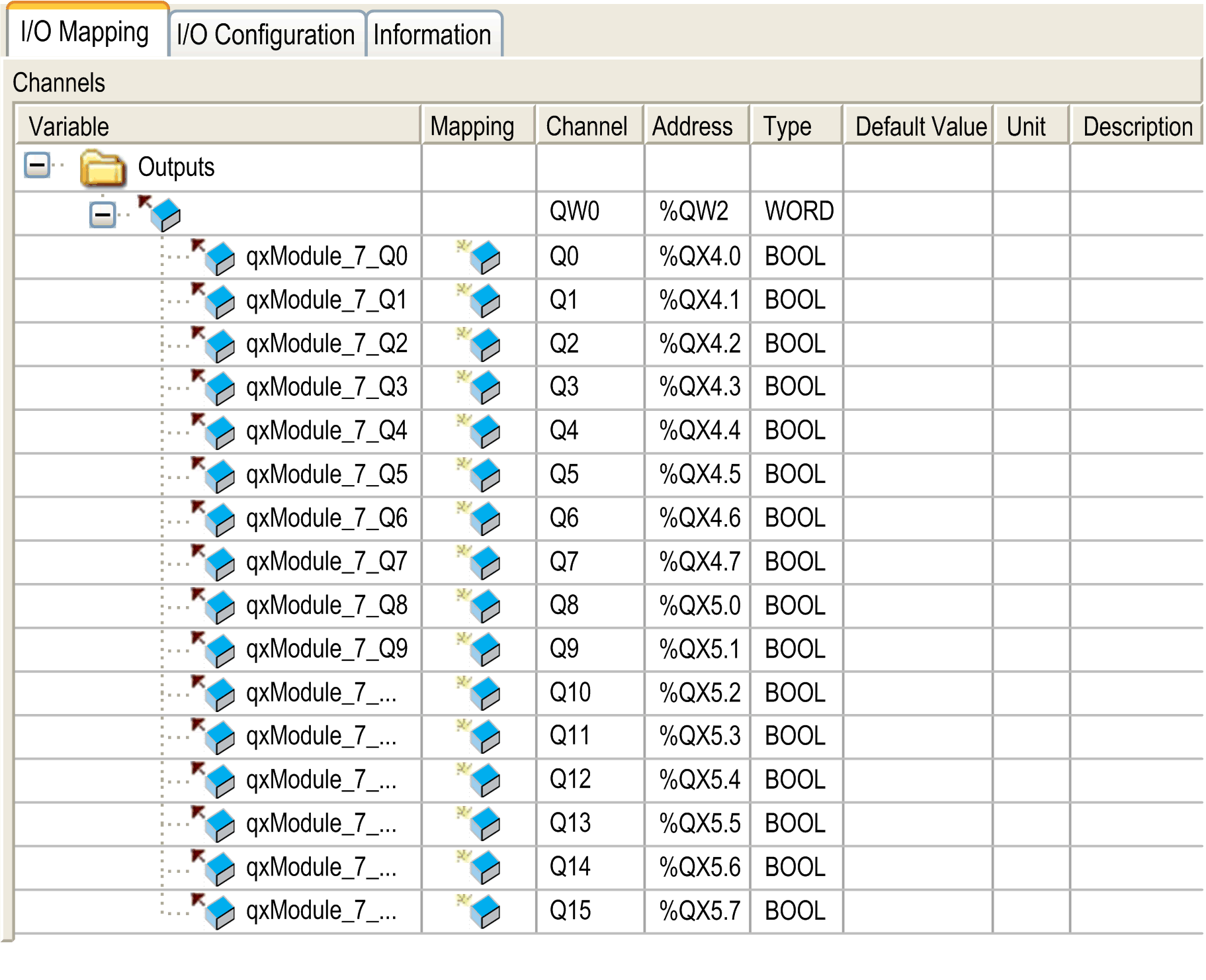

I/O Mapping Tab

This table identifies the addresses of each output and the channel name.

Channel	Type	Default Value	Description
QW0	WORD	-	Command byte of all outputs
Q0	BOOL	- TRUE FALSE	Command bit of output 0
...			...
Q15			Command bit of output 15

For further generic descriptions, refer to I/O Mapping Tab Description.

I/O Configuration Tab

This tab allows you to configure the module as an optional module:

If the module is connected to a distributed device, you can configure the fallback behavior.
