TM3TI4D / TM3TI4DG Wiring Diagram
These expansion modules have a built-in removable screw or spring terminal block for the connection of inputs and power supply.

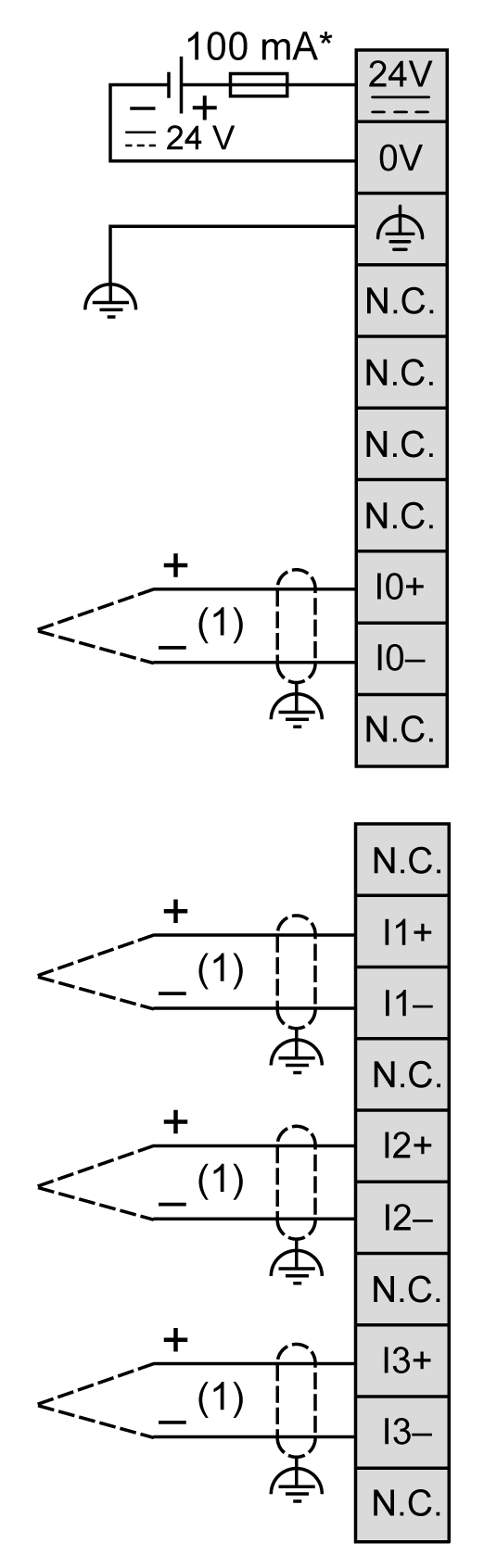

The following figure illustrates the connection between the inputs, the sensors, and their commons:
* Type T fuse
(1) Electrically isolated or non isolated thermocouple
|
|
|
UNINTENDED EQUIPMENT OPERATION |
|
Do not connect wires to unused terminals and/or terminals indicated as “No Connection (N.C.)”. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
