TM3TI8T / TM3TI8TG Wiring Diagram

Introduction

These expansion modules have a built-in removable spring or screw terminal block for the connection of inputs and power supply.

Wiring Rules

See Wiring Best Practices.

Wiring Diagram

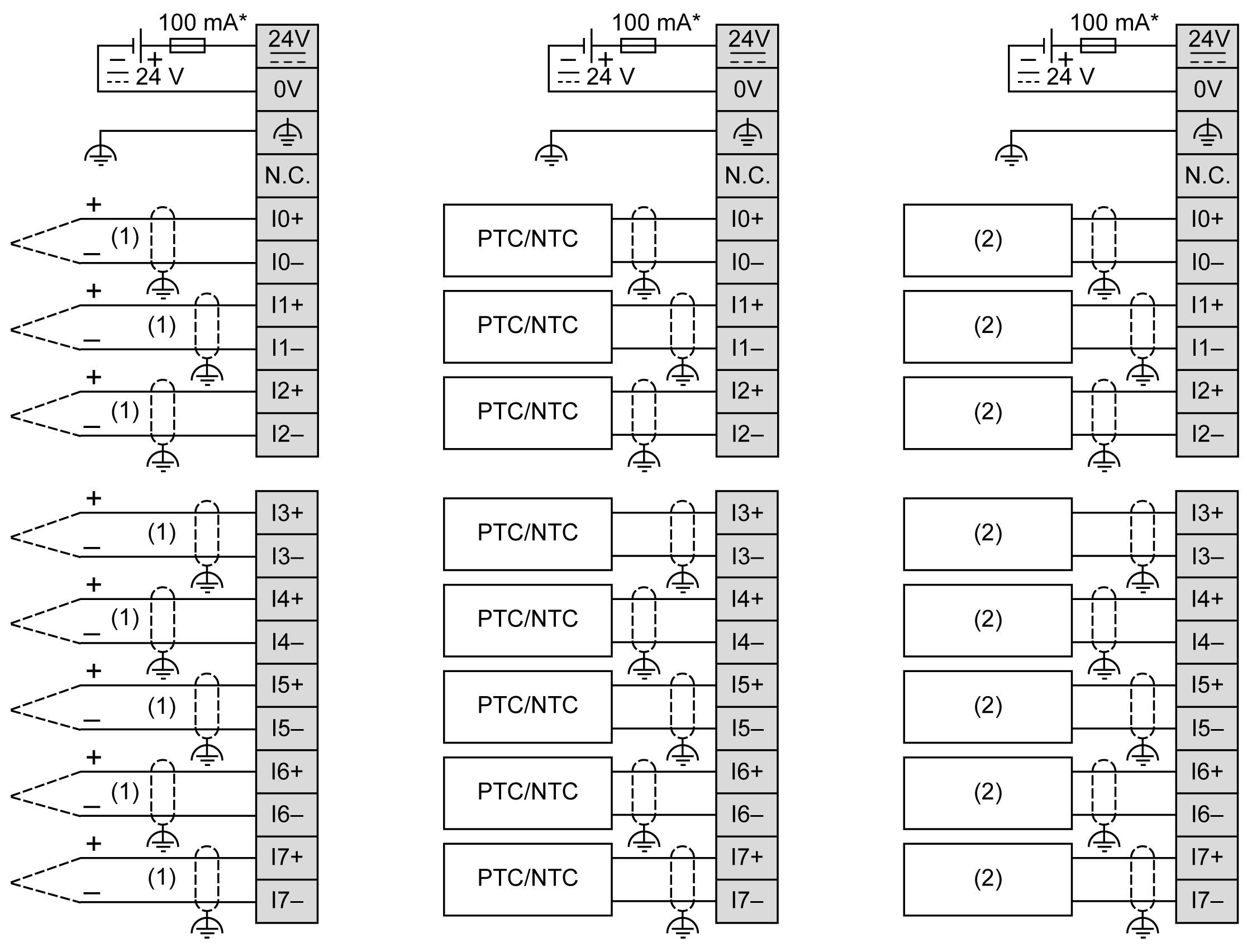

The following figure illustrates the connection between the inputs, the sensors, and their commons:




*   Type T fuse

(1)   Thermocouple

(2)   Resistor

Warning_Color.gifWARNING

UNINTENDED EQUIPMENT OPERATION

Do not connect wires to unused terminals and/or terminals indicated as “No Connection (N.C.)”.

Failure to follow these instructions can result in death, serious injury, or equipment damage.
