TM3DQ16TK Wiring Diagram

Introduction

This expansion module has a built-in HE10 (MIL 20) connector for the connection of outputs and power supply.

Wiring Rules

See Wiring Best Practices.

Wiring Diagram with Free-Wire Cables

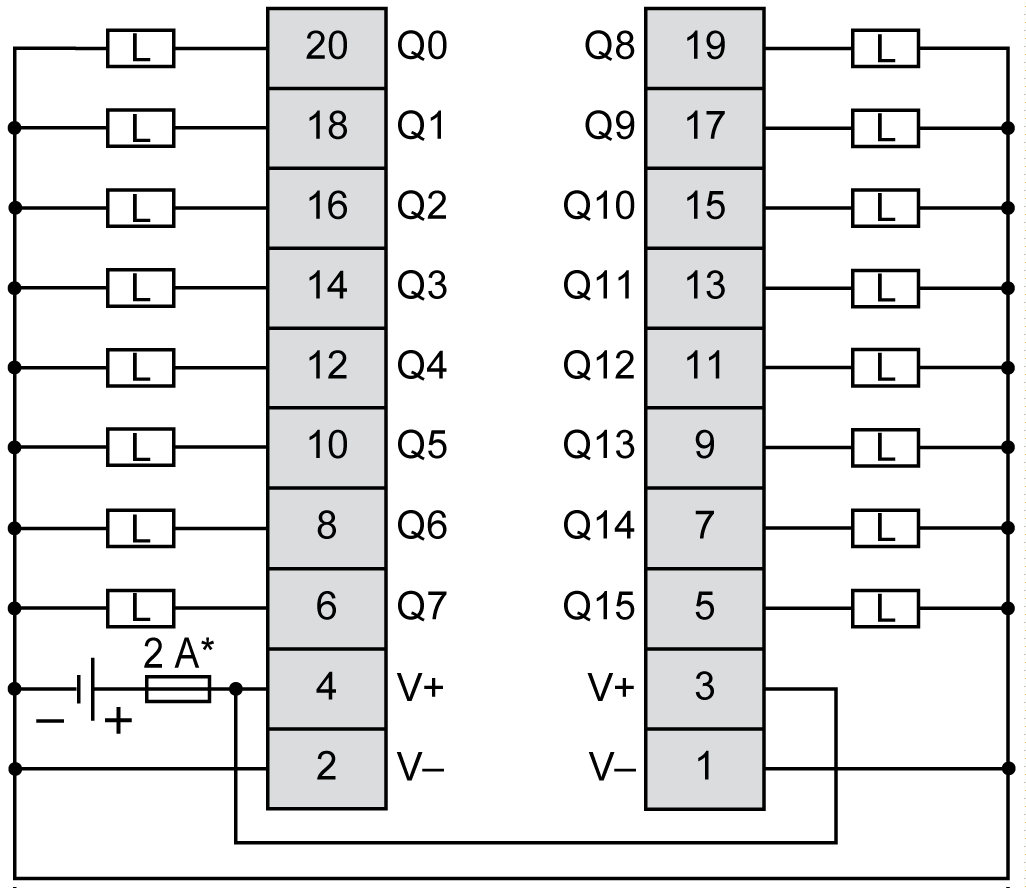

The following figure illustrates the connections between the outputs, the actuators, and their commons:

*   Type T fuse

For information about 24 Vdc power supply, refer to DC Power Supply Characteristics.

For more information on the cable color for TWDFCW30K/TWDFCW50K, refer to TWDFCW••K Cable Description.
