TM3DQ16U / TM3DQ16UG Wiring Diagram

Introduction

These expansion modules have a built-in removable screw or spring terminal block connector for the connection of outputs and power supply.

Wiring Rules

See Wiring Best Practices .

Wiring Diagram

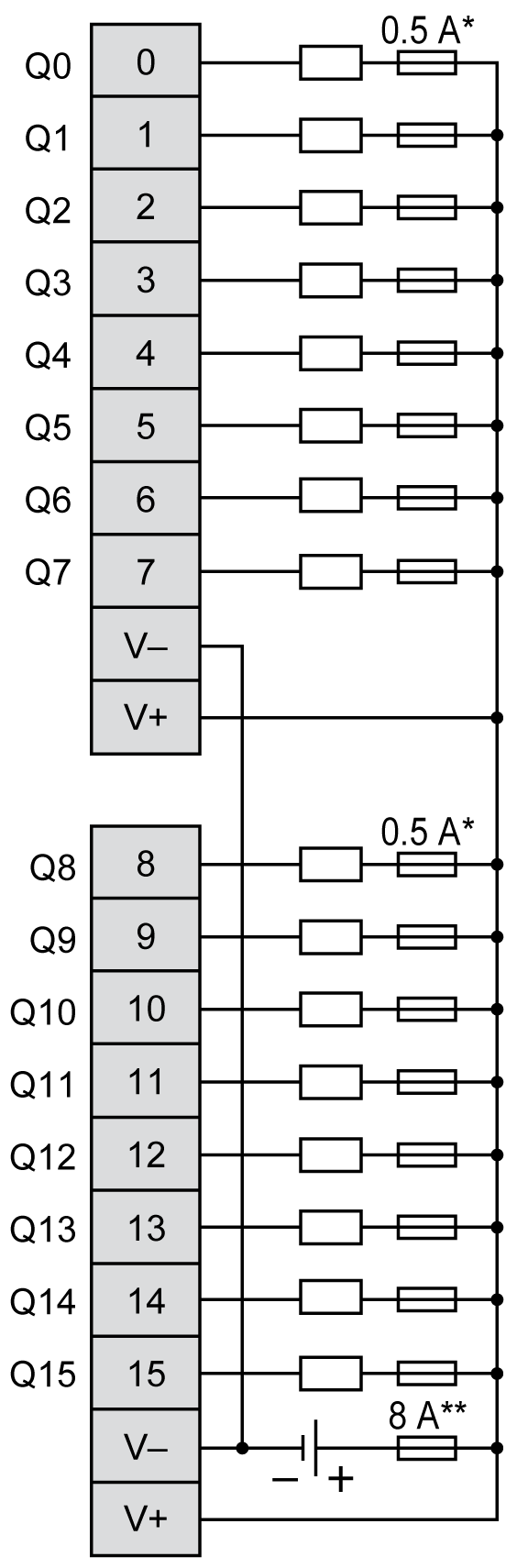

The following figure illustrates the connections between the outputs, the actuators, and their commons:

*   Type T fuse

**   Type F fuse

For information about 24 Vdc power supply, refer to DC Power Supply Characteristics.
