Output Response Time

Description

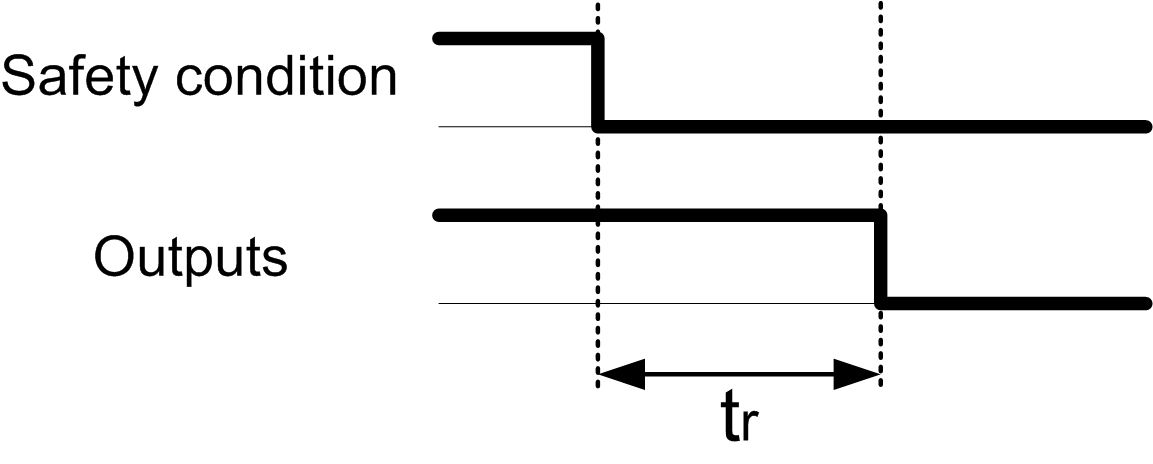

This figure represents the response time (tr) between the opening of one input (safety condition invalid) and all outputs deactivation:






NOTE: tr ≤ 20 ms
