TM3_Safety: Control the TM3 Safety Module

Overview

The TM3_Safety function block is included in the TM3 Safety library.

The IEC Objects tab is only available if a function block instance of a device has been created, which can be accessed by the application. To access the IEC objects, double click the module node > I/O Mapping tab.

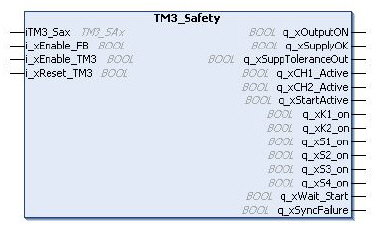

Graphical Representation

I/O Variable Description

This table describes the input variables:

Input	Type	Comment
iTM3_Sax	TM3_SAx	Reference to the local TM3 safety modules.
i_xEnable_FB	BOOL	TRUE enables the function block.
i_xEnable_TM3	BOOL	TRUE enables the activation of the hardware module outputs. NOTE: Enable/disable i_xEnable_FB before enabling/disabling i_xEnable_TM3.
i_xReset_TM3	BOOL	TRUE deactivates the module: the current source is switched off, the outputs are deactivated, and the interlock is reset.

NOTE:

This table describes the output variables:

Output	Type	Comment
q_xOutputON	BOOL	0: safety output is off. 1: safety output is on.
q_xSupplyOK	BOOL	Supply is available.
q_xSuppToleranceOut	BOOL	Supply is out of tolerance.
q_xCH1_Active	BOOL	Channel 1 is active.
q_xCH2_Active	BOOL	Channel 2 is active.
q_xStartActive	BOOL	Start is active.
q_xK1_on	BOOL	Relay K1 is activated.
q_xK2_on	BOOL	Relay K2 is activated.
q_xS1_on	BOOL	S1 is active.
q_xS2_on	BOOL	S2 is active.
q_xS3_on	BOOL	S3 is active.
q_xS4_on	BOOL	S4 is active.
q_xWait_Start	BOOL	Waiting for start condition.
q_xSyncFailure	BOOL	Synchronization time expired.

NOTE: Not all outputs are valid for all TM3 safety module references. To determine which outputs are valid for which TM3 safety module references, see the I/O mapping for the individual references.
