Configure the PROFIBUS DP Slave Module
PROFIBUS DP Slave Module Configuration
In the Devices tree, double-click My Controller > COM_Bus > TM4PDPS1:

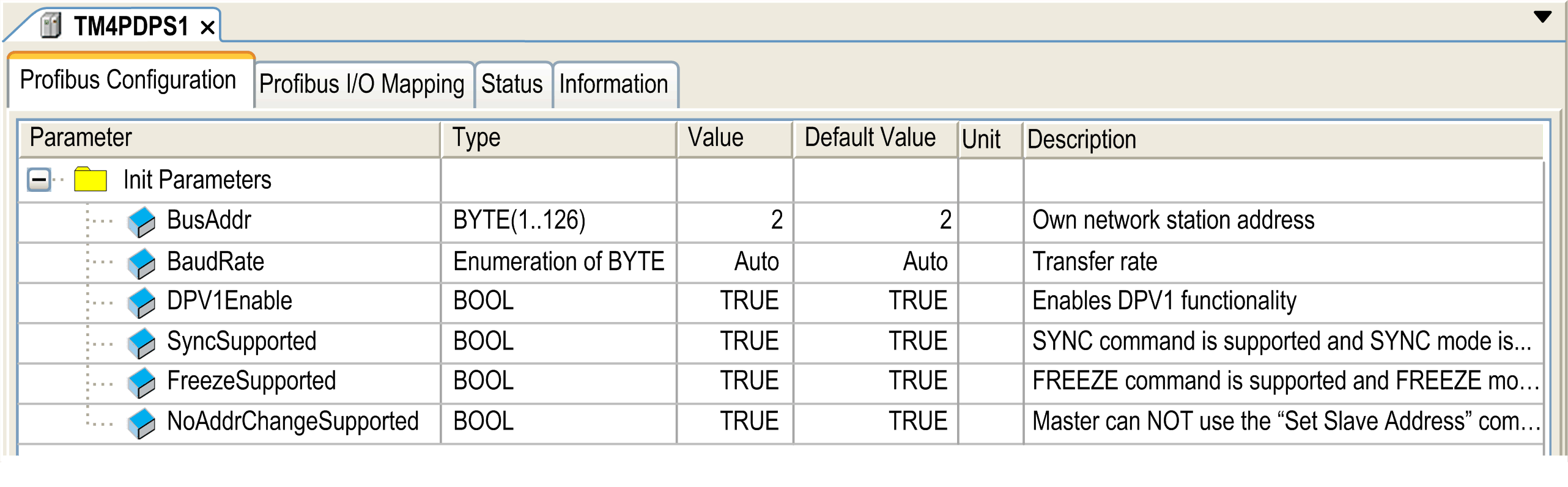

The following parameters are provided in the Profibus Configuration tab:
|
Parameter |
Value |
Default Value |
Description |
|---|---|---|---|
|
BusAddr |
1...126 |
2 |
PROFIBUS DP slave address. The address 126 is reserved. |
|
BaudRate (KBaud) |
9.6 19.2 45.45 93.75 187.5 500 1500 3000 6000 12000 Auto |
Auto |
PROFIBUS transmission rate |
|
DPV1Enable |
TRUE FALSE |
TRUE |
TRUE = Profibus DPV1 functions for acyclic communication enable |
|
SyncSupported |
TRUE FALSE |
TRUE |
TRUE = sync mode, that supports the sync command, enable |
|
FreezeSupported |
TRUE FALSE |
TRUE |
TRUE = freeze mode, that supports the freeze command, enable |
|
NoAddrChangeSupported |
TRUE FALSE |
TRUE |
TRUE = blocks a PROFIBUS master from changing the address |
