Connecting the Controller to a PC
To transfer, run, and monitor the applications, connect the controller to a computer that has EcoStruxure Machine Expert installed. Use either a USB cable or an Ethernet connection (for those references that support an Ethernet port).
|
NOTICE |
|
INOPERABLE EQUIPMENT |
|
Always connect the communication cable to the PC before connecting it to the controller. |
|
Failure to follow these instructions can result in equipment damage. |

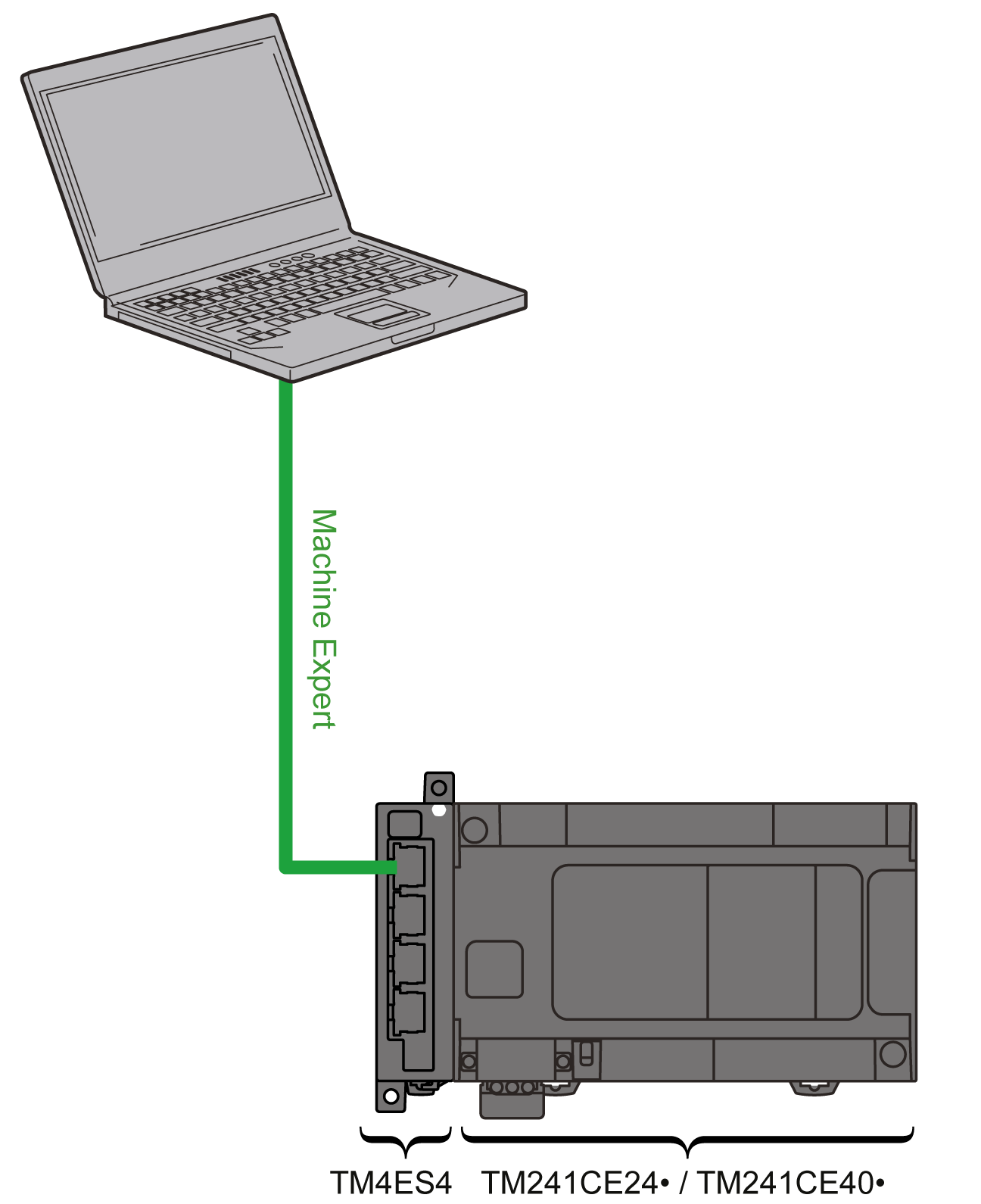

You can connect the controller to a PC using an Ethernet cable.
|
Step |
Action |
|---|---|
|
1 |
Connect your Ethernet cable to the PC. |
|
2 |
Connect your Ethernet cable to a free Ethernet port on the TM4ES4 expansion module. |
