The tables describe the main characteristics of the TM5SMM6D2L electronic module:
|
Main Characteristics of Digital Input / Output Channels |
|
|---|---|
|
Number of digital input channels |
4 |
|
Number of digital output channels |
2 |
|
Input type |
Type 1 |
|
Input signal type |
Sink |
|
Rated input voltage |
24 Vdc |
|
Output type |
Transistor |
|
Output signal type |
Source |
|
Output current |
0.5 A max. |
|
Main Characteristics of Analog Input / Output Channels |
||
|---|---|---|
|
Number of analog input channels |
1 |
|
|
Number of analog output channels |
1 |
|
|
Signal type |
Voltage |
Current |
|
Input range |
-10...+10 Vdc |
0...20 mA / 4...20 mA |
|
Output range |
-10...+10 Vdc |
0...20 mA |
|
Resolution |
12 bits + sign |
12 bits |
The illustration shows the TM5SMM6D2L:
The table shows the model numbers for the terminal block and the bus bases associated with the TM5SMM6D2L:
|
Number |
Reference |
Description |
Color |
|---|---|---|---|
|
1 |
TM5ACBM11 or TM5ACBM15 |
Bus base
Bus base with address setting |
White
White |
|
2 |
TM5SMM6D2L |
Electronic module |
White |
|
3 |
TM5ACTB12 |
Terminal block, 12 pins |
White |
NOTE: For more information, refer to TM5 bus bases and terminal blocks.

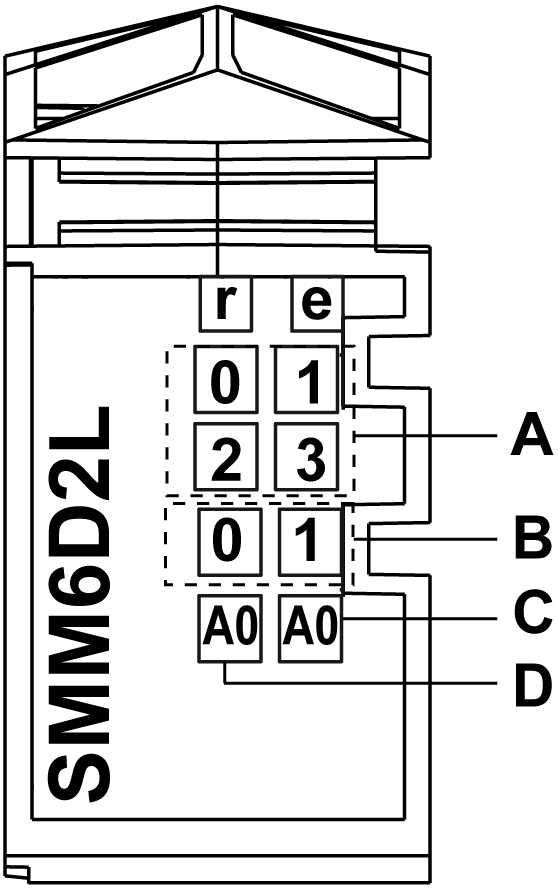

The following illustration describes the LEDs for TM5SMM6D2L:
The table shows the TM5SMM6D2L input status LEDs:
|
Position in Illustration |
LED |
Color |
Status |
Description |
|---|---|---|---|---|
|
– |
r |
Green |
Off |
No power supply |
|
Single flash |
Reset state |
|||
|
Flashing |
Preoperational state |
|||
|
On |
Normal operation |
|||
|
– |
e |
Red |
Off |
OK or no power supply |
|
Single flash |
Error detected on output channels |
|||
|
– |
e+r |
Steady red / Single green flash |
Invalid firmware |
|
|
A |
0 - 3 |
Green |
Off |
Corresponding digital input deactivated |
|
On |
Corresponding digital input activated |
|||
|
B |
0 - 1 |
Orange |
Off |
Corresponding digital output deactivated |
|
On |
Corresponding digital output activated |
|||
|
C |
A0 |
Orange |
Off |
The value = 0. |
|
On |
The value ≠ 0. |
|||
|
D |
A0 |
Green |
Off |
The connection is open or the sensor is disconnected. |
|
Flashing |
Overflow or underflow of the input signal |
|||
|
On |
The analog / digital converter is running, the value is OK. |
|||
