Each fieldbus interface consists of four elements. These elements are the:
oFieldbus interface bus base
oFieldbus interface module
oInterface Power Distribution Module (IPDM)
The following figure shows the different parts that compose the TM5 fieldbus interface:
(1) Fieldbus interface bus base
(2) Fieldbus interface module
(3) Interface Power Distribution Module (IPDM)
(4) Terminal block
When assembled the four elements form an integral unit that resists vibration and electrostatic discharge.
|
NOTICE |
|
ELECTROSTATIC DISCHARGE |
|
oDo not touch the pin connectors of the block. oKeep the cables or sealing plugs in place during normal operation. |
|
Failure to follow these instructions can result in equipment damage. |

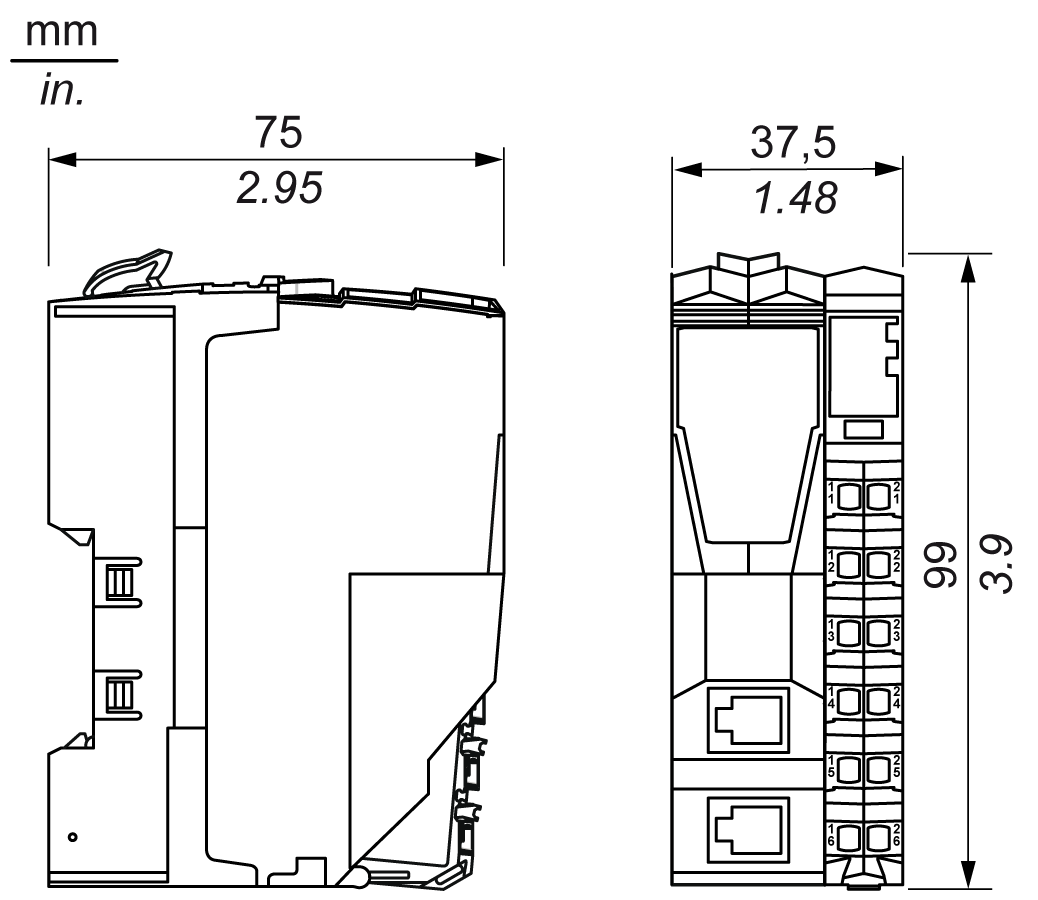

The following figure shows the dimensions of the TM5 fieldbus interface:
Refer to the Installation of Accessories.
Refer to the Labeling the TM5 System.
