Adding an Expansion Block

Procedure

To add an expansion block to your controller, select the expansion block in the Hardware Catalog, drag it to the Devices tree, and drop it on one of the highlighted nodes.

For more information on adding a device to your project, refer to:

• Using the Drag-and-drop Method

• Using the Contextual Menu or Plus Button

I/O Configuration

Step	Action
1	Select the Devices tree tab.
2	Double-click the expansion block node. Result: The TM7 Module I/O Mapping tab of the block appears.

Step

Action

Select the Devices tree tab.

Double-click the expansion block node.

Result: The TM7 Module I/O Mapping tab of the block appears.

TM7 Module I/O Mapping Tab Description

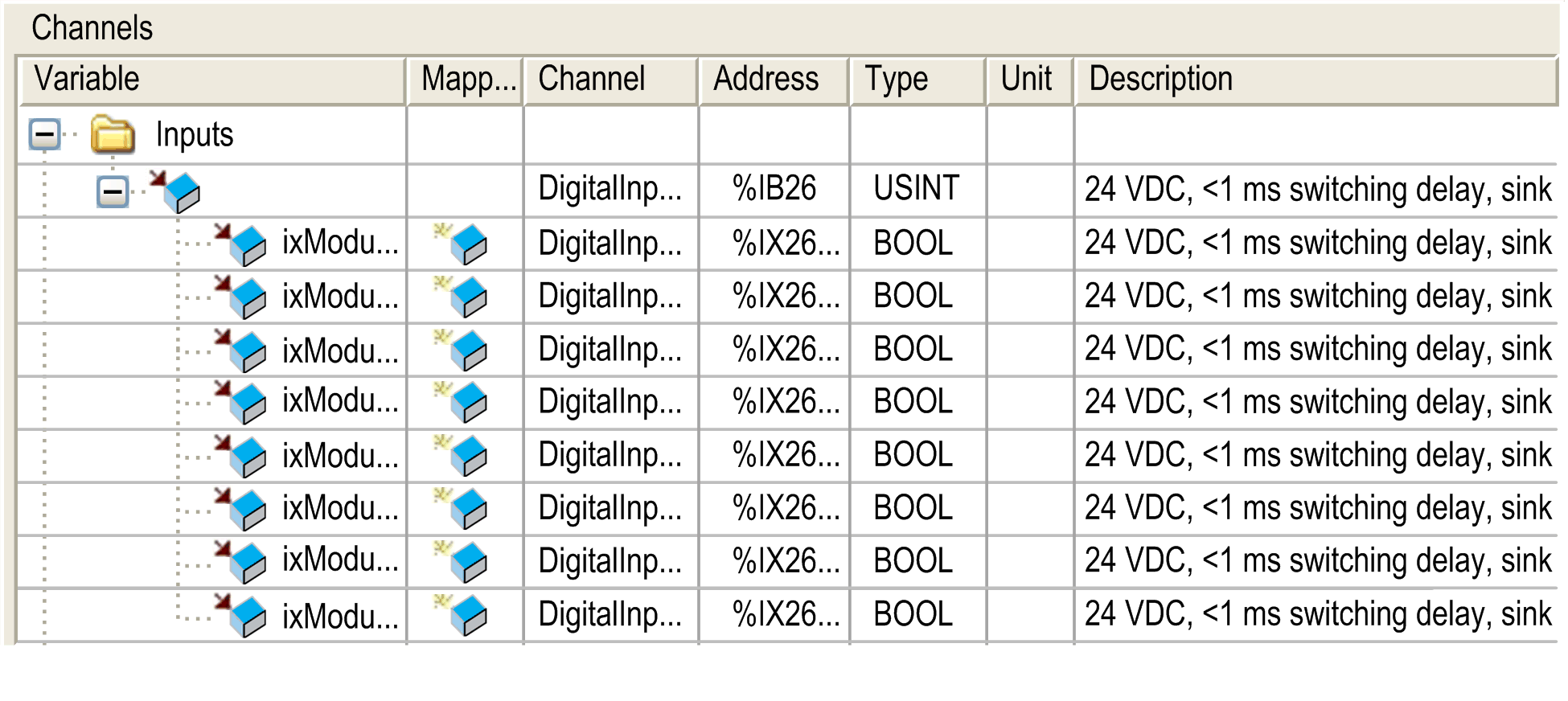

Variables can be defined and named in the I/O Mapping tab. Additional information such as topological addressing is also provided in this tab:

The I/O Mapping tab contains the following columns:

Column	Description
Variable	Lets you map the channel on a variable. Double-click the icon to enter the variable name. If it is a new variable, the variable is created. It is also possible to map an existing variable from the Variables tab of the Software Catalog by a drag-and-drop action.
Mapping	Indicates if the channel is mapped on a new variable or an existing variable.
Channel	Name of the channel of the device.
Address	Address of the channel.
Type	Data type of the channel.
Unit	Unit of the channel value.
Description	Description of the channel.

NOTE: %I value is updated from physical information at the beginning of each task using the %I.

Physical output level is updated from memory variable for the outputs value within the task configured by Bus cycle task configuration.

For more details on Bus cycle task, refer to Logic Controller PLC Settings or Motion Controller PLC Settings.

User-Defined Parameters Tab Description

The User-Defined Parameters tab allows you to configure the expansion module.

Click Defaults to reset the values to the original values.
