This section provides a general description of the TMC4AQ2 cartridge characteristics.
|
|
|
UNINTENDED EQUIPMENT OPERATION |
|
Do not exceed any of the rated values specified in the environmental and electrical characteristics tables. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
NOTE: For important safety information and the environment characteristics of the TMC4 cartridges, see the M241 Logic Controller Hardware Guide.

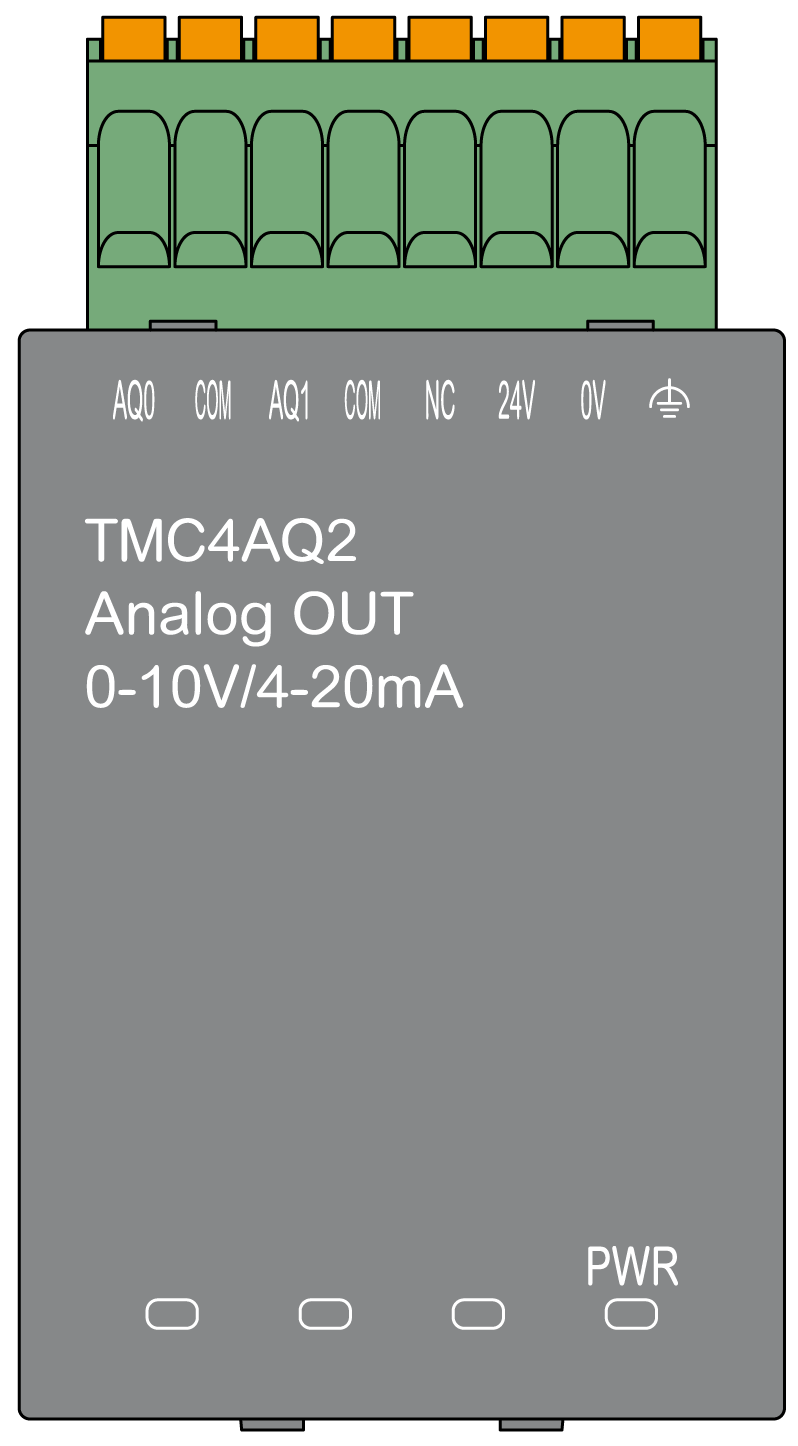

The following diagram shows a TMC4AQ2 cartridge marking and connectors:
The following table describes the cartridge output characteristics:
|
Characteristics |
Value |
||
|---|---|---|---|
|
|
Signal Type |
Voltage |
Current |
|
Rated output range |
0...10 Vdc |
4...20 mA (dc) |
|
|
Load impedance |
> 2 KΩ |
< 500 Ω |
|
|
Application load type |
resistive load |
||
|
Settling time |
10 ms |
||
|
Total output system transfer time |
10 ms + 1 scan time |
||
|
Maximum accuracy at ambient temperature without EMC disturbance: 25 °C (77 °F) |
± 0.2 % of full scale |
||
|
Temperature drift |
± 0.006 % of full scale per 1 °C (1.8 °F) |
||
|
Repeatability after stabilization time |
± 0.5 % of full scale |
||
|
Non-linearity |
± 0.05 % of full scale |
||
|
Output ripple |
± 20 mV |
||
|
Output voltage drop |
1 % |
||
|
Overshoot |
0 % |
||
|
Maximum output deviation |
± 0.5 % of full scale |
||
|
Digital resolution |
16 bits (65536 steps) |
||
|
Output value of LSB |
0.153 mV |
0.305 μA |
|
|
Data type in application program |
0...4095 |
||
|
Noise resistance |
maximum temporary deviation during perturbations |
± 2 % of full scale |
|
|
cable type and maximum length |
shielded |
||
|
< 30 m (98.4 ft) |
|||
|
external crosstalk (minimum) |
80 dB |
||
|
50/60 Hz common-mode rejection ratio (minimum) |
90 dB |
||
|
Isolation |
isolation between outputs and internal logic |
500 Vdc |
|
|
isolation between outputs |
not isolated |
||
|
Output protection |
short circuit protection |
open circuit protection |
|
|
Behavior when internal power supply level is lower than threshold |
outputs are set to 0 |
||
|
Behavior when external power is not applied |
PWR LED flashing |
||
|
External power supply |
supply voltage |
24 Vdc ± 15 % |
|
|
power consumption |
2 W |
||
