Replacement Equipment and Accessories of the

Overview

The following replacement equipment and accessories are listed:

oClamping hubs

oDeflection pulleys

oSensor extension cables

oToothed belt pulleys

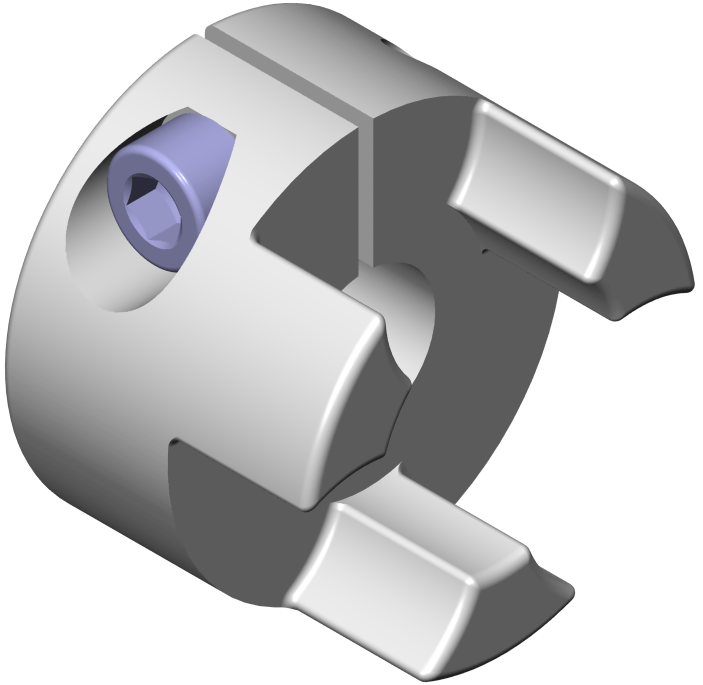

Clamping Hubs

Order data

Representation	Description	Axis	ØD in mm (in)⁽¹⁾	Order number
	For mounting attachments to the shaft of the motor or gearbox: o1x clamping hub with tensioning screw	CAR40 CAR41	6.35 (0.25)	SPM3MFCC06A06
			8 (0.315)	SPM3MFCC08A06
			9 (0.354)	SPM3MFCC09A06
			10 (0.39)	SPM3MFCC10A06
			11 (0.43)	SPM3MFCC11A06
			12 (0.47)	SPM3MFCC12A06
			14 (0.55)	SPM3MFCC14A06
		CAR42 CAR43 CAR44	6.35 (0.25)	SPM3MFCC06A07
			8 (0.315)	SPM3MFCC08A07
			9 (0.354)	SPM3MFCC09A07
			10 (0.39)	SPM3MFCC10A07
			11 (0.43)	SPM3MFCC11A07
			12 (0.47)	SPM3MFCC12A07
			14 (0.55)	SPM3MFCC14A07
			16 (0.63)	SPM3MFCC16A07
			19 (0.75)	SPM3MFCC19A07
			20 (0.79)	SPM3MFCC20A07
(1) Refer to dimensional drawing (following table).

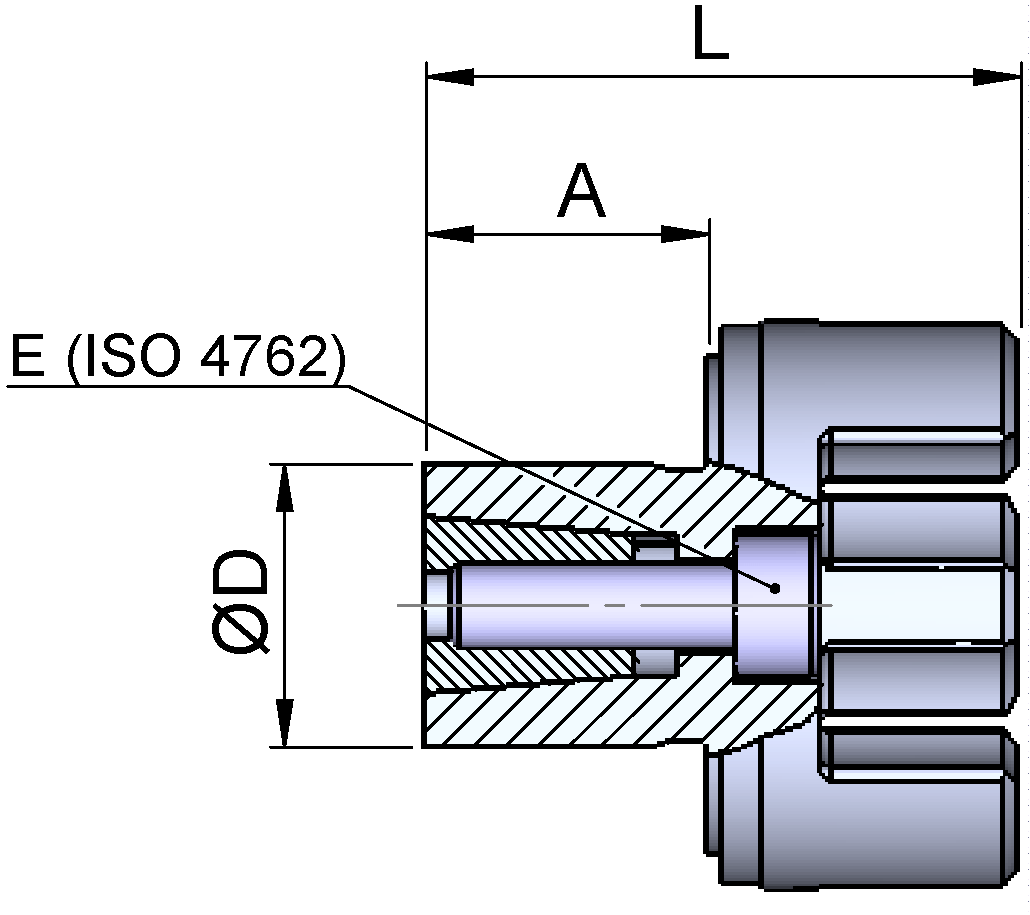

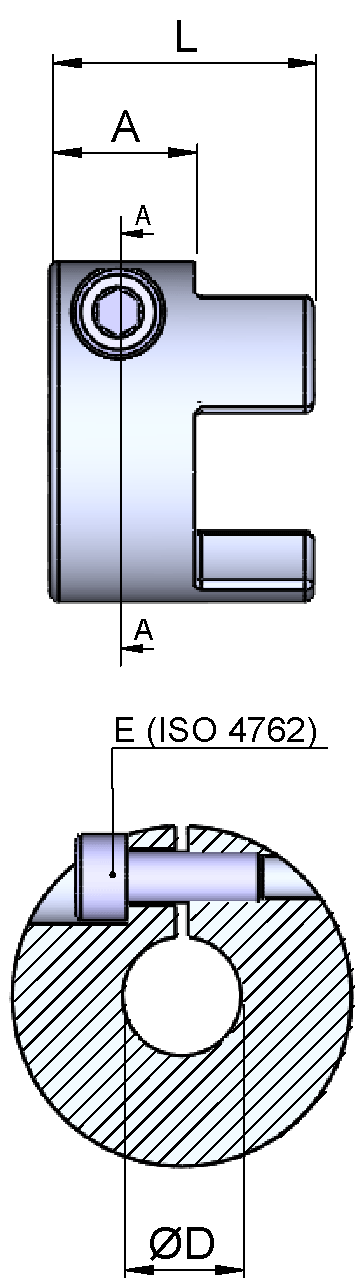

Dimensional drawing	Parameter	Symbol	Unit	Axis
Dimensional drawing	Parameter	Symbol	Unit	CAR40 CAR41	CAR42 CAR43 CAR44
	Moment of inertia	J	kg·cm² (lb·in²)	0.015 (0.0051)	0.15 (0.051)
	Tightening torque	–	Nm (lbf-in)	1.9 (16.8)	14 (14)
	Screw ISO 4762	E	–	M3	M6
	Dimension	A	mm (in)	11 (0.43)	17 (0.67)
		ØD		⁽¹⁾	⁽¹⁾
		L		22 (0.87)	31 (1.22)

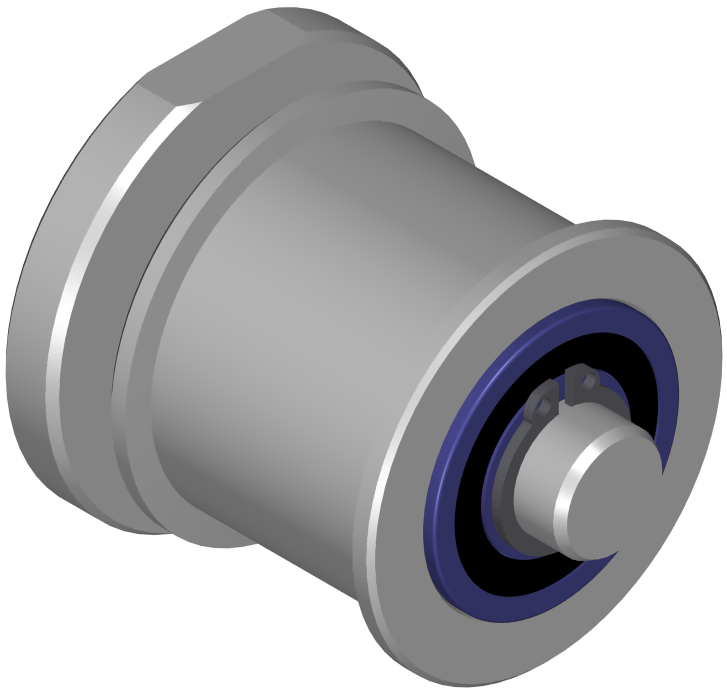

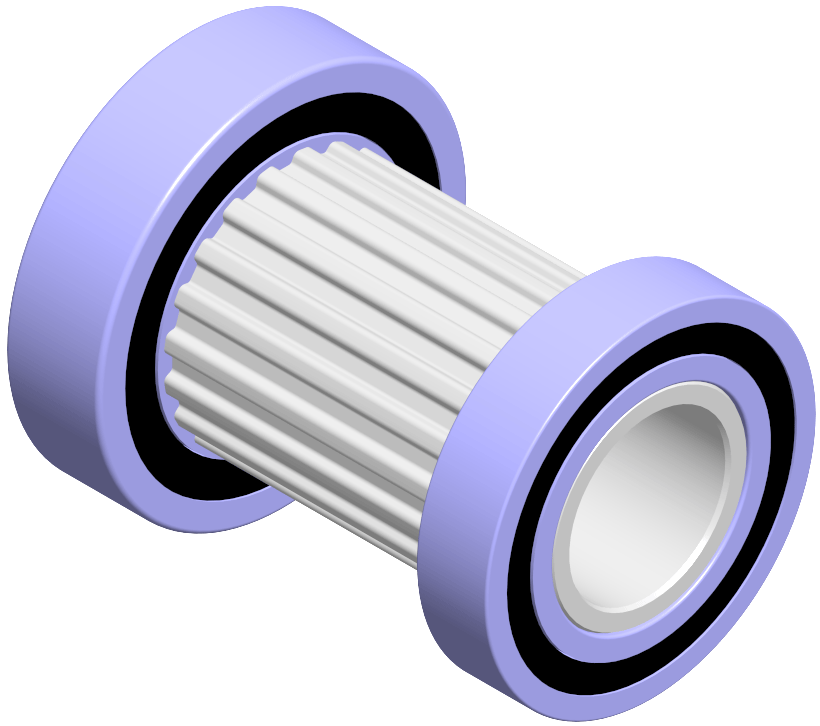

Deflection Pulleys

Order data

Description	Axis	Characteristic feature	Order number
For deflecting the toothed belt: o2x deflection pulleys with bearing bolts, ball bearings, and circlips	CAR41	Standard	SPM3MDPR41S
	CAR41	Increased corrosion resistance	SPM3MDPR41C
	CAR42	Standard	SPM3MDPR42S
	CAR42	Increased corrosion resistance	SPM3MDPR42C
	CAR43	Standard	SPM3MDPR43S
	CAR43	Increased corrosion resistance	SPM3MDPR43C
	CAR44	Standard	SPM3MDPR44S
	CAR44	Increased corrosion resistance	SPM3MDPR44C

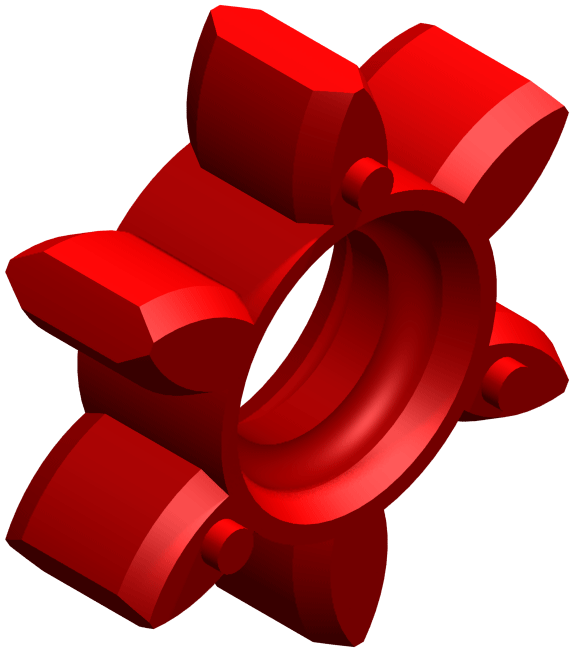

Elastomer Spiders

Order data

Representation	Description	Axis	Order number
	For decoupling the expanding hub and the clamping hub: o1x elastomer spider, red	CAR40 CAR41	SPM3MFR09A018
CAR42 CAR43 CAR44	SPM3MFR14A034

Representation

Description

Axis

Order number

For decoupling the expanding hub and the clamping hub:

o1x elastomer spider, red

CAR40

CAR41

SPM3MFR09A018

CAR42

CAR43

CAR44

SPM3MFR14A034

NOTE: Observe the maximum permissible drive torque of the axis. The elastomer spider can transmit a greater torque than the axis can accept.

Dimensions

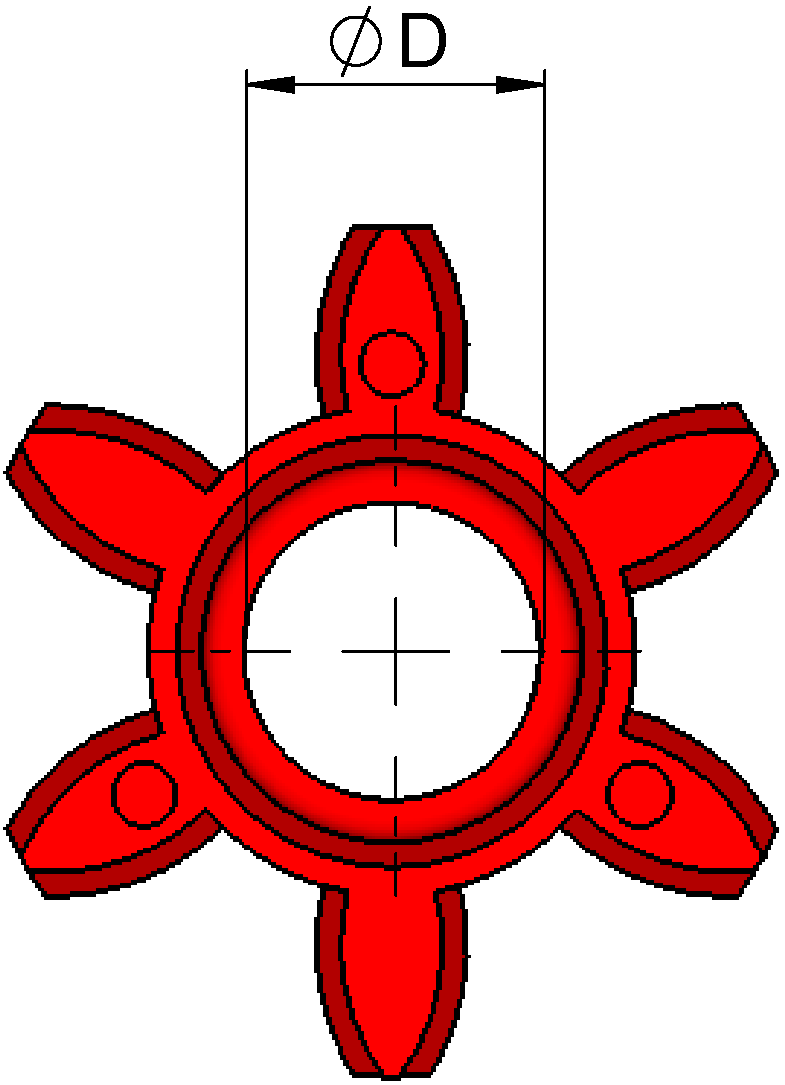

Dimensional drawing	Definition	Symbol	Unit	Axis
Dimensional drawing	Definition	Symbol	Unit	CAR40 CAR41	CAR42 CAR43 CAR44
	Moment of inertia	J	kg·cm² (lb·in²)	0.001 (0.00034)	0.013 (0.0044)
	Shore hardness	–	SH A	98	98
	Color	–	–	Red	Red
	Dimension	ØD	mm (in)	9 (0.354)	14 (0.55)

Expanding Hubs

Order data

Representation	Description	Axis	Order number

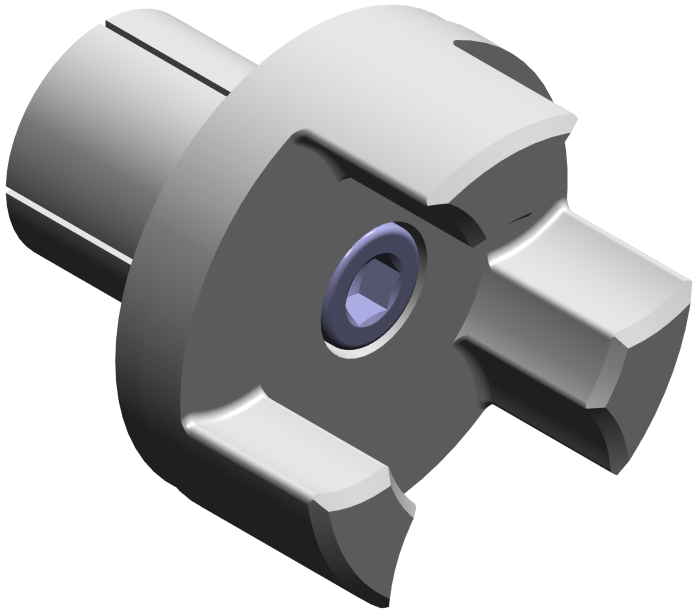

	For mounting the motor or gearbox: o1x expanding hub with cone and tensioning screw	CAR40 CAR41	SPM3MFSC10A14
CAR42 CAR43 CAR44	SPM3MFSC20A20

Representation

Description

Axis

Order number

For mounting the motor or gearbox:

o1x expanding hub with cone and tensioning screw

CAR40

CAR41

SPM3MFSC10A14

CAR42

CAR43

CAR44

SPM3MFSC20A20

Dimensions

Dimensional drawing	Definition	Symbol	Unit	Axis
Dimensional drawing	Definition	Symbol	Unit	CAR40 CAR41	CAR42 CAR43 CAR44
	Moment of inertia	J	kg·cm² (lb·in²)	0.009 (0.0031)	0.09 (0.031)
	Tightening torque	M_t	Nm (lbf-in)	2.9 (25.7)	10 (89)
	Screw ISO 4762	E	–	M4	M6
	Dimension	A	mm (in)	14 (0.55)	20 (0.79)
		ØD		10 (0.39)	20 (0.79)
		L		30 (1.18)	42 (1.65)

Gearboxes

For detailed information about appropriate gearboxes for the axis, contact your local Schneider Electric service representative.

NOTE: If adaptation materials are necessary, they must be ordered with the gearbox.

Locating Dowels

Order data

Representation	Description	Axis	Order number

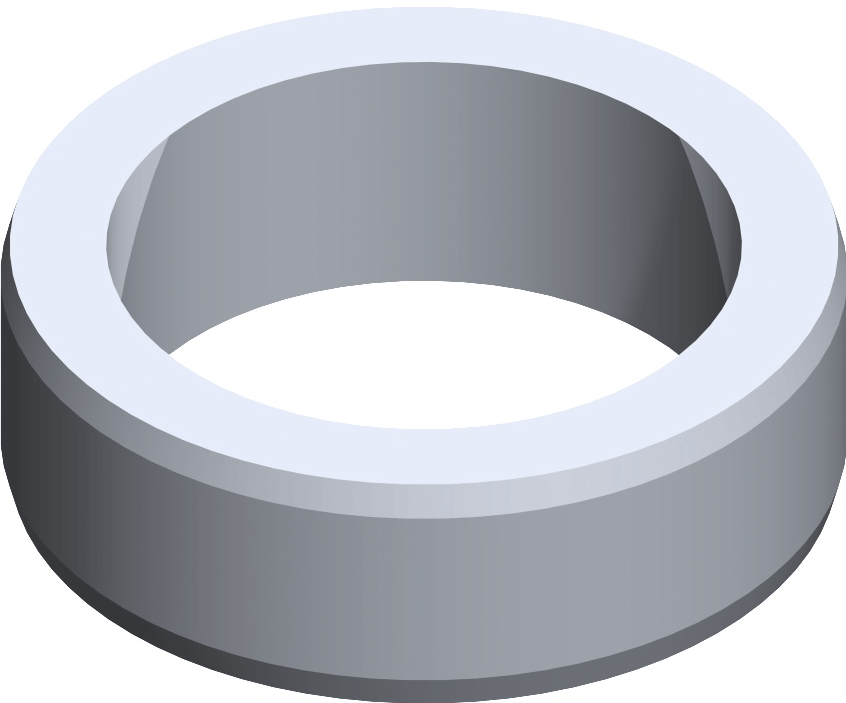

	For precise and reproducible mounting of the payload at the end plates: o20x locating dowel	CAR40 CAR41	VW33MF020LD01
CAR42 CAR43	VW33MF020LD02
CAR44	VW33MF020LD03

Representation

Description

Axis

Order number

For precise and reproducible mounting of the payload at the end plates:

o20x locating dowel

CAR40

CAR41

VW33MF020LD01

CAR42

CAR43

VW33MF020LD02

CAR44

VW33MF020LD03

Dimensions

Dimensional drawing	Definition	Symbol	Unit	Axis
Dimensional drawing	Definition	Symbol	Unit	CAR40 CAR41	CAR42 CAR43	CAR44

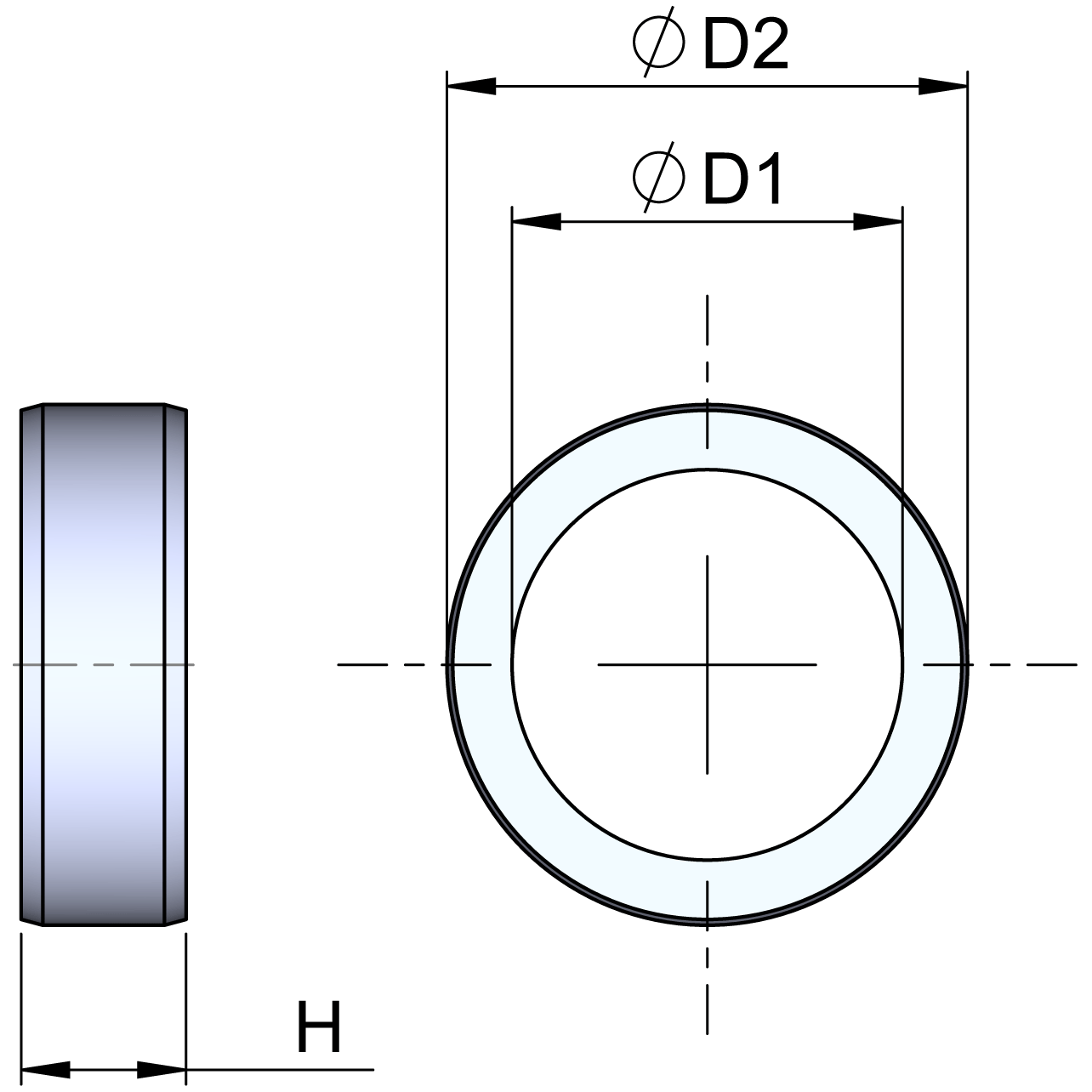

	Dimension	ØD1	mm (in)	5.5 (0.217)	6.6 (0.26)	9 (0.354)
		ØD2		8 h6 (0.315)	10 h6 (0.39)	12 h6 (0.47)
		H		3.8 (0.15)

Motors

For detailed information about appropriate motors for the axis, contact your local Schneider Electric service representative.

NOTE: If adaptation materials are necessary, they must be ordered with the motor.

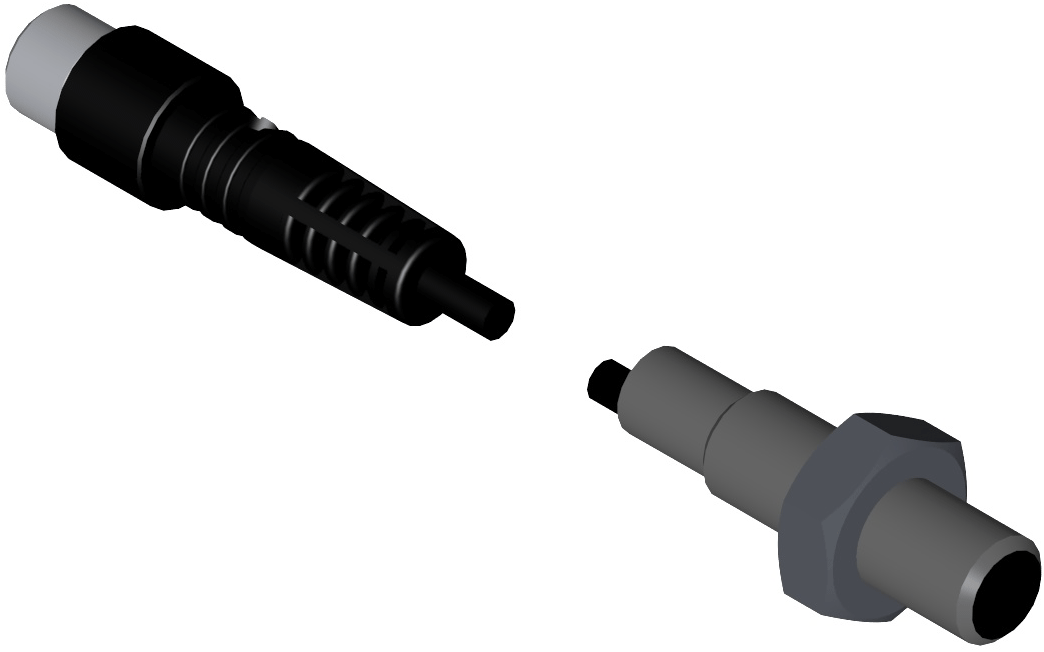

Sensors

Order data

Description	Axis	Sensor contact type	Order number
For detecting the end position of the axis: o1x sensor o1x sensor nut	All	PNP, normally closed	VW32SPBP01M8
		PNP, normally open	VW32SPAP01M8
		NPN, normally closed	VW32SNBP01M8
		NPN, normally open	VW32SNAP01M8

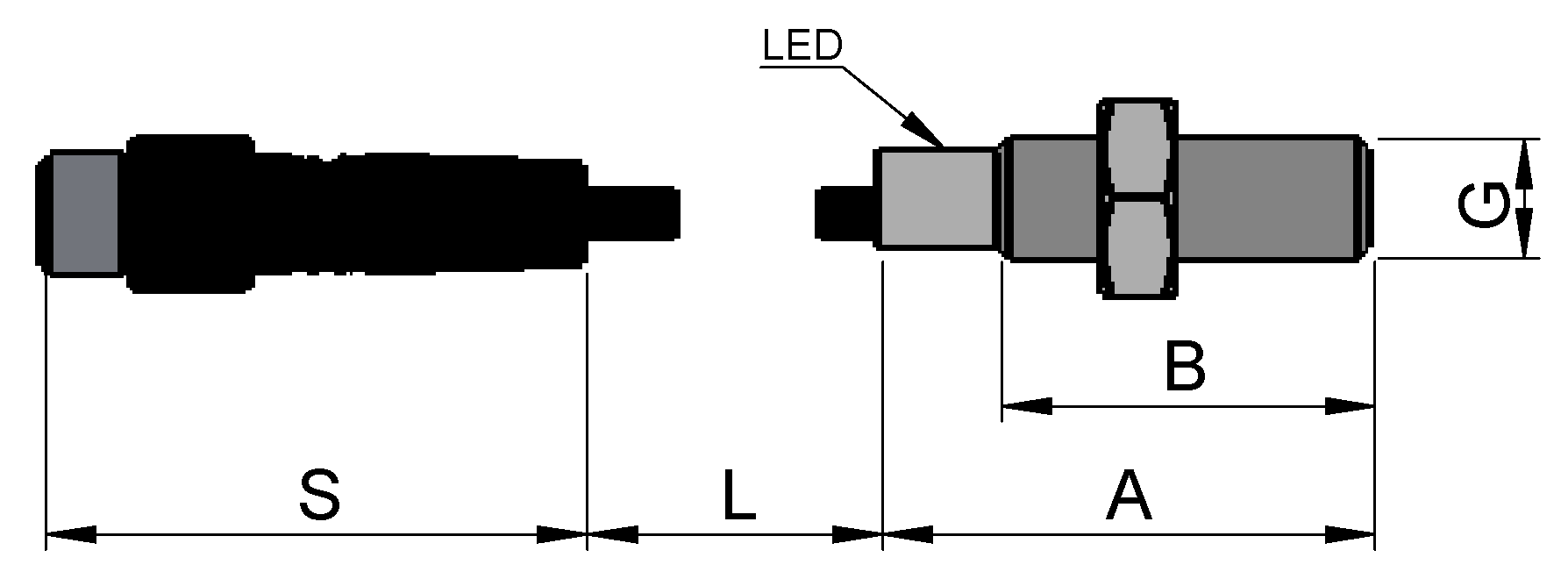

Dimensions

Dimensional drawing	Definition	Symbol	Unit	Axis
Dimensional drawing	Definition	Symbol	Unit	All
	Thread	G	–	M8
	Dimension	A	mm (in)	33 (1.3)
		B		25 (0.98)
		L		100 (3.9)
		S		36.5 (1.44)

NOTE: For the connection assignment, refer to Technical Data of the Sensors.

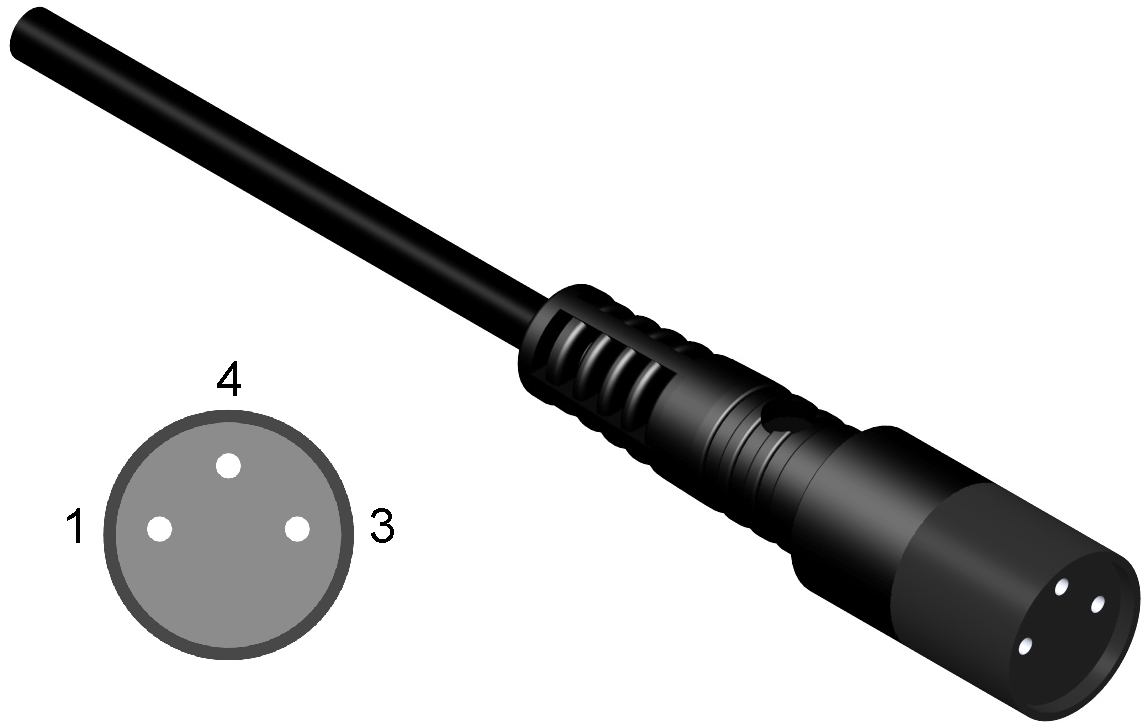

Sensor Extension Cables

Order data

Representation	Description	For sensor contact type	Length in m (ft)	Order number
	For extending the sensor cable: o1x sensor extension cable Suitable for energy chain applications; sensor side end 3-pin M8 circular connector, second cable end is open.	PNP and NPN normally closed / PNP and NPN normally open	5 (16.4)	VW32SBCBGA050
10 (33)	VW32SBCBGA100
20 (66)	VW32SBCBGA200

Representation

Description

For sensor contact type

Length in m (ft)

Order number

For extending the sensor cable:

o1x sensor extension cable

Suitable for energy chain applications; sensor side end 3-pin M8 circular connector, second cable end is open.

PNP and NPN normally closed / PNP and NPN normally open

5 (16.4)

VW32SBCBGA050

10 (33)

VW32SBCBGA100

20 (66)

VW32SBCBGA200

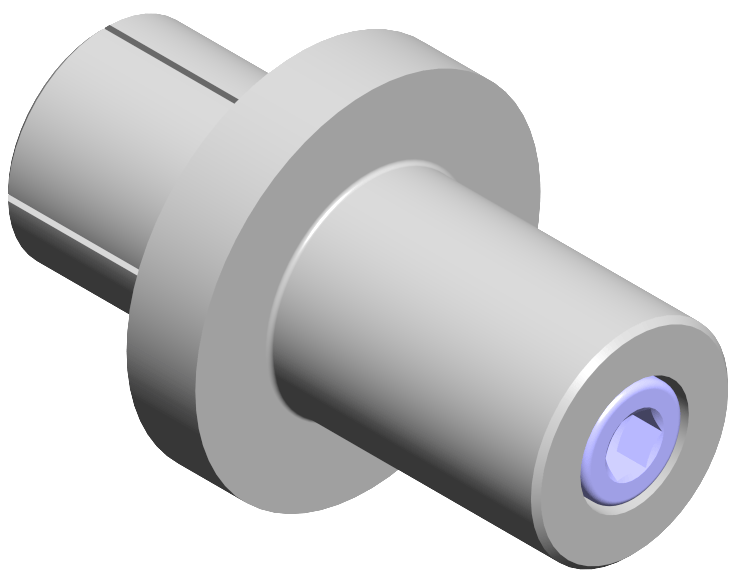

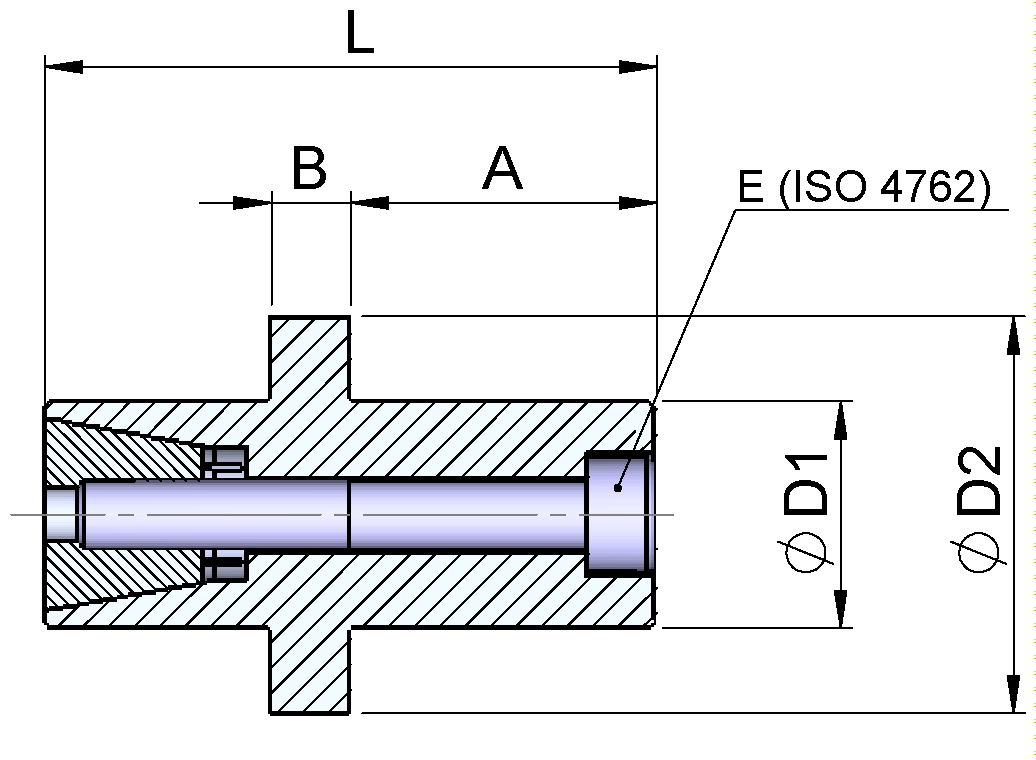

Shaft Extensions

Order data

Representation	Description	Axis	Order number
	For coupling external components, for example, an external encoder: o1x shaft extension with cone and tensioning screw	CAR40 CAR41	VW33MF1S12A12
CAR42 CAR43 CAR44	VW33MF1S27A20

Representation

Description

Axis

Order number

For coupling external components, for example, an external encoder:

o1x shaft extension with cone and tensioning screw

CAR40

CAR41

VW33MF1S12A12

CAR42

CAR43

CAR44

VW33MF1S27A20

Dimensional drawing	Parameter	Symbol	Unit	Axis
Dimensional drawing	Parameter	Symbol	Unit	CAR40 CAR41	CAR42 CAR43 CAR44
	Moment of inertia	J	kg·cm² (lb·in²)	0.002 (0.000683)	0.05 (0.017)
	Tightening torque	M_t	Nm (lbf-in)	2.9 (16.8)	10 (89)
	Screw ISO 4762	E	–	M4	M6
	Maximum radial force	F_R	N (lbf)	230 (52)	400 (90)
	Dimension	A	mm (in)	12 (0.47)	27 (1.06)
		B		5.5 (0.217)	7 (0.276)
		ØD		12 (0.47)	20 (0.79)
		D2		17 (0.67)	35 (1.38)
		L		31.5 (1.24)	54 (2.13)

Slot Nuts

Order data

Description	Axis	Slot nut type	Order number

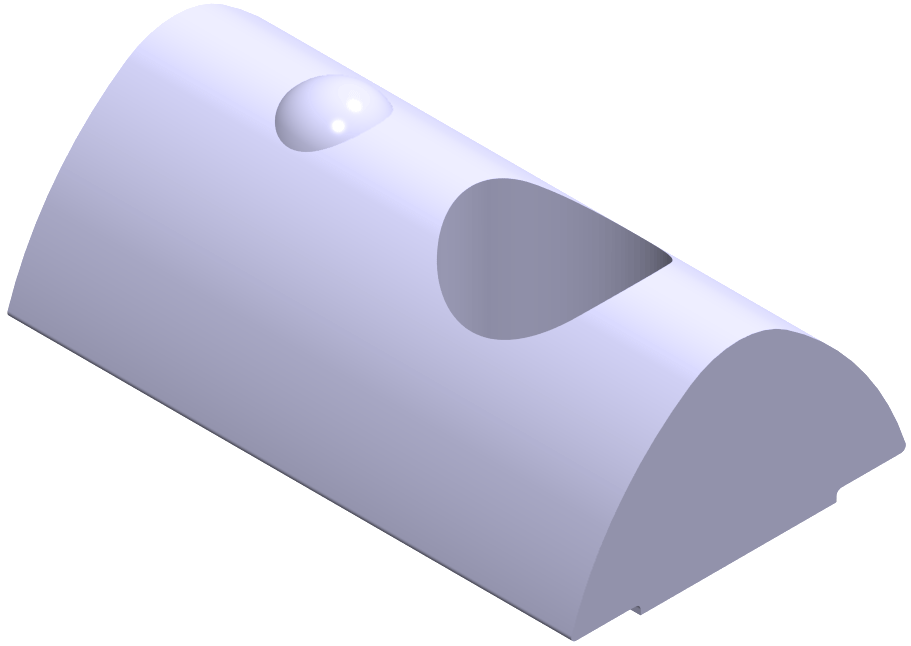

For mounting the axis body to a mounting surface or for mounting other parts to the axis: o10x slot nut	CAR42	5 St M5	VW33MF010T5N5
		8 St M6	VW33MF010T8N6
		8 St M8	VW33MF010T8N8
	CAR43 CAR44	8 St M6	VW33MF010T8N6
	CAR43 CAR44	8 St M8	VW33MF010T8N8

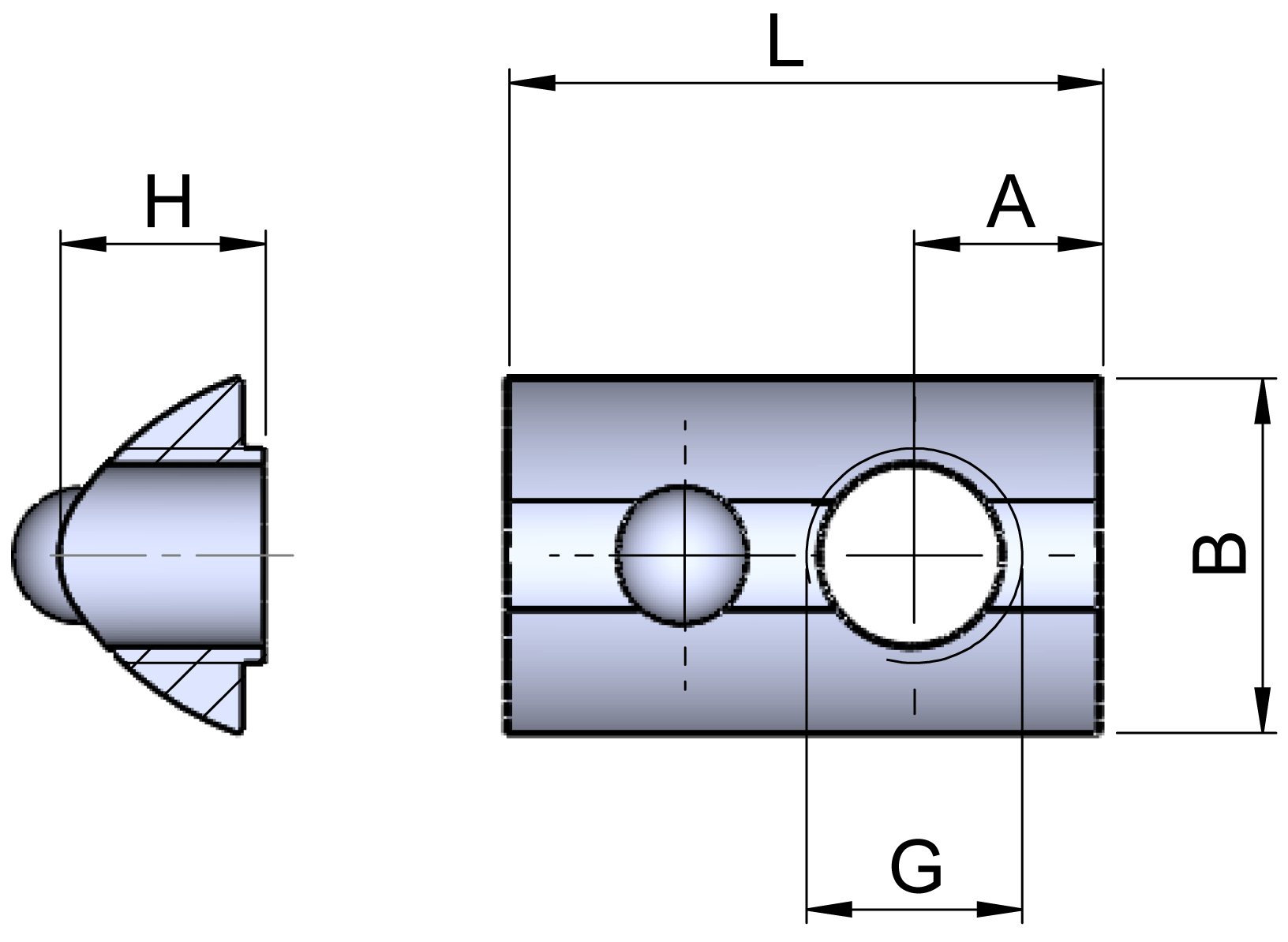

Dimensions

Definition	Symbol	Unit	Axis
			CAR42	CAR42 CAR43 CAR44
			5 St M5	8 St M6	8 St M8
Thread	G	–	M5	M6	M8
Dimension	A	mm (in)	4 (0.157)	7 (0.276)	7 (0.276)
	B		7.7 (0.303)	13.2 (0.52)	13.2 (0.52)
	H		4.6 (0.18)	7.6 (0.3)	7.6 (0.3)
	L		12 (0.47)	22 (0.87)	22 (0.87)

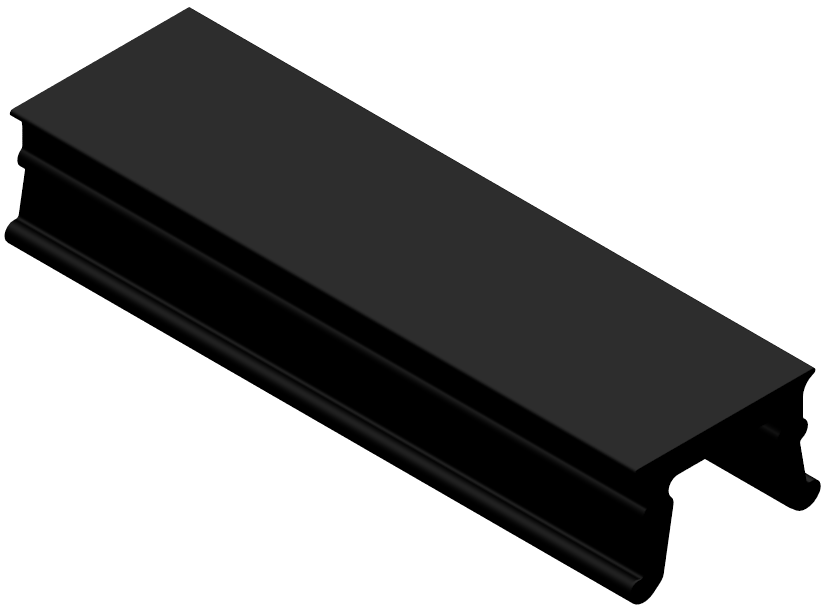

T-Slot Covers

Order data

Representation	Description	Axis	T-slot cover size	Order number
	For covering the T-slot at the axis body: o5x T-slot cover, 2 m (79 in) each	CAR42	5	VW33MC05B05
CAR42 CAR43 CAR44	8	VW33MC05A08

Representation

Description

Axis

T-slot cover size

Order number

For covering the T-slot at the axis body:

o5x T-slot cover, 2 m (79 in) each

CAR42

VW33MC05B05

CAR42

CAR43

CAR44

VW33MC05A08

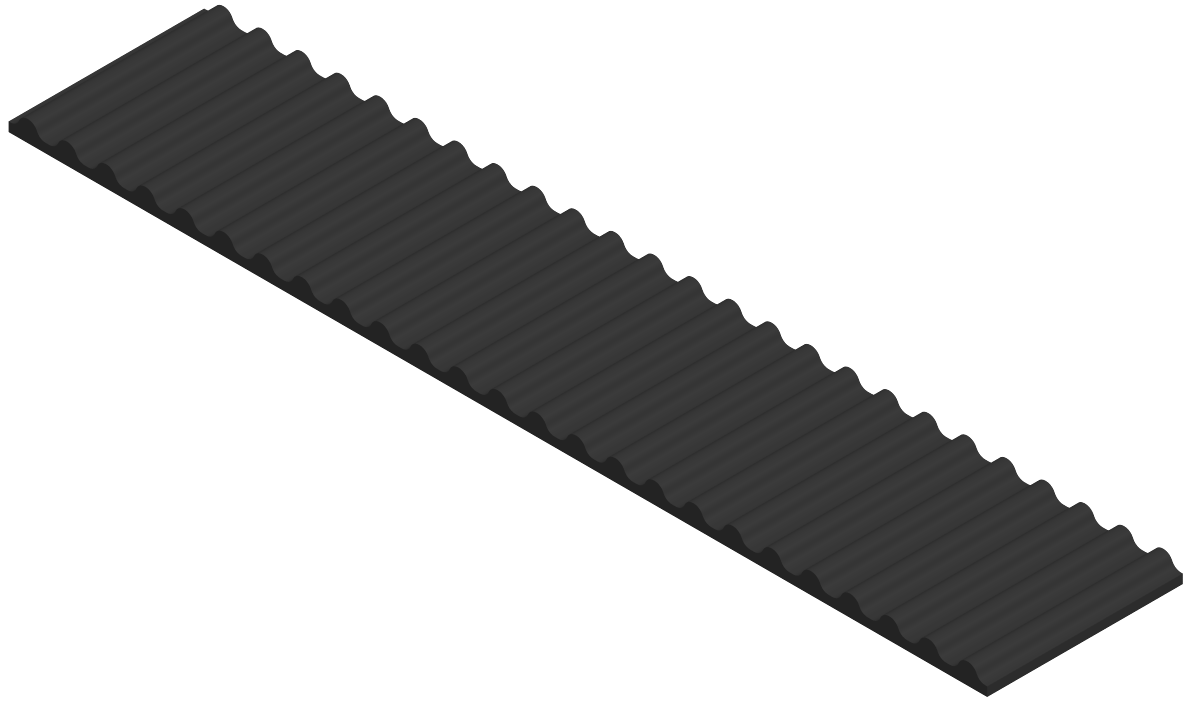

Toothed Belts

Calculation of the required toothed belt length: L = stroke + X

Parameter	Unit	Axis
Parameter	Unit	CAR41	CAR42	CAR43	CAR44
X	mm (in)	180 (7.1)	320 (12.6)	330 (13)	400 (15.7)

Order data

Description	Axis	Characteristic feature	Order number
For performing a linear movement of the axis: o1x toothed belt	CAR41	Standard Length 1 m (3.3 ft)	SPM3MTS10L010
	CAR41	Standard Length 5 m (16.4 ft)	SPM3MTS10L050
	CAR42	Standard Length 1 m (3.3 ft)	SPM3MTS20L010
		Antistatic Length 1 m (3.3 ft)	SPM3MTA20L010
		Standard Length 5 m (16.4 ft)	SPM3MTS20L050
		Antistatic Length 5 m (16.4 ft)	SPM3MTA20L050
	CAR43	Standard Length 1 m (3.3 ft)	SPM3MTS25L010
		Antistatic, Length 1 m (3.3 ft)	SPM3MTS25L010
		Standard, Length 5 m (16.4 ft)	SPM3MTS25L050
		Antistatic Length 5 m (16.4 ft)	SPM3MTA25L050
	CAR44	Standard Length 1 m (3.3 ft)	SPM3MTS32L010
		Antistatic Length 1 m (3.3 ft)	SPM3MTA32L010
		Standard Length 5 m (16.4 ft)	SPM3MTS32L050
		Antistatic Length 5 m (16.4 ft)	SPM3MTA32L050

Toothed Belt Pulleys

Order data

Description	Axis	Characteristic feature	Order number
For transmissioning the drive torque to the toothed belt: o1x toothed belt pulley with ball bearings	CAR41	Standard	SPM3MAW9S075
	CAR41	Increased corrosion resistance	SPM3MAW9C075
	CAR42	Standard	SPM3MAW10S100
	CAR42	Increased corrosion resistance	SPM3MAW10C100
	CAR43 CAR44	Standard	SPM3MAW11S100
	CAR43 CAR44	Increased corrosion resistance	SPM3MAW11C100
