Replacement Equipment of the Lexium EAC1-Series

Overview

The following replacement equipment and accessories are listed:

oAccessories

oBelt drives

oClamping sets

oElastomer couplings

oLubrication guns

oMotor

oNozzle pipes

oSensors

oSensor holders

oSensor extension cables

oToothed belts

Accessories

For detailed information about appropriate accessories for the Lexium EAC1-Series, refer to the accessories in the catalog Unimotion PNCE Electric Cylinder .

To order the respective accessories, contact your local Schneider Electric service representative.

Belt Drives

For detailed information about an appropriate belt drive for the Lexium EAC1-Series, refer to the motor side drives in the catalog Unimotion PNCE Electric Cylinder .

To order the respective belt drive, contact your local Schneider Electric service representative.

Clamping Sets

The clamping set consists of self-locking devices and belt pulleys.

To order the respective clamping set, contact your local Schneider Electric service representative.

Elastomer Couplings

The elastomer coupling consists of two clamping hubs and one elastomer spider.

For detailed information about an appropriate elastomer coupling for the Lexium EAC1-Series, refer to the couplings in the catalog Unimotion PNCE Electric Cylinder .

To order the respective elastomer coupling, contact your local Schneider Electric service representative.

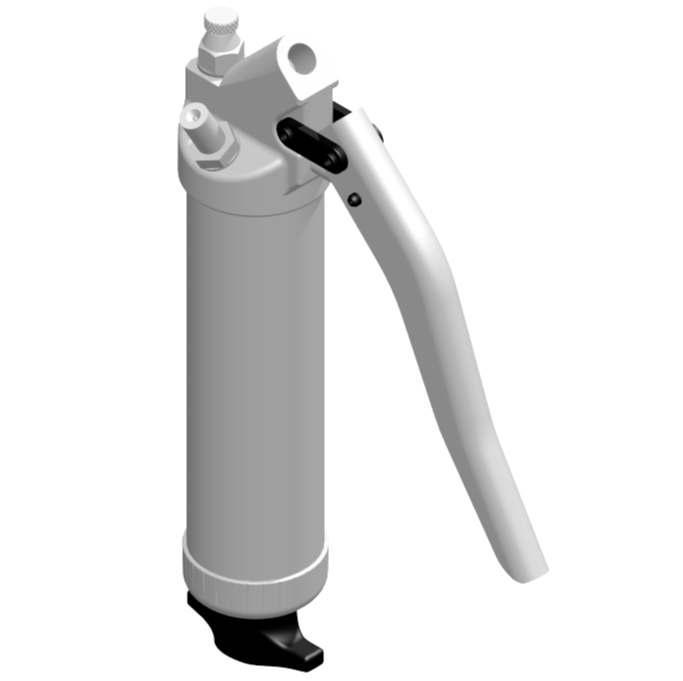

Lubrication Guns

Order data

NOTE: The single-hand lubrication gun is empty. Furthermore, a nozzle pipe is required for lubrication.

Motor

For detailed information about appropriate motors for the Lexium EAC1-Series, contact your local Schneider Electric service representative.

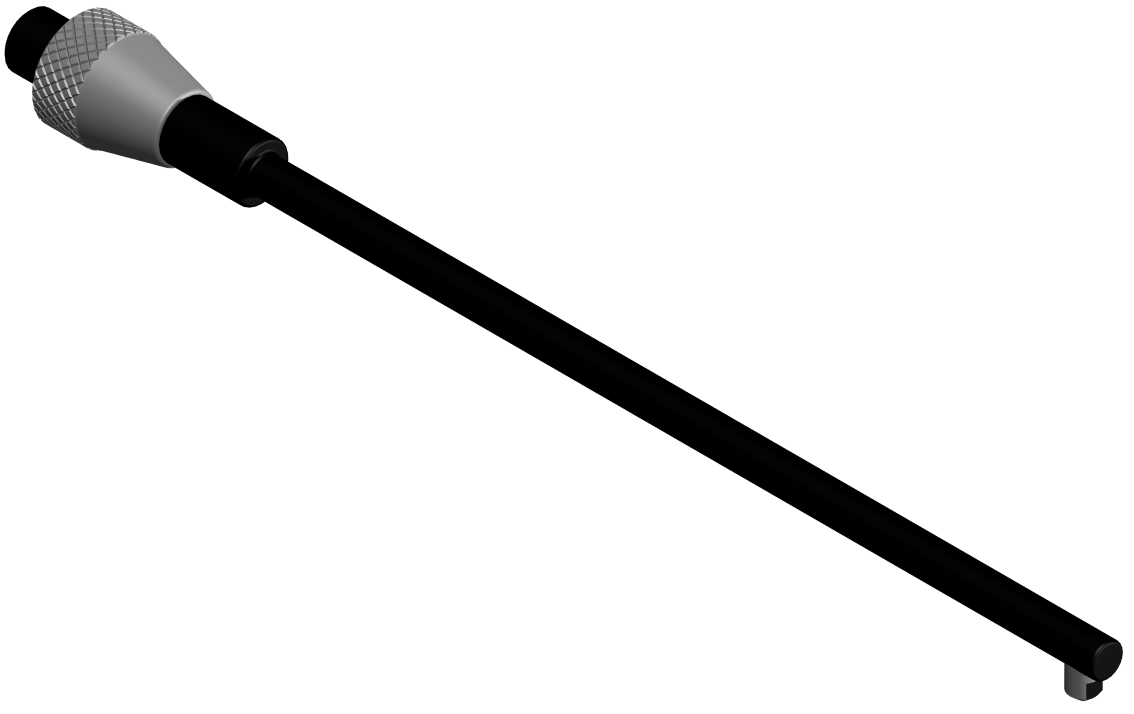

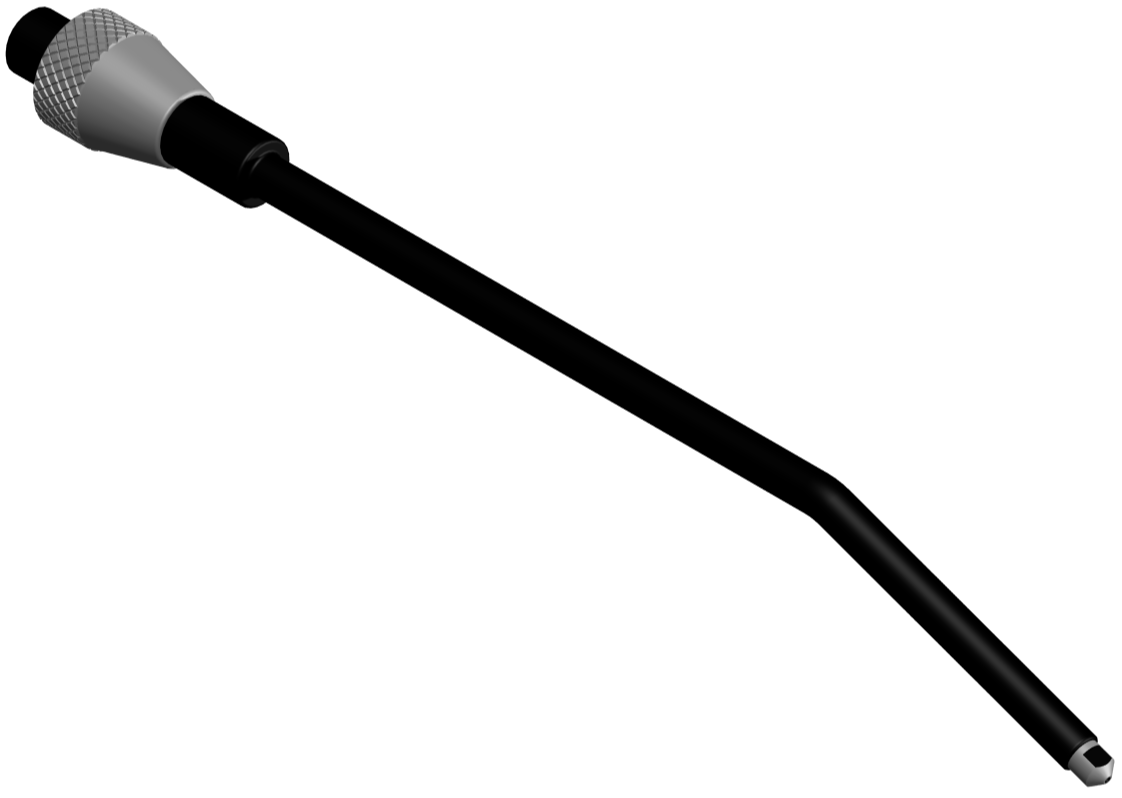

Nozzle Pipes

Order data

Sensors

For detailed information about appropriate sensors for the Lexium EAC1-Series, refer to the sensors in the catalog Unimotion PNCE Electric Cylinder .

To order the respective sensors, contact your local Schneider Electric service representative.

Sensor Holders

For detailed information about appropriate sensor holders for the Lexium EAC1-Series, refer to the sensor holders in the catalog Unimotion PNCE Electric Cylinder .

To order the respective sensor holders, contact your local Schneider Electric service representative.

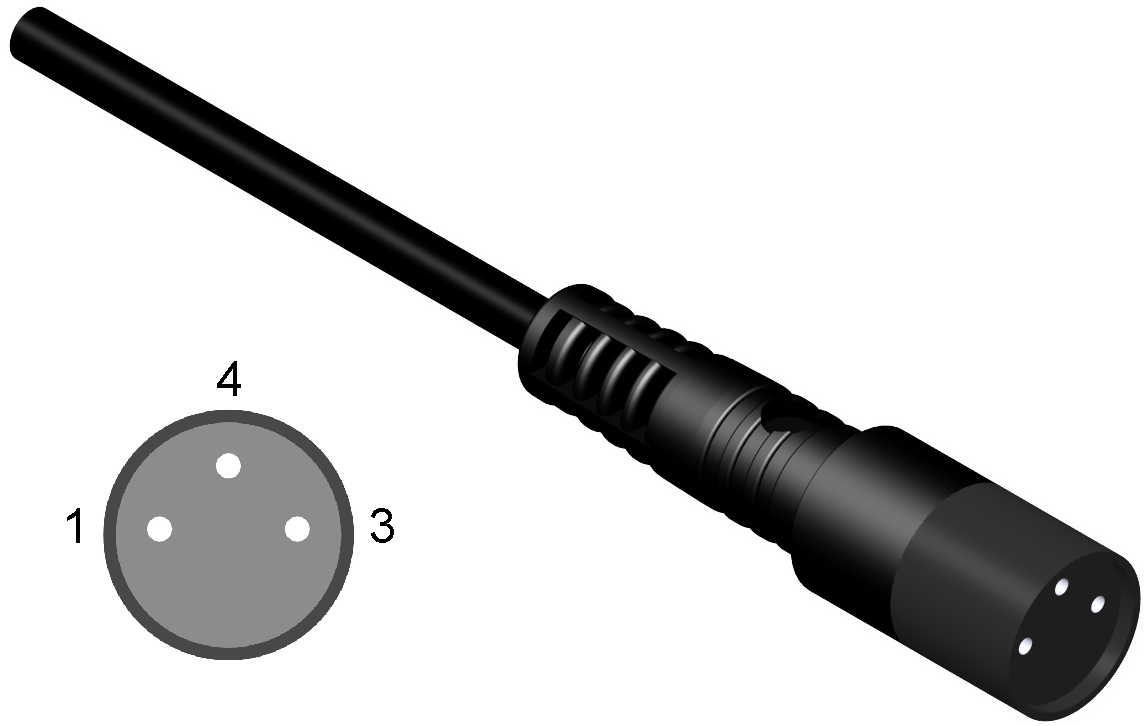

Sensor Extension Cables

Order data

Toothed Belts

To order the appropriate toothed belt, contact your local Schneider Electric service representative.
