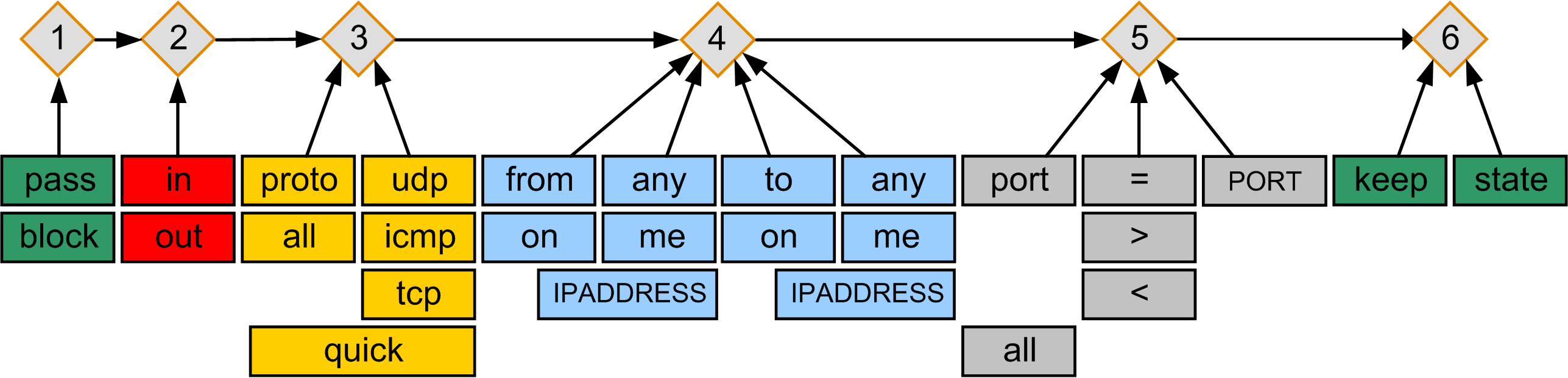

1

Block or pass incoming / outgoing packets unless other rules explicitly allow the packets to pass.

pass

Accepts the specified packet.

block

Blocks the specified packet.

2

Specify the traffic direction (to/from the controller).

in

Specifies an incoming packet.

out

Specifies an outgoing packet.

3

Filter in multiple network topologies with multiple protocols.

proto

Specifies an Internet protocol.

all

Specifies all traffic. That is, packets originating from any source and addressed to any destination.

udp

UDP packets.

icmp

ICMP packets.

tcp

TCP packets.

quick

Ends processing the configuration file on the first match and immediately takes the action specified in the rule.

4

Specify interfaces and addresses.

from

Specifies a source address or a source range of addresses.

any

Specifies packets originating from any source (with “from” keyword).

on

Specifies an interface.

me

In an IP filter rule, this keyword specifies any address configured on the system.

IPADDRESS

Specifies the IP address.

IPADDRESS supports IPv4 and IPv6 addresses, but IPv6 is not supported by the PacDrive LMC controllers.

to

Specifies a destination address or a destination range of addresses.

any

Specifies packets addressed to any destination (with “to” keyword).

5

Specifies a port for a UDP or TCP packet.

Also refer to section Applications / Ports (Default Firewall Configuration.

port

Specifies a port for a UDP or TCP packet.

all

Specifies all ports (UDP/TCP).

=

equal

<

less than

>

greater than

PORT

Specifies the port number.

6

Enables stateful inspection.

Also refer to section Stateful Inspection.

keep state

Stateful inspection temporarily opens a port for incoming traffic when an outgoing packet matches the specified rule. With the “keep state” keyword, the firewall tracks the state of an existing connection based on source IP address, destination IP address, source port, destination port, and protocol.

!

Inverts a parameter.

“keyword” ! parameter

–

all

Specifies all traffic. That is, packets originating from any source and addressed to any destination.

{block | pass} {in | out} all

–

any

Specifies packets arriving from any source (with “from” keyword) or addressed to any destination (with “to” keyword).

{block | pass} {in | out} {to | from} any

–

block

Blocks the specified packet.

block {in | out} {to | from} address_scope

address_scope can be a unique IP address, an address space, or one of the keywords: !, all, me, or any.

from

Specifies a source address or range of addresses.

{block | pass} {in | out} from address_scope

address_scope can be a unique IP address, an address space, or one of the keywords: !, all, me, or any.

icmp

Specifies ICMP (Internet Control Message Protocol) packets.

pass in quick proto icmp from any to me keep state

–

in

Specifies an incoming packet.

{block | pass} in address_scope

address_scope can be a unique IP address, an address space, or one of the keywords: !, all, me, or any.

IPADDRESS

Specifies an IP address.

o{block | pass} {in | out} from 192.168.74.3

o{block | pass} {in | out} from 192.168.74.0/24

IPADDRESS supports IPv4 and IPv6 addresses, but IPv6 is not supported by the PacDrive LMC controllers.

keep state

Enables stateful inspection.

Stateful inspection temporarily opens a port for incoming traffic when an outgoing packet matches the specified rule. With the “keep state” keyword, the firewall tracks the state of an existing connection based on source IP address, destination IP address, source port, destination port, and protocol.

Also refer to section Stateful Inspection.

{block | pass} {in | out} {to | from} address_scope keep state

address_scope can be a unique IP address, an address space, or one of the keywords: !, all, me, or any.

me

In an IP filter rule, this keyword specifies any address configured on the system.

{block | pass} {in | out} me

–

on

Specifies an interface.

{block | pass} {in | out} on interface[+] address_scope

oFor interface, enter an interface name. The plus sign (+) is used as a wildcard to specify any character or digit in an interface name.

oaddress_scope can be a unique IP address, an address space, or one of the keywords: !, all, me, or any.

out

Specifies an outgoing packet.

{block | pass} out address_scope

address_scope can be a unique IP address, an address space, or one of the keywords: !, all, me, or any.

pass

Accepts the specified packet.

pass {in | out} {to | from} address_scope

address_scope can be a unique IP address, an address space, or one of the keywords: !, all, me, or any.

port

Specifies a port for a UDP or TCP packet.

Also refer to section Applications / Ports (Default Firewall Configuration.

{block | pass} {in | out} proto proto_value {to | from} address_scope port op port_value

oproto_value is tcp or udp.

oaddress_scope can be a unique IP address, an address space, or one of the keywords: !, all, me, or any.

oop is a mathematical operator. For example, port 10000 <> 20000 refers to the port numbers smaller than 10000 and greater than 20000.

oport_value is an individual port or an interval.

PORT

Specifies the port number.

pass in quick proto tcp from any to me port = 20

–

proto

Specifies an Internet protocol.

{block | pass} {in | out} proto proto_value address_scope [port op port_value]

oproto_value is tcp or udp.

oaddress_scope can be a unique IP address, an address space, or one of the keywords: !, all, me, or any.

oop is a mathematical operator.

oport_value is an individual port or an interval.

quick

Ends processing the configuration file on the first match and immediately takes the action specified in the rule.

{block | pass} {in | out} quick address_scope

address_scope can be a unique IP address, an address space, or one of the keywords: !, all, me, or any.

tcp

Specifies TCP (Transmission Control Protocol) packets.

pass in quick proto tcp from any to me port = 20 keep state

–

to

Specifies a destination address or a destination range of addresses.

{block | pass} {in | out} to address_scope

address_scope can be a unique IP address, an address space, or one of the keywords: !, all, me, or any.

udp

Specifies UDP (UserDatagram Protocol) packets.

pass in quick proto udp from any to me port = 1202 keep state

–
