Lexium 62 Distribution Box

Overview

Product	Description
	The Lexium 62 Distribution Box is the link between Lexium 62 Connection Module and Lexium 62 ILM. Depending on the number of drives, 1 to 4 Lexium 62 ILMs or daisy chain lines can be connected. When operating more than four drives, expand the system by using more Lexium 62 distribution boxes. For further information, refer to: oInstallation and Maintenance oIndicators of the Lexium 62 Distribution Box oElectrical Connections for the Lexium 62 Distribution Box oMechanical and Electrical Data for the Lexium 62 Distribution Box

Product

Description

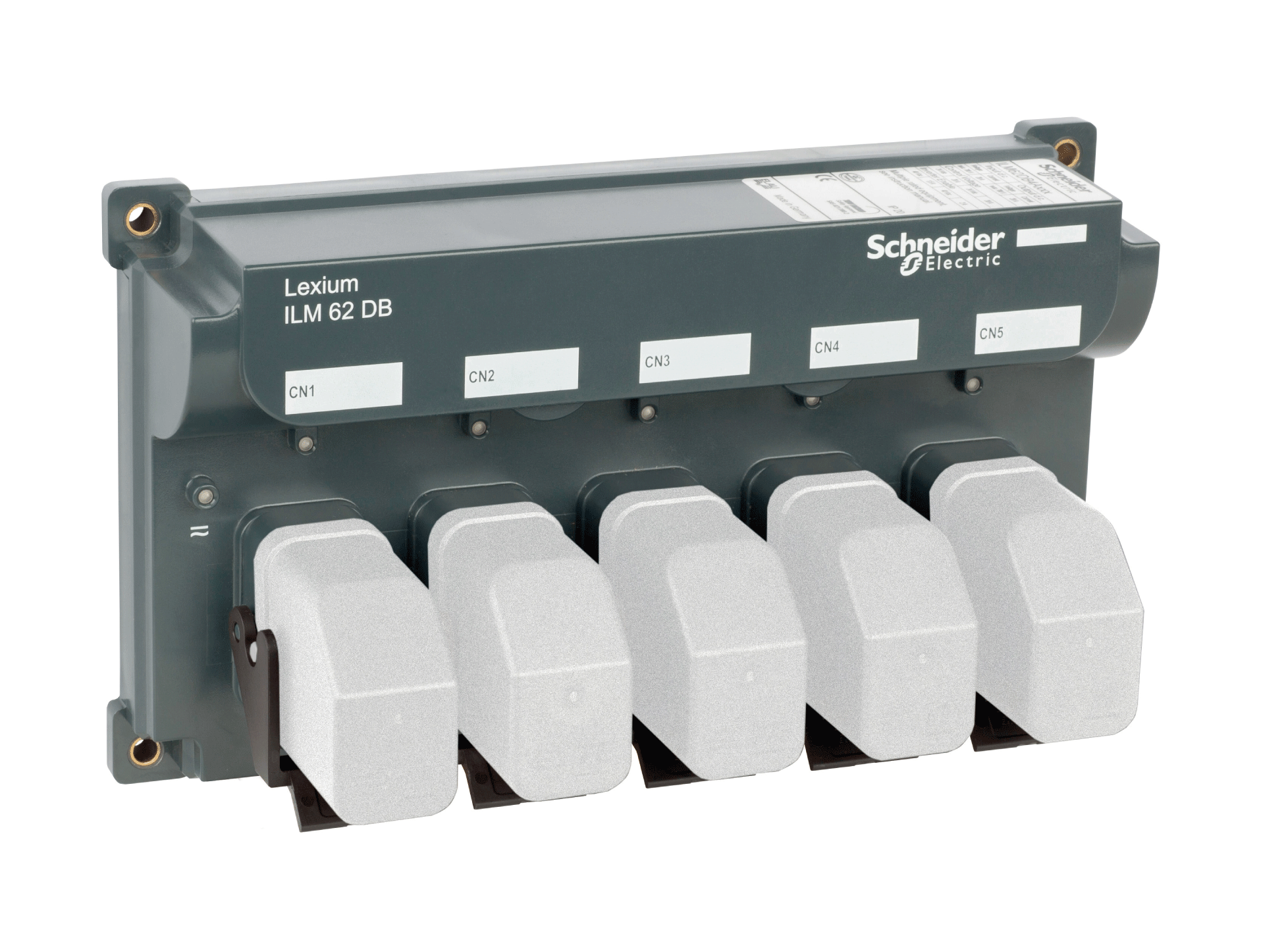

The Lexium 62 Distribution Box is the link between Lexium 62 Connection Module and Lexium 62 ILM. Depending on the number of drives, 1 to 4 Lexium 62 ILMs or daisy chain lines can be connected. When operating more than four drives, expand the system by using more Lexium 62 distribution boxes.

For further information, refer to:

oInstallation and Maintenance

oIndicators of the Lexium 62 Distribution Box

oElectrical Connections for the Lexium 62 Distribution Box

oMechanical and Electrical Data for the Lexium 62 Distribution Box

The highlights:

o1...4 connections for Lexium 62 ILMs or daisy chain lines or further Lexium 62 distribution boxes.

oPre-assembled hybrid cables or power cables (Daisy Chain wiring).

References

Product	Reference
Lexium 62 Distribution Box	ILM62DB4A000
Sercos bridge plug	VW3E6023

Type Code

Item	Meaning
Product family	ILM = Integrated Lexium Servo Module
Size		62 = Lexium 62
Type			DB = Distribution Box
Hybrid outputs				4
Variants					A
Internal						0
Customer							0
Type code (example)	ILM	62	DB	4	A	0	00

Technical Nameplate

The technical nameplate is located laterally on housing:

Label	Meaning
ILM62DBxxxxx	Device type and Unicode
Input dc	Input voltage and/or input current (rated- and/or peak value per input)
Output ac/dc	Output voltage and output current (rated and/or peak value per output)
IP65	Degree of protection
Symbols	This field displays the symbols of declarations and certifications

Logistic Nameplate

Label	Meaning
ILM62DBxxxxx	Device type and Unicode
2328234578	Serial number
RS:01	Hardware revision
DOM	Date of manufacture
