Smooth shaft end (standard) |
With a non-positive connection, torque transmission must be achieved only by surface pressure to help ensure power transmission without backlash. |
|
Shaft end with round-ended feather key according to DIN 6885 |
Shaft connections with feather keys are positive. The feather key seating can deflect under continuous strain with changing torques and prolonged reverse operation, causing backlash. As a result, rotational quality is reduced due to backlash. Increasing deformation can lead to the feather key breaking and damage to the shaft. This type of shaft hub connection is only suitable for low requirements. Therefore, use smooth shaft ends. |
The back side bearing is designed as a fixed bearing and the bearing on shaft output side as a floating bearing.
In case of technical correct use, the life of drives is limited by the bearing life. You cannot replace the bearing, as the measuring systems integrated in the drive must then be reinitialized.

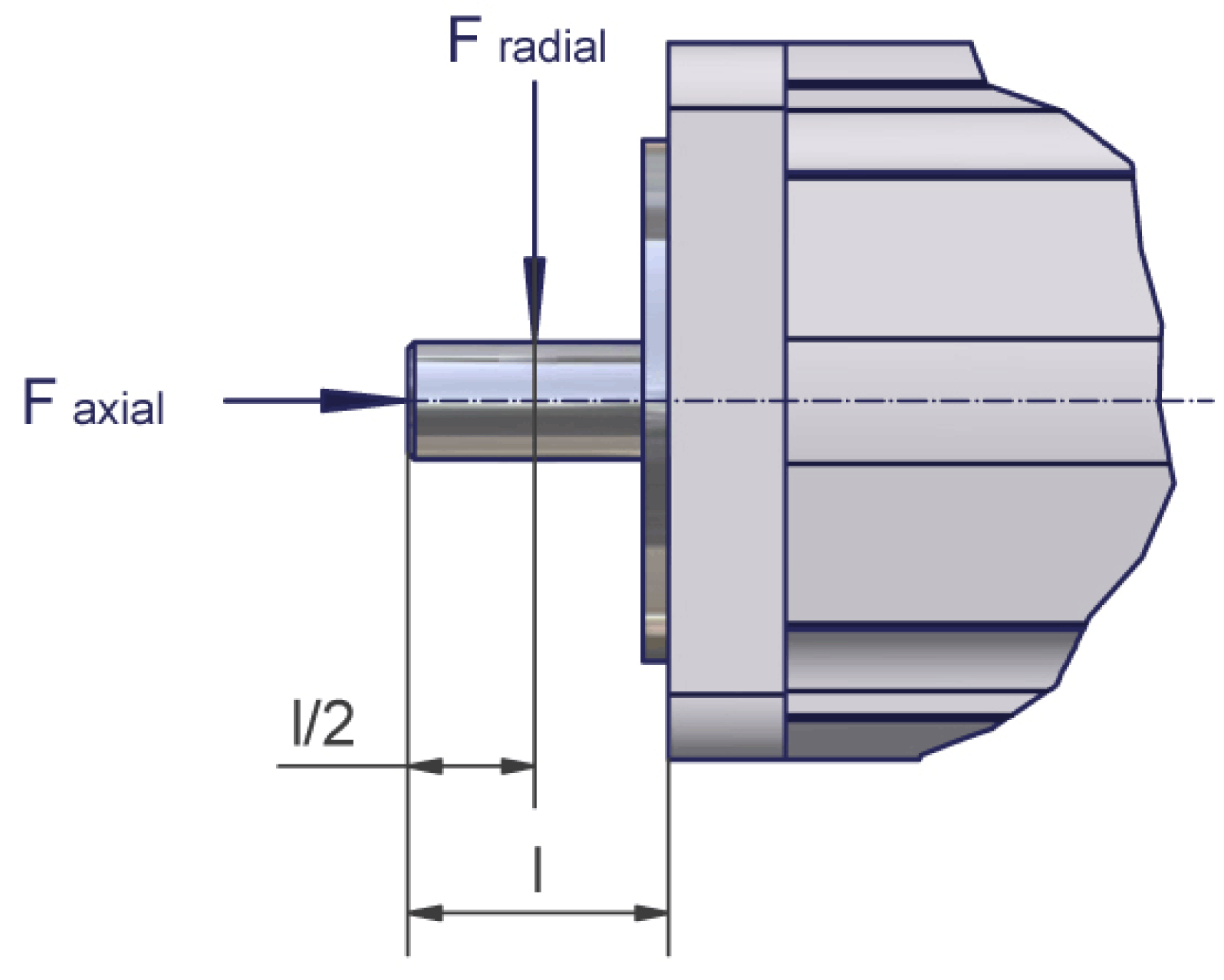

The graphic shows the definition of shaft load:
The table shows the permissible radial force Fradial [N]:
|
Motor |
1000 min-1 |
2000 min-1 |
3000 min-1 |
4000 min-1 |
5000 min-1 |
6000 min-1 |
|---|---|---|---|---|---|---|
|
ILM0701P |
660 |
520 |
460 |
410 |
380 |
360 |
|
ILM0702P |
710 |
560 |
490 |
450 |
410 |
390 |
|
ILM0703P |
730 |
580 |
510 |
460 |
430 |
400 |
|
ILM1001P |
900 |
720 |
630 |
– |
– |
– |
|
ILM1002P |
990 |
790 |
690 |
– |
– |
– |
|
ILM1003P |
1050 |
830 |
730 |
– |
– |
– |
|
ILM1401M |
2210 |
1760 |
- |
– |
– |
– |
|
ILM1401P |
2210 |
1760 |
1530 |
– |
– |
– |
|
ILM1402P |
2430 |
1930 |
- |
- |
- |
- |
Basis for calculation:
The permissible axial force Faxial [N] is calculated according to:
Faxial = 0.2 x Fradial
oNominal bearing life L10h = 20,000 h for a shaft without feather key nut (for operating hours at a 10% detected failure probability)
oAmbient temperature = 40 °C / 104 °F (approx. 100 °C / 212 °F storage temperature)
oPeak torque = 10% ED
oNominal torque = 100% ED
