Connection of the Lexium 62 Power Supply

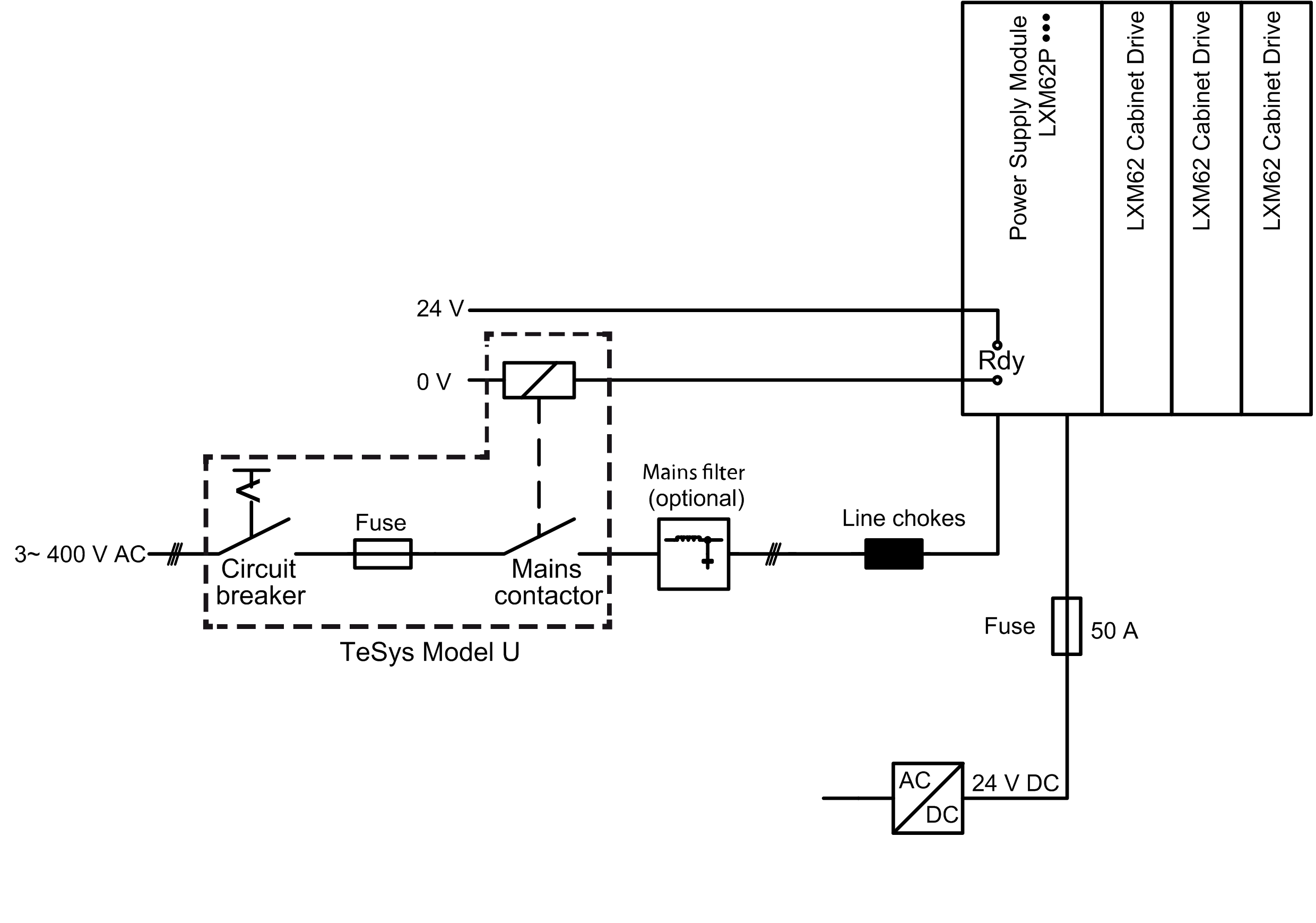

Connection of a Lexium 62 Power Supply
NOTE: The 24 Vdc supply input current must be limited to 50 A, which can be realized by a 50 A fuse as shown above. In particular, a 50 A fuse is mandatory if a passive 24 Vdc power supply is used.
For further information, refer to Fusing the Mains Connection.
