The wiring with Lexium 62 DC Link Terminal allows the connection of two or more rows of Lexium 62 drives.
The rows of devices may have different locations:
oLocation within the same control cabinet, for example one row above the other row, or
oLocation in separate control cabinets.
Wiring with Lexium 62 DC Link Terminal requires the following components:
|
Product |
Description |
|---|---|
|

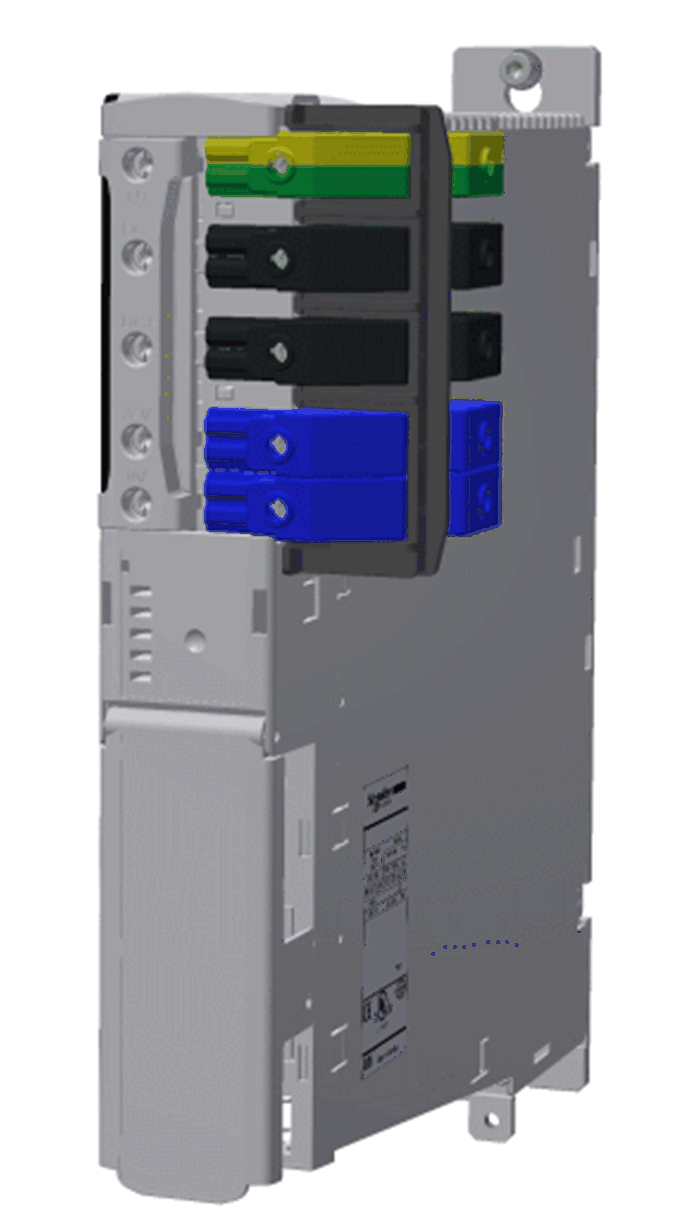

The Lexium 62 DC Link Terminal LXM62LT00A01000 is used to connect a cable to the bus bar module of the Lexium 62 devices. The Lexium 62 DC Link Terminal can be mounted on the right hand and on the left-hand side of the bus bar module of the Lexium 62 devices. The connectors are attached to Lexium 62 devices during manufacturing of your machine, during the installation at the end use facility, or during maintenance. Usually, direct, uninterrupted wiring between the Lexium 62 devices is applied. If you intend to use inter-connectors, for example, between control cabinets, they must be of a design such that they cannot be disconnected during operation. A strain relief for cable support is enclosed to the Lexium 62 DC Link Terminal. |
|

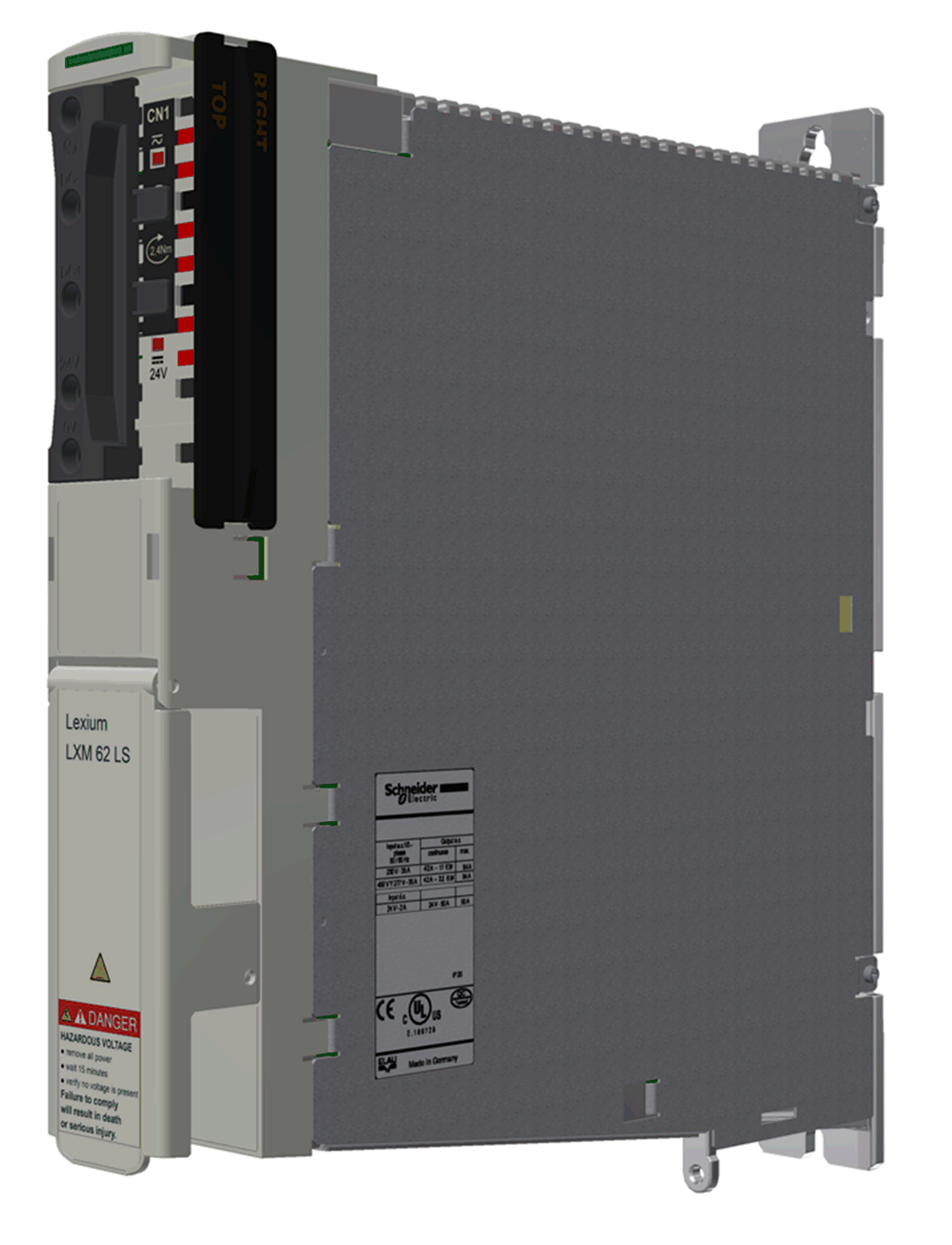

The Lexium 62 DC Link Support Module LXM62LS18A01000 can be integrated into Lexium 62 Drive System. The Lexium 62 DC Link Support Module is a passive module with capacitors. |
For further information, refer to the LXM62LT00A01000 Lexium 62 DC Link Terminal, Instruction Sheet.
