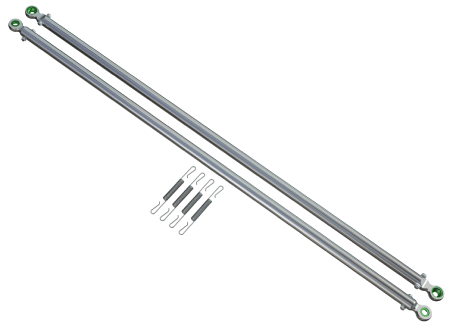

Lower arms pair with rolls, sockets, and springs:

o2x lower arm complete

o4x springs

VRKP2YYYYY00004

VRKP2

VRKP4YYYYY00004

VRKP4

VRKP5YYYYY00004

VRKP5

VRKP6YYYYY00004

VRKP6

VRKP6YYYYY00E04

VRKP6•••••••E00

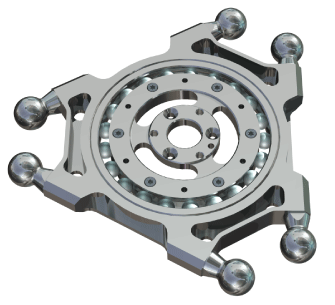

Stainless steel parallel plate with bearing and ball pins:

o1x stainless steel parallel plate complete

VRKP4YYYYY00005

All Lexium P robots

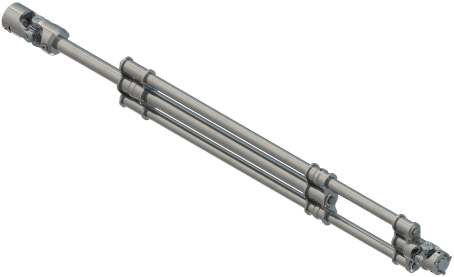

Telescopic Axis Double with universal joints:

o1x Telescopic Axis Double complete

VRKP2YYYYY00007

VRKP2

VRKP4YYYYY00007

VRKP4

VRKP5YYYYY00007

VRKP5

VRKP6YYYYY00007

VRKP6

VRKP6YYYYY00E07

VRKP6•••••••E00

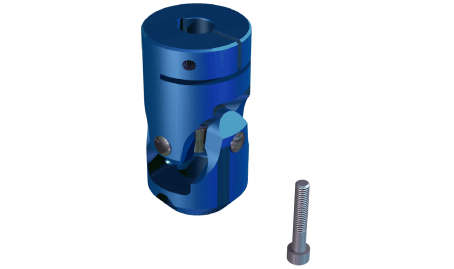

Plastic upper universal joint with fastener:

o1x plastic upper universal joint

o1x clamping screw upper universal joint

VRKP4YYYYY00008

All Lexium P robots

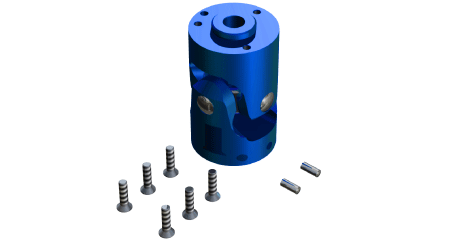

Plastic lower universal joint with fasteners and indexing bolt:

o1x plastic lower universal joint

o6x countersunk screw universal joint

o1x straight pin universal joint

VRKP4YYYYY00009

All Lexium P robots

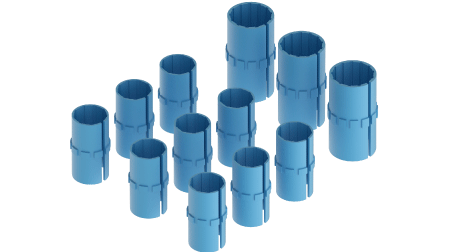

Food grade slide films, three sets:

o1x plastic lower universal joint

o6x countersunk screw universal joint

o1x straight pin universal joint

VRKP4YYYYY00013

All Lexium P robots

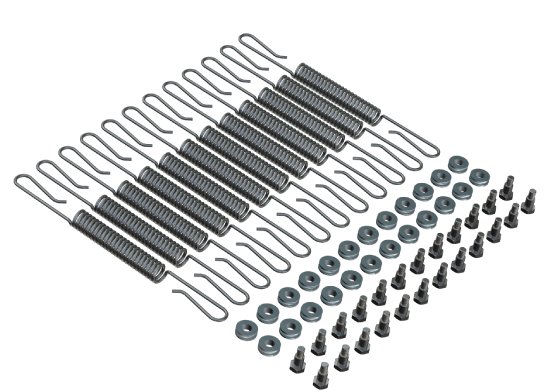

Springs, rolls, and fasteners. Set for one robot:

o12x springs

o24x roll

o24x screw

VRKP4YYYYY00023

All Lexium P robots

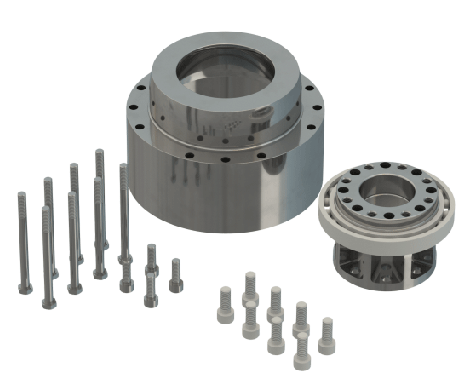

Gearbox Leakage Protection for the main axis with fasteners:

o1x protection box for gearbox

o1x output-flange-extension

o8x screw for output-flange-extension

o4x screw for protection box / gearbox

o12x screw for protection box / housing

VRKPXYYYYY00031

VRKP2 /

VRKP4 /

VRKP5 /

VRKP6

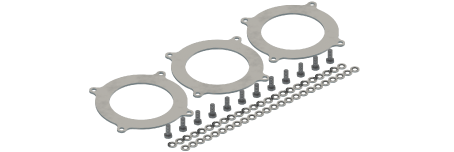

Impact Plate for the main axis with fasteners. Set for one robot:

o3x Impact Plate

o12x screw for Impact Plate

o48x sealing washer

VRKP1YYYYY00035

VRKP0 /

VRKP1

VRKPXYYYYY00035

VRKP2 /

VRKP4 /

VRKP5 /

VRKP6

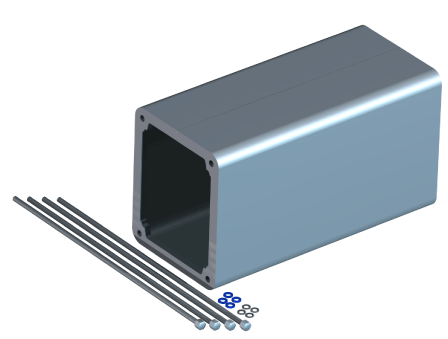

Motor cover extended with fasteners - without sealing:

o1x motor cover extended

o4x threaded rod

o4x sealing washer

o4x lock washer

VRKPXYYYYY00036

VRKP2•••WD /

VRKP4•••WD / VRKP4•••NO / VRKP4•••CW /

VRKP4•••WF / VRKP4•••NF

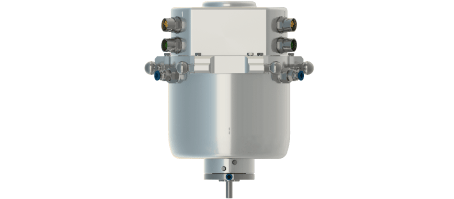

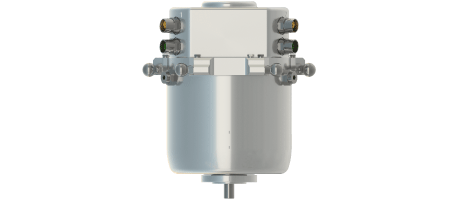

Lexium P Double Rotational Module:

o1x Double Rotational Module

VRKPXYYYYY00038

All Lexium P robots

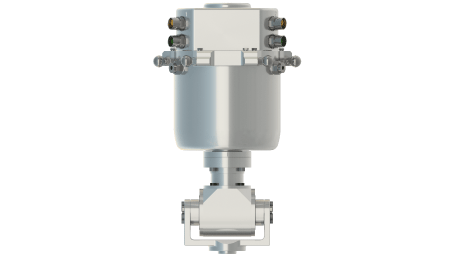

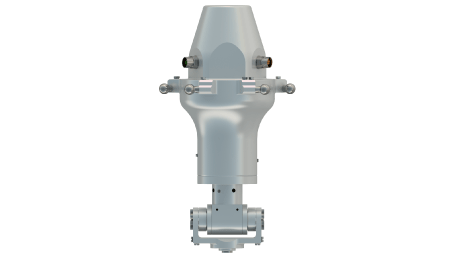

Lexium P Rotational Tilting Module:

o1x Rotational Tilting Module

VRKPXYYYYY00039

All Lexium P robots

Lexium P Rotational Tilting Module HD:

o1x Rotational Tilting Module HD

VRKPXYYYYY00041

All Lexium P robots

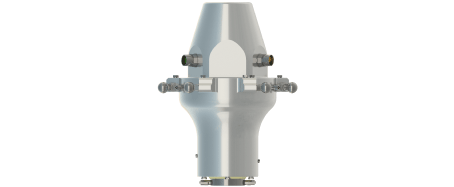

Lexium P Rotational Module B:

o1x Rotational Module B

VRKPXYYYYY00045

All Lexium P robots

Lexium P Rotational Module HT-B:

o1x Rotational Module HT-B

VRKPXYYYYY00046

All Lexium P robots

Lexium P Double Rotational Module HD:

o1x Double Rotational Module HD

VRKPXYYYYY00049

All Lexium P robots

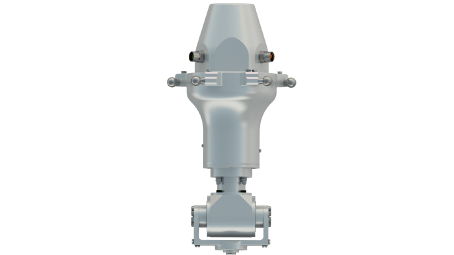

Lexium P Rotational Tilting Module HD-B:

o1x Rotational Tilting Module HD-B

VRKPXYYYYY00050

All Lexium P robots

Lexium P Tilting Module HT-B-HD:

o1x Tilting Module HT-B-HD

VRKPXYYYYY00052

All Lexium P robots

Lexium P Tilting Module B:

o1x Tilting Module B

VRKPXYYYYY00053

All Lexium P robots

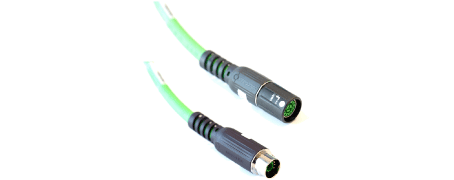

Encoder extension cable for the optional modules:

o1x encoder extension cable

VW3E2100R030

VRKP0 /

VRKP1 /

VRKP2 /

VRKP4

VW3E2100R043

VRKP5 /

VRKP6

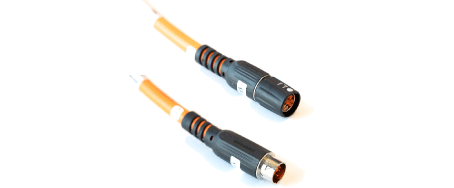

Power extension cable for the optional modules:

o1x power extension cable

VW3E1168R030

VRKP0 /

VRKP1 /

VRKP2 /

VRKP4

VW3E1168R043

VRKP5 /

VRKP6
