Replacement Equipment of the Lexium T Robots

Replacement Equipment

Item description and content

Representation

Item reference

To be used for

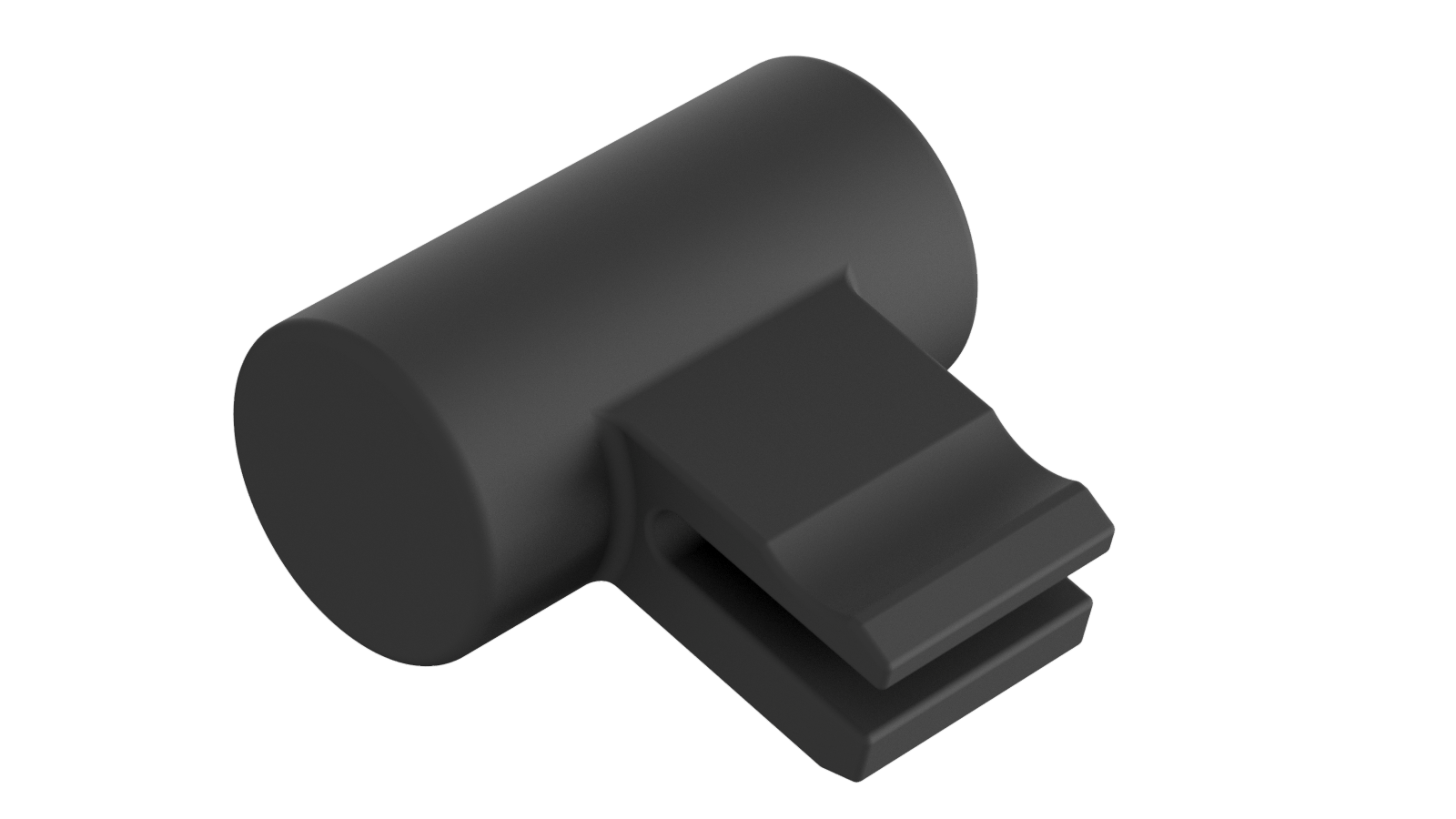

Calibration tool:

o1x calibration tool





VRKTXYYYYY00001

All Lexium T robots

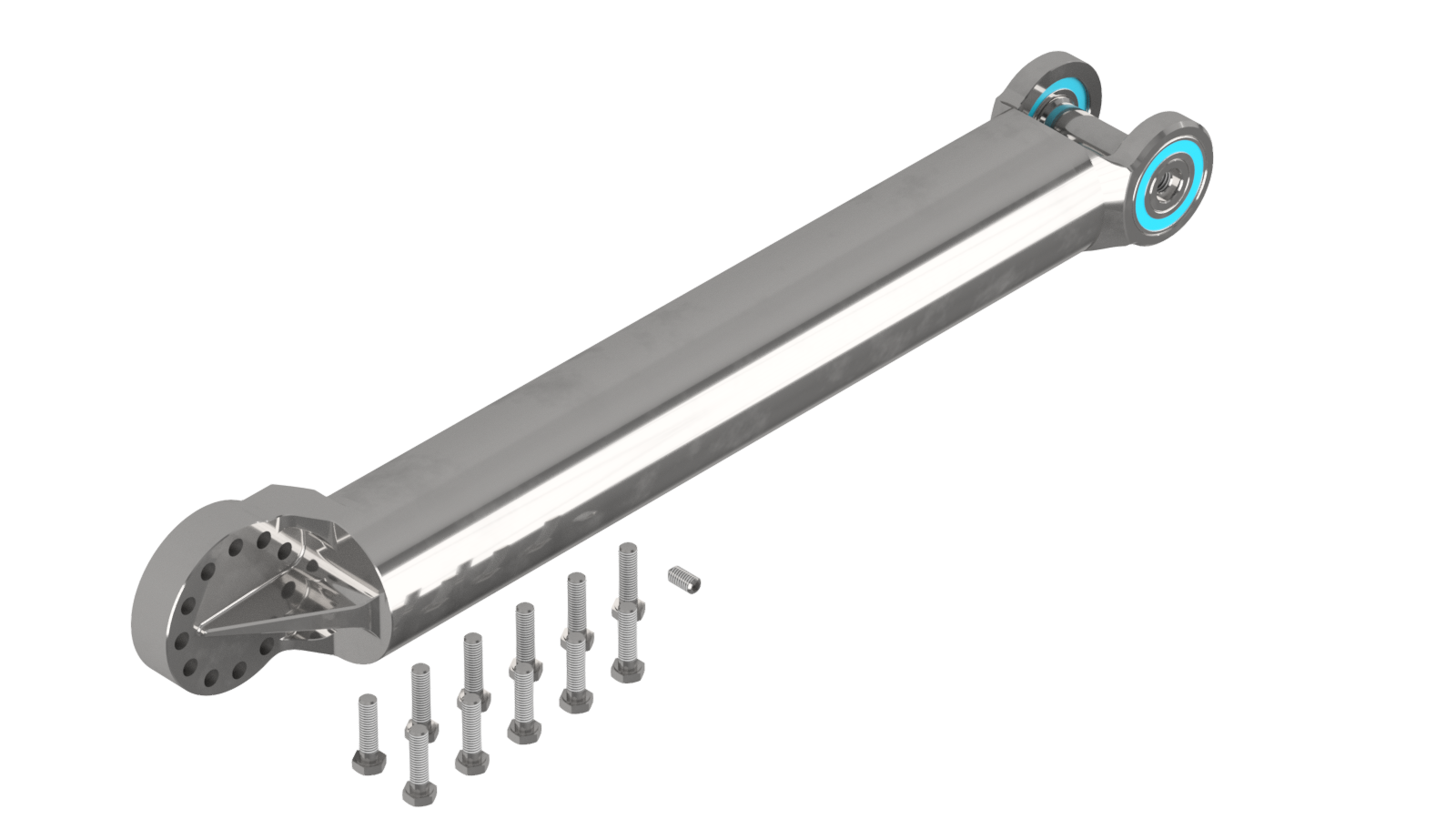

Upper arm with bearings and bolts:

o1x upper arm complete

o1x indexing bolt gearing

o11x screw upper arm





VRKT2YYYYY00002

VRKT2•••NC

VRKT3YYYYY00002

VRKT3•••NC

VRKT5YYYYY00002

VRKT5•••NC

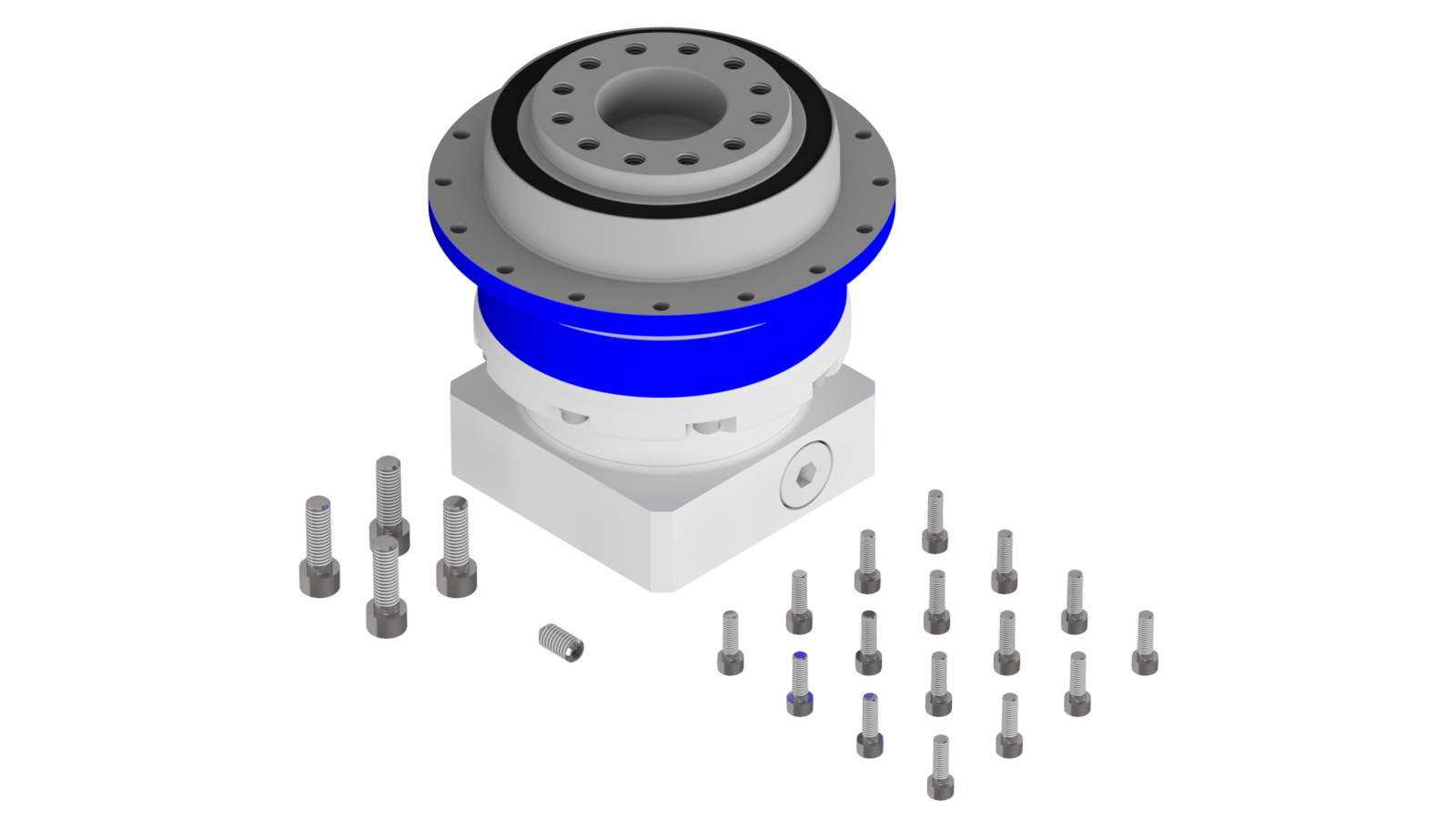

Main gearbox with fasteners and indexing bolt:

o1x gearbox main axis

o16x screw gearbox/mounting plate

o4x screw motor/gearbox

o1x indexing bolt gearbox





VRKTXYYYYY00003

All Lexium T robots

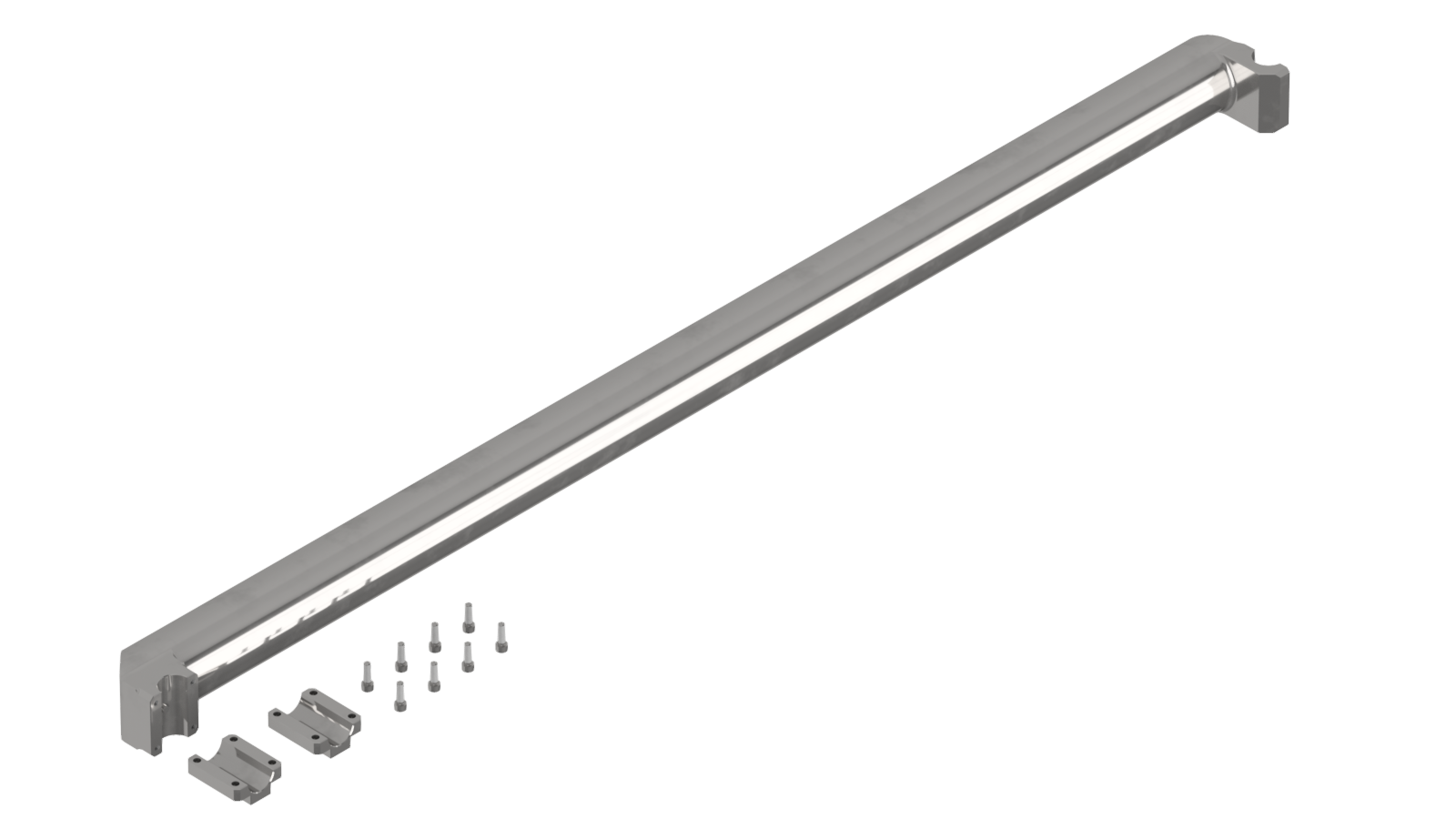

Lower arm with half shells and fasteners:

o1x lower arm complete

o2x half shell

o8x screw half shell

o8x lock washer half shell





VRKT2YYYYY00004

VRKT2•••NC

VRKT3YYYYY00004

VRKT3•••NC

VRKT5YYYYY00004

VRKT5•••NC

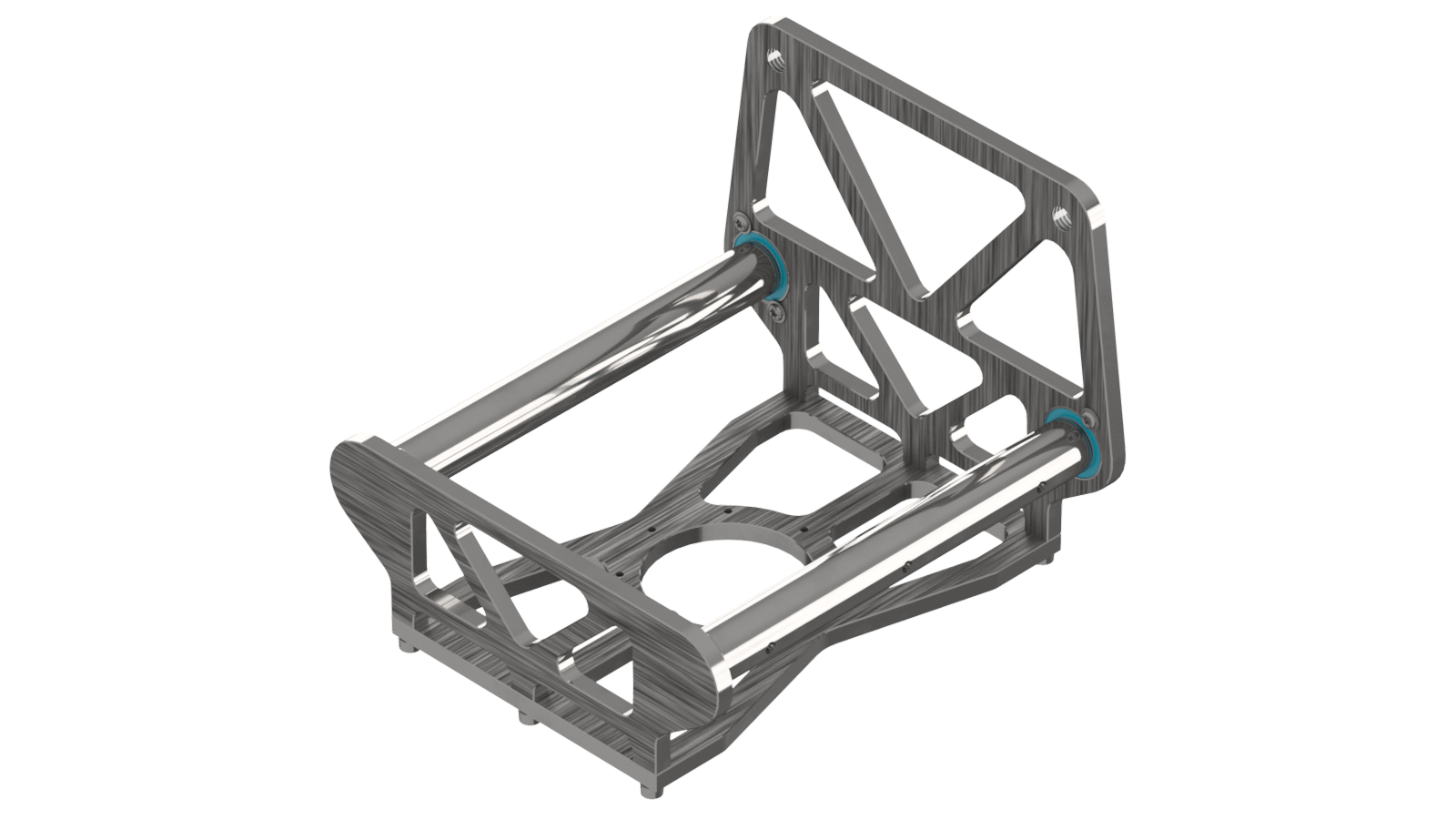

Parallel plate with bearings and shafts:

o1x parallel plate complete





VRKTXYYYYY00005

All Lexium T robots

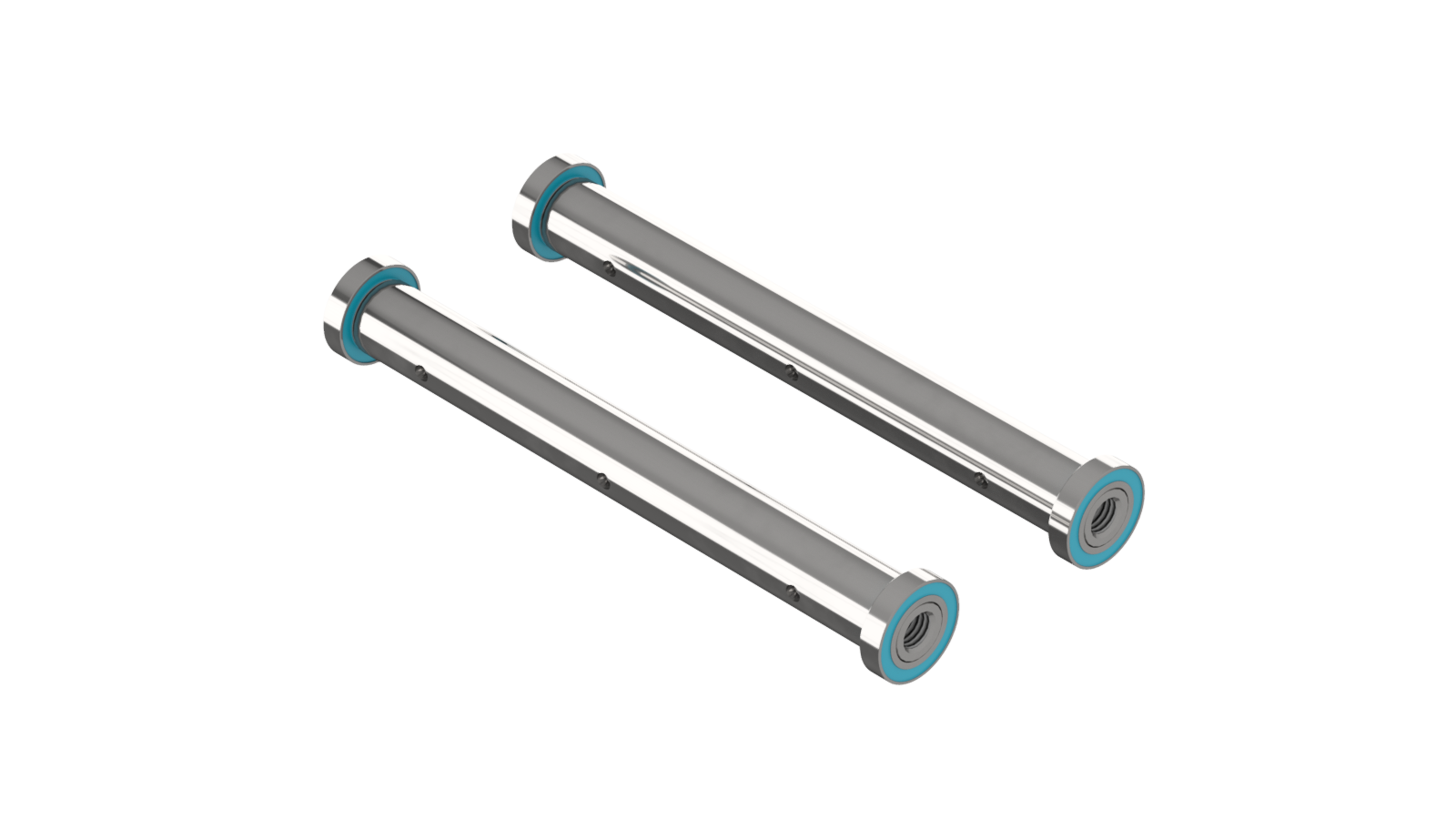

Two shafts parallel plate with bearings:

o2x shaft complete with mounted bearings





VRKTXYYYYY00006

All Lexium T robots

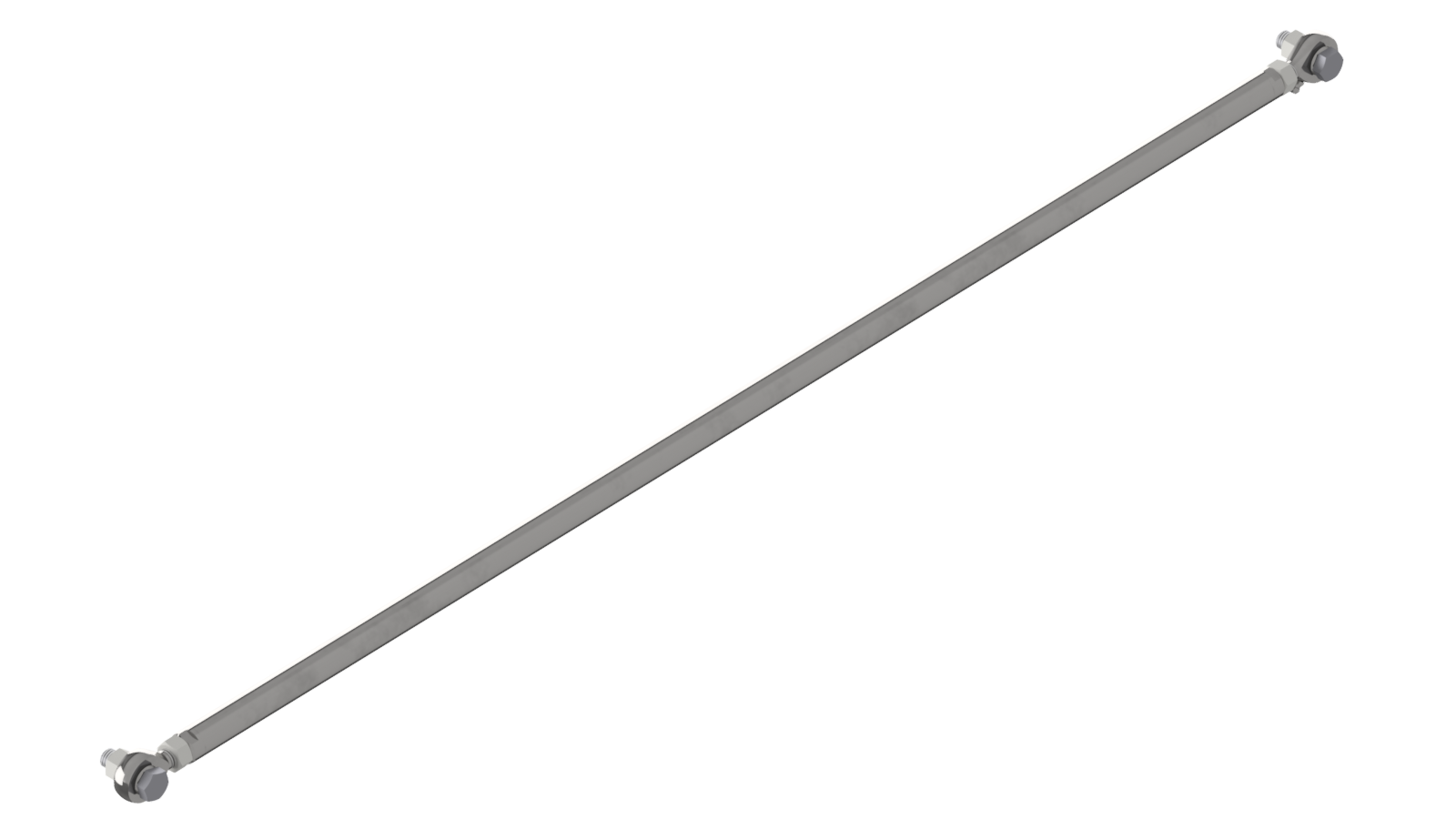

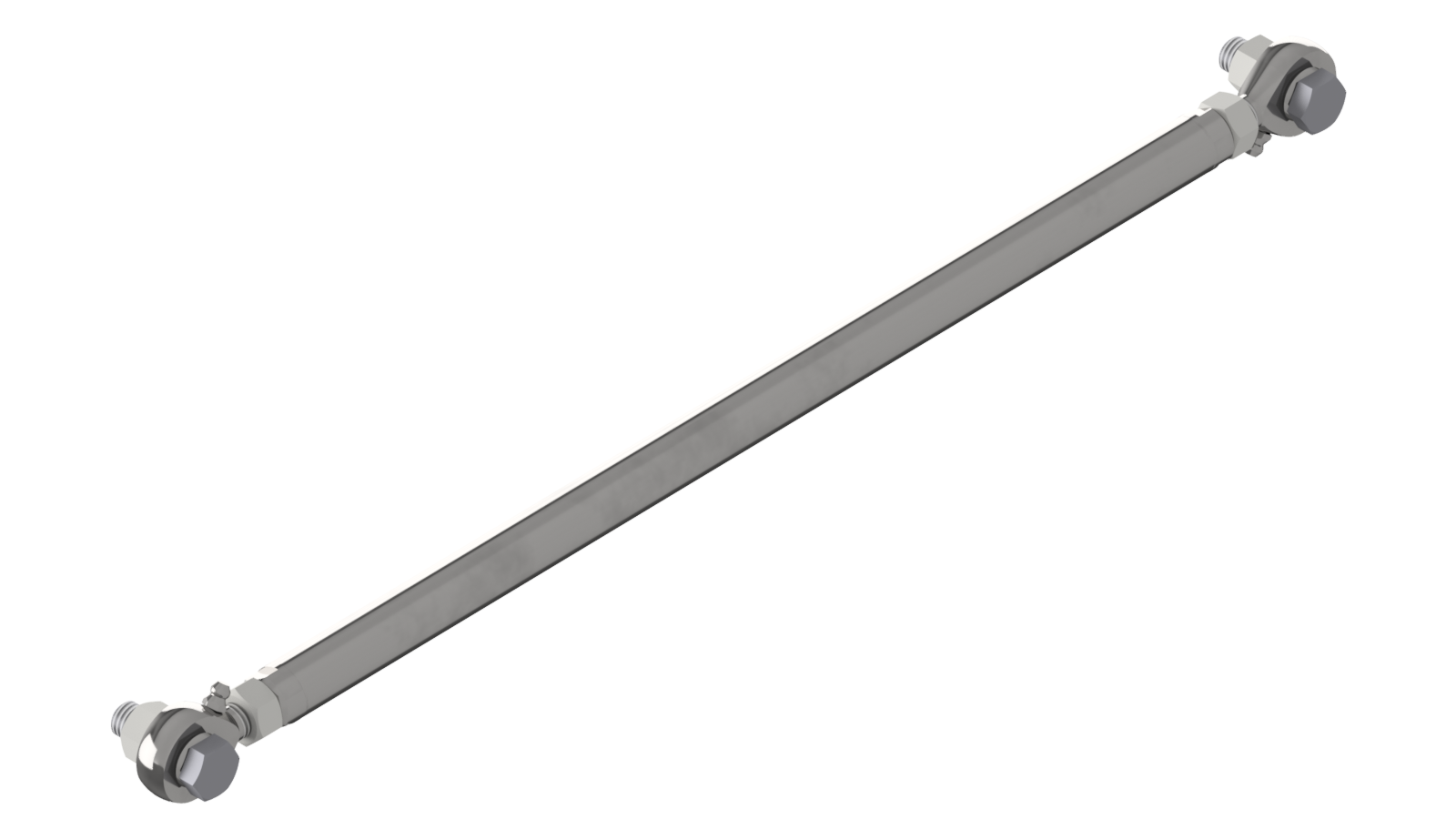

Parallel linkage rod long with fasteners:

o1x linkage rod complete





VRKT2YYYYY00007

VRKT2•••NC

VRKT3YYYYY00007

VRKT3•••NC

VRKT5YYYYY00007

VRKT5•••NC

Parallel linkage rod short with fasteners:

o1x linkage rod complete





VRKT2YYYYY00008

VRKT2•••NC

VRKT3YYYYY00008

VRKT3•••NC

VRKT5YYYYY00008

VRKT5•••NC

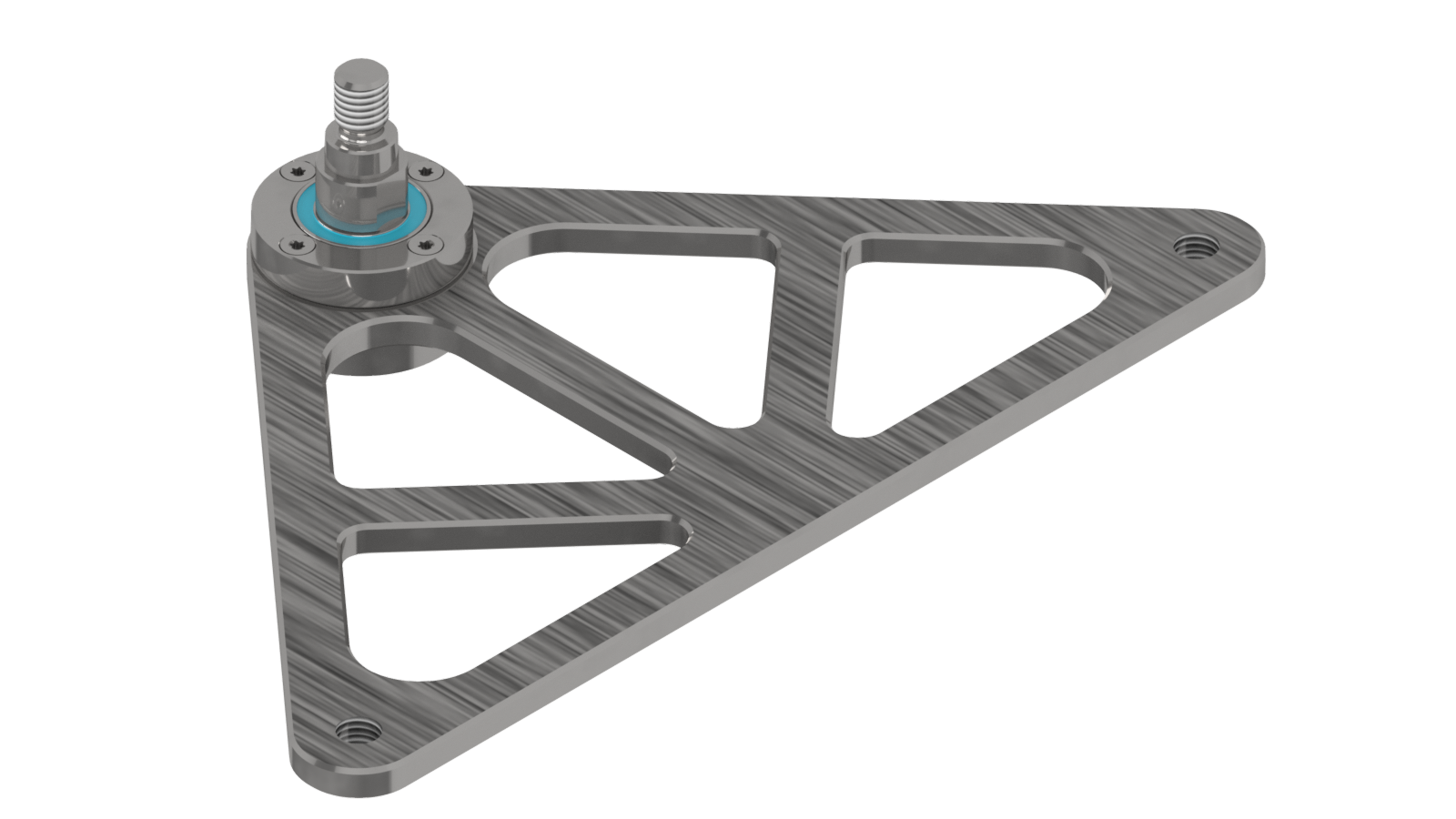

Lever parallel linkage with bearings:

o1x lever with shaft and bearings





VRKTXYYYYY00009

All Lexium T robots

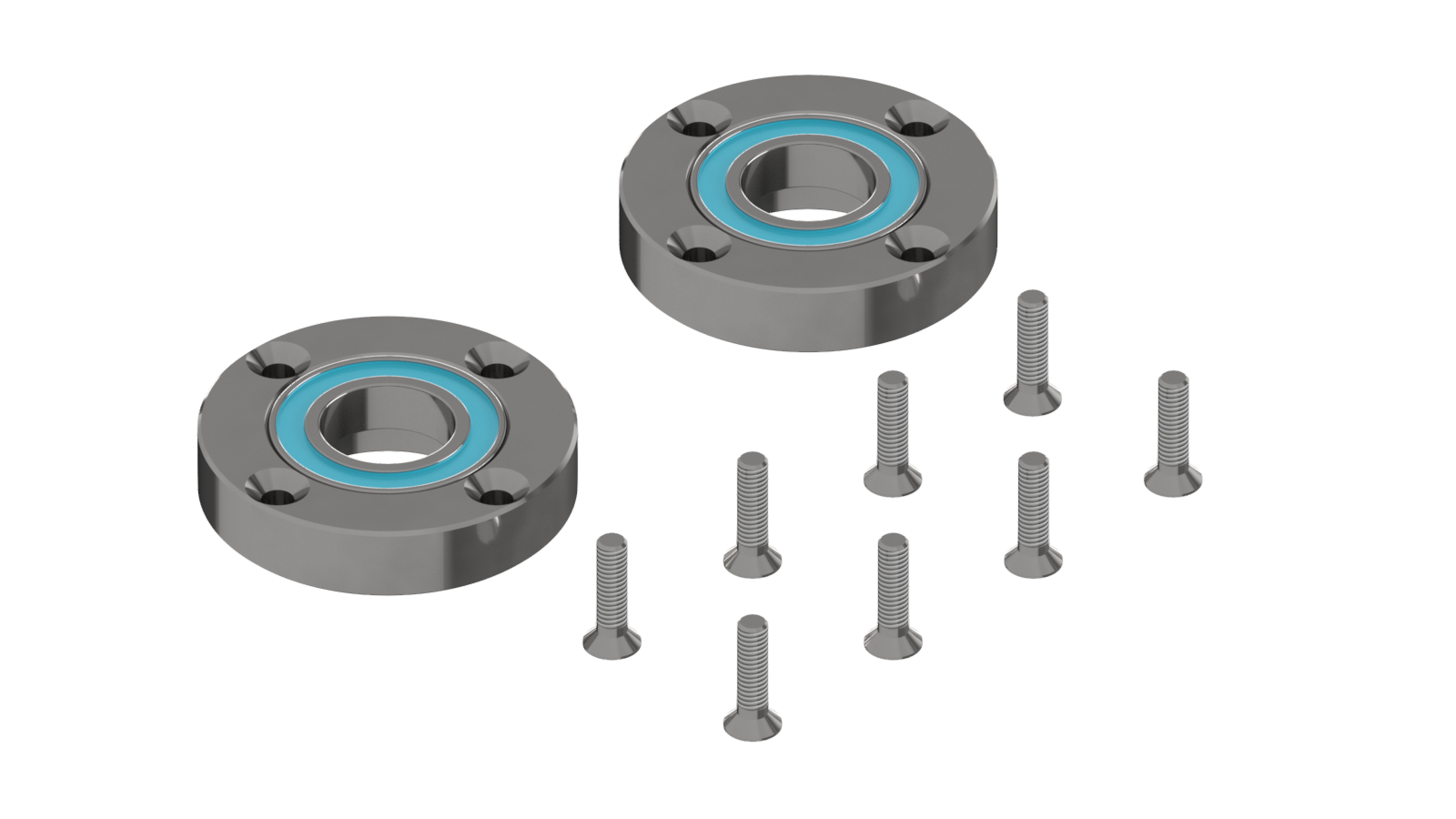

Bearing parallel linkage:

o2x shell with mounted bearings

o8x screw for shell





VRKTXYYYYY00010

All Lexium T robots

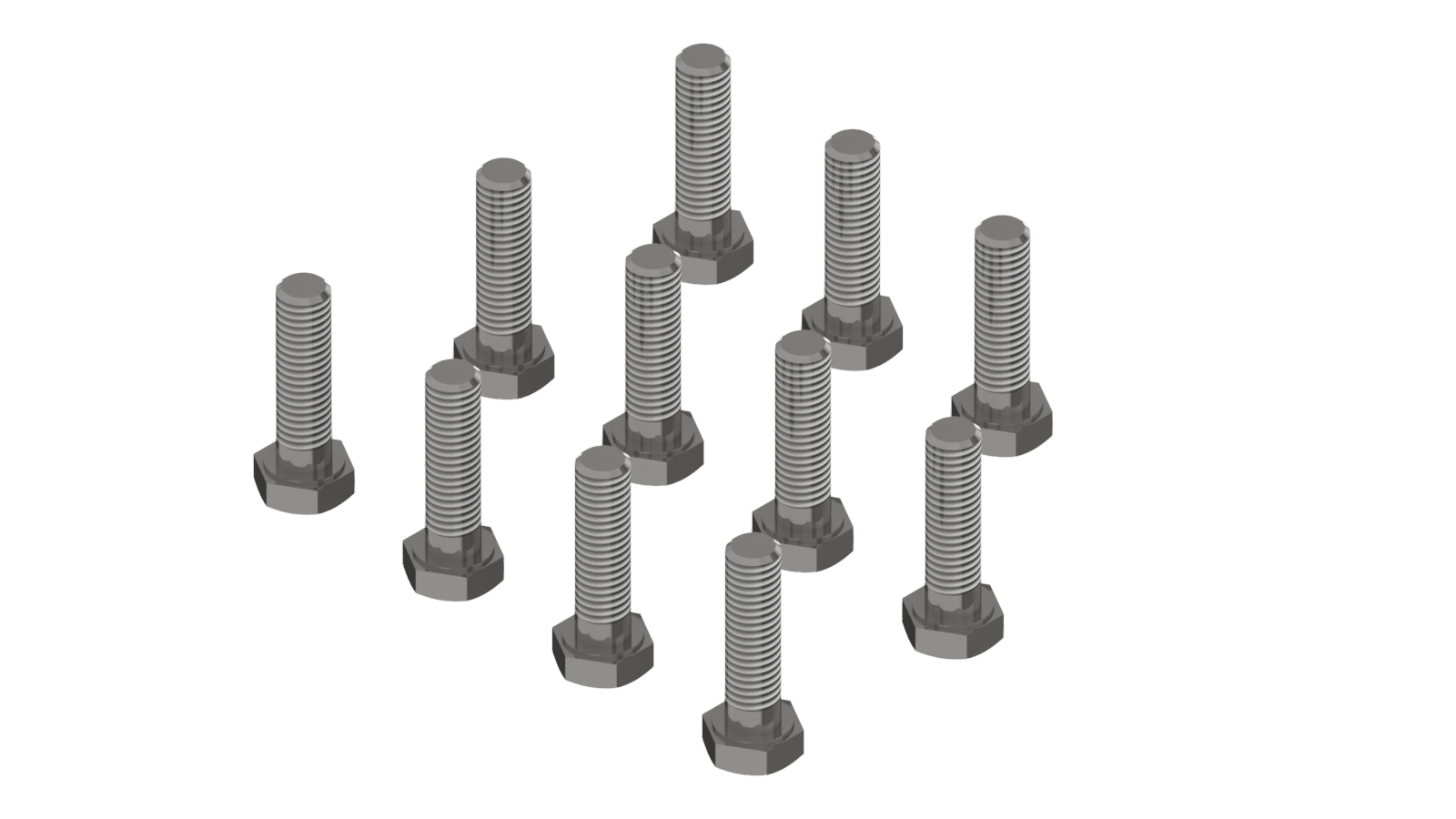

Set fasteners upper arm:

o11x screw upper arm





VRKTXYYYYY00011

All Lexium T robots

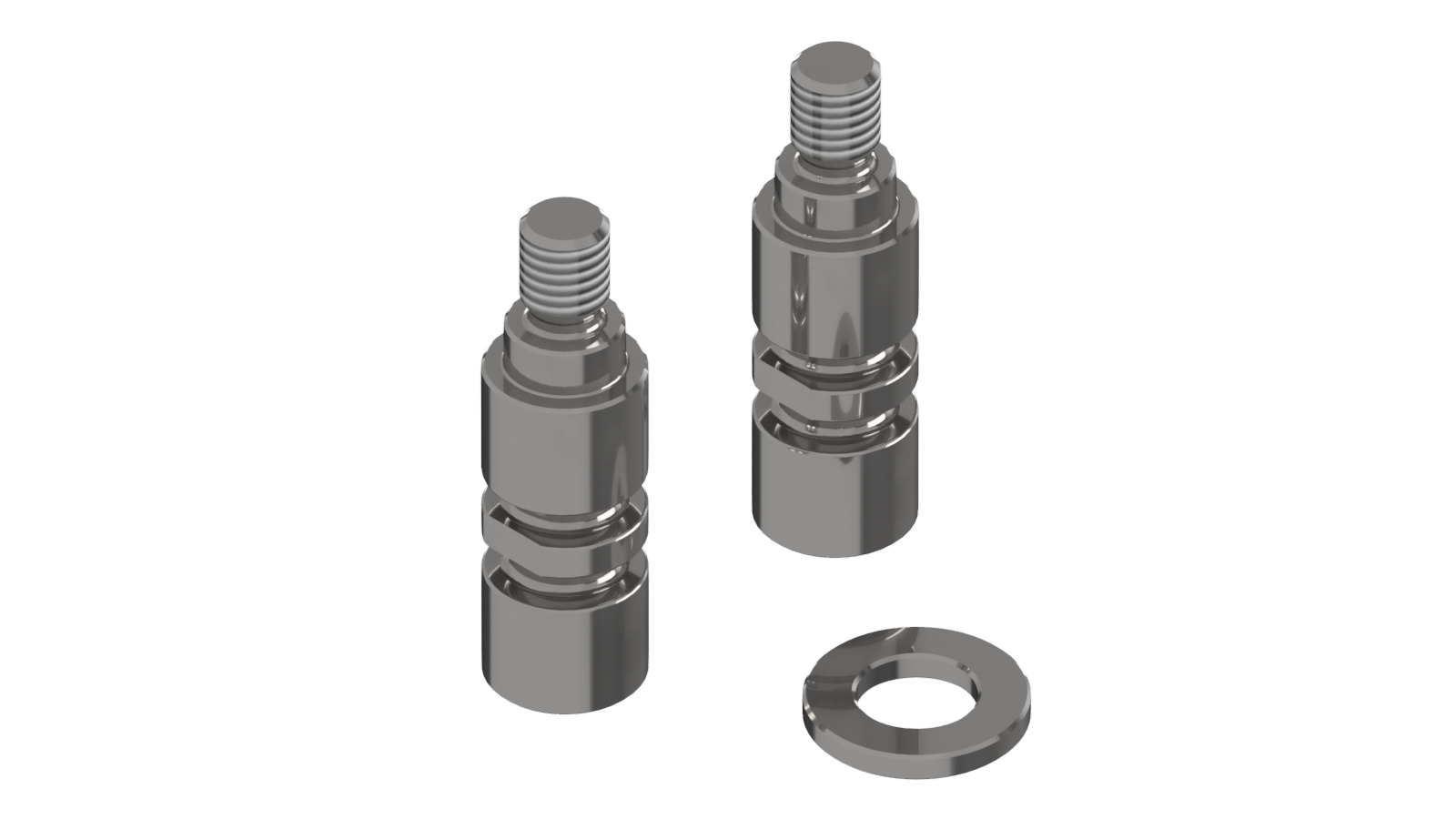

Set of mounting shafts lower arm:

o2x mounting shaft lower arm

o1x distance ring





VRKTXYYYYY00012

All Lexium T robots

PacDrive motor for main axis, MH3:

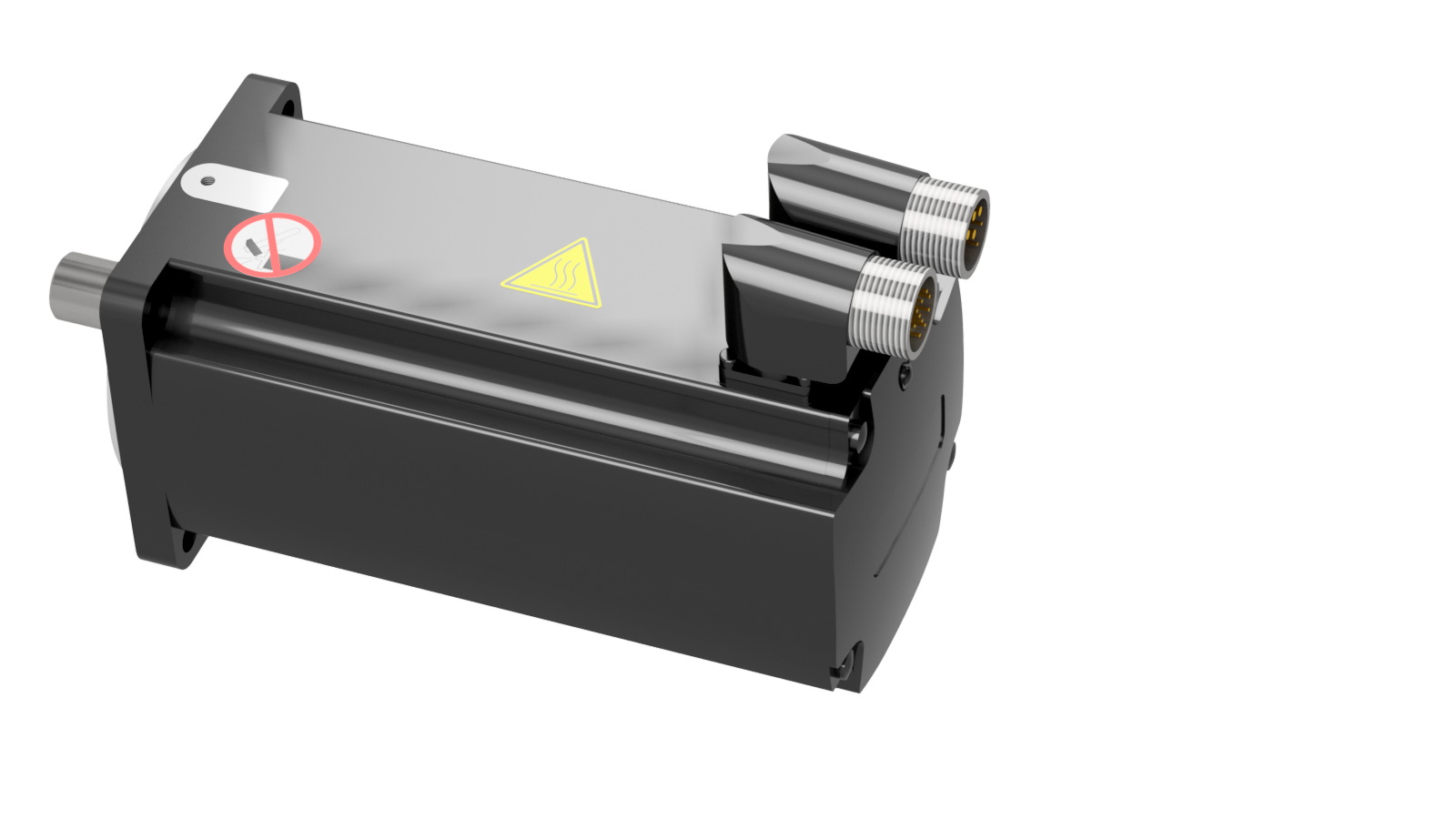

o1x motor





MH31002P02F2200

VRKT•M0•NC

PacDrive motor for main axis, MH3:

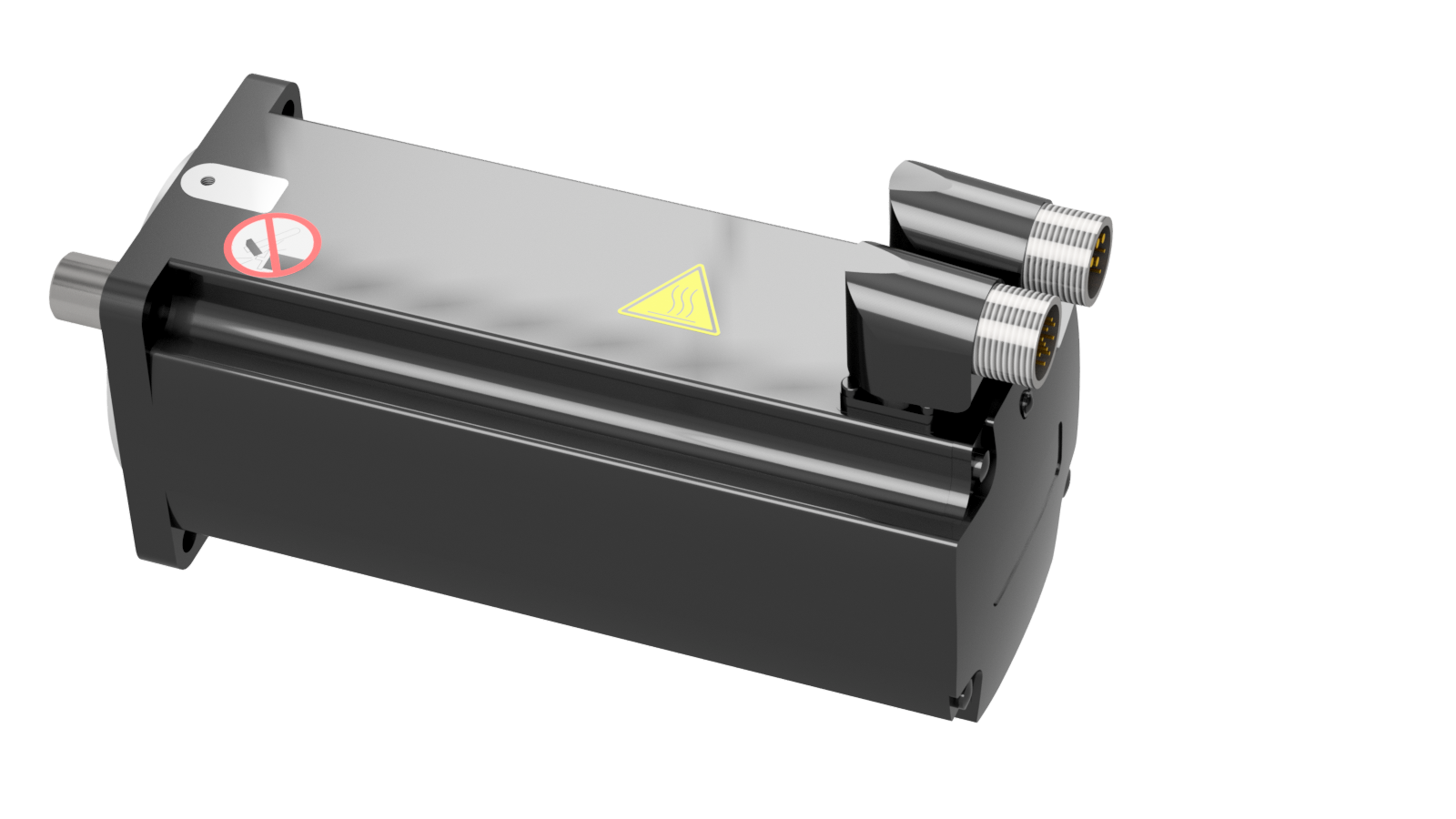

o1x motor





MH31003P02F2200

VRKT•M1•NC

PacDrive motor for main axis, Lexium 62 ILM:

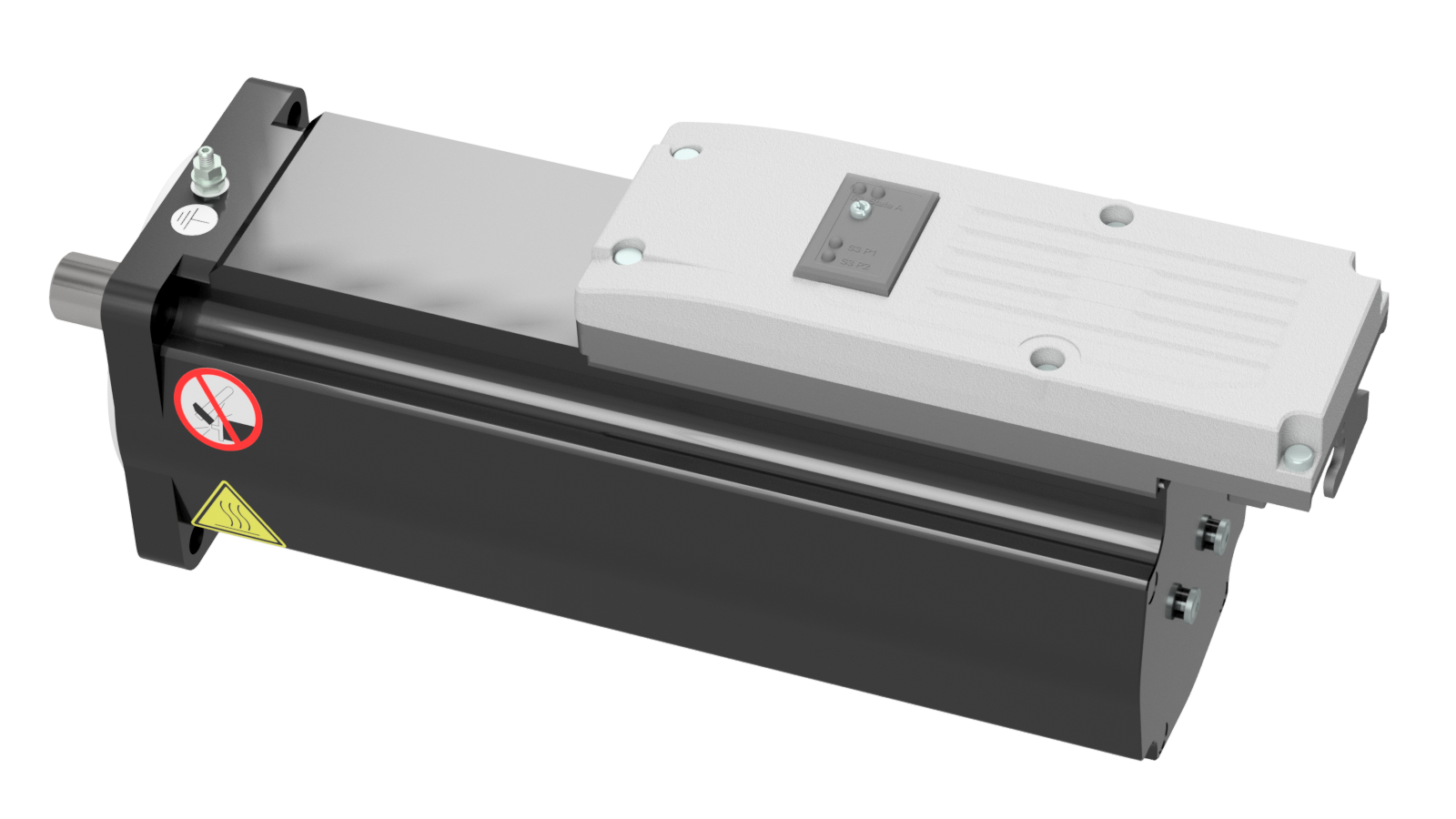

o1x motor





ILM1003P02F0000

VRKT•L••NC
