1

Verify that the short rod shows no visible signs of transport damage.

NOTE: If there are visible signs of transport damage, then replace the parts.

2

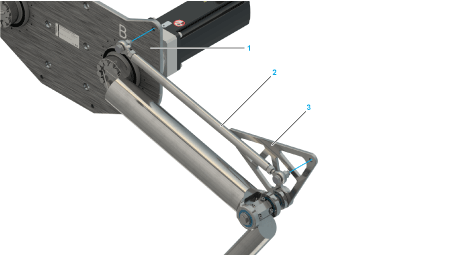

Fasten one end of the short rod (1) to the mounting plate (2) and the other end to the lever parallel linkage (3).

Tightening torque: 56 Nm (496 lbf-in)

3

Verify the position of the lever parallel linkage.

1

Verify that the long rod shows no visible signs of transport damage.

NOTE: If there are visible signs of transport damage, then replace the parts.

2

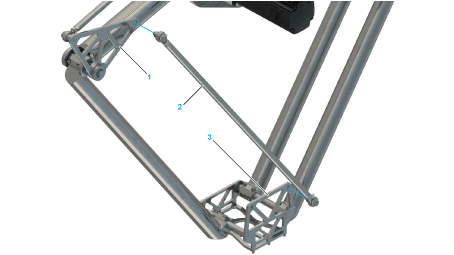

Fasten one end of the long rod (2) to the lever parallel linkage (1) and the other end to the parallel plate (3).

Tightening torque: 56 Nm (496 lbf-in)

3

Verify the position of the parallel plate.
