FB_VisuDiagTableControl - Functional Description

Overview





Functional Description

This function block is used to control the display of the visualization DiagTable provided with this library.

The visualization provides two parameters (i_stVisuInputs, q_stVisuOutputs) which can be directly assigned with the corresponding interface parameters of the function block.

The function block must be called cyclically in your application. It is a good practice to call it in a separate task with low priority and an interval greater or equal than 50 ms.

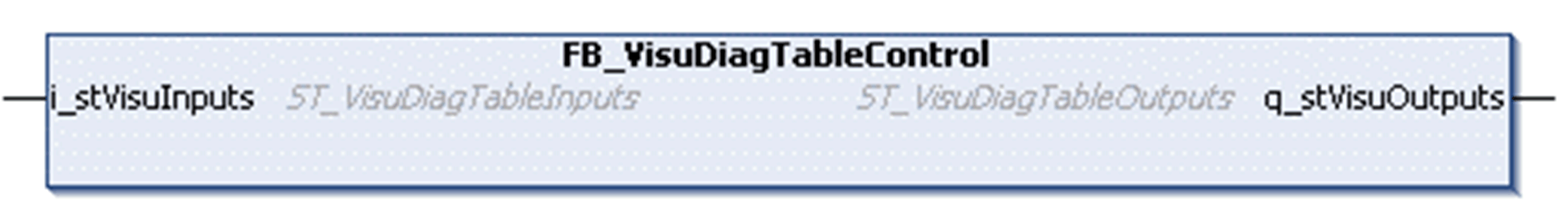

Interface

The elements of ST_VisuDiagTableInputs are initialized as follows:

ostFilteroptions:

oxInfos := TRUE

oxWarnings := TRUE

oxErrors := TRUE

oxSourceFbGetDiag := TRUE

oxSourceMotionKernel := TRUE
